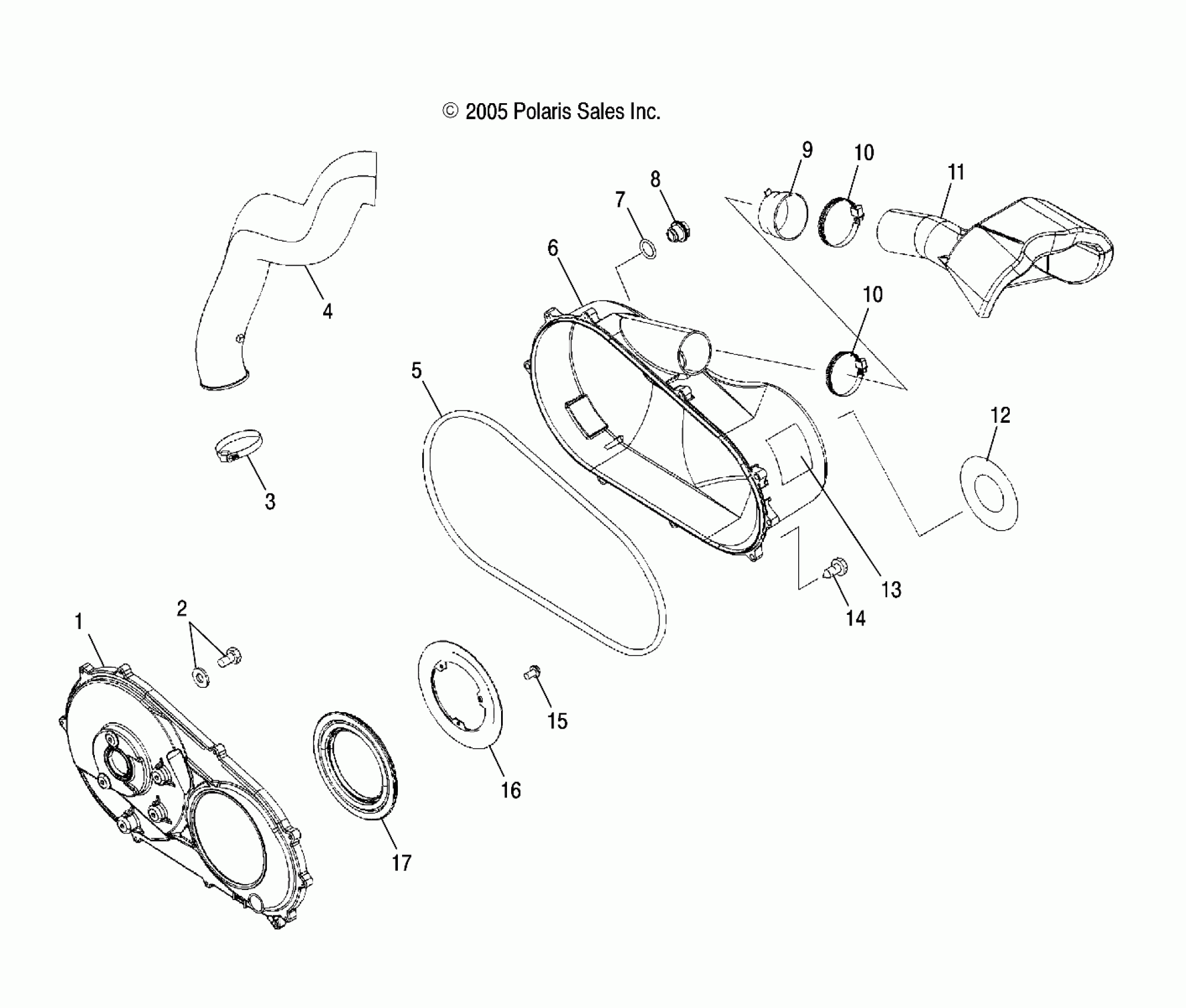

Polaris SPORTSMAN 450 - A07MH46AA/AZ CLUTCH COVER - A07MH46AA/AZ (4999200059920005C07) Diagram

Kit, Inner Clutch Cover [Incl. 14]

2201954

$169.99

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.56

Clamp, Narrow Band

7080511

$4.76

Duct, Clutch Air Inlet [If built after 7/01/06]

5436958

$61.74

Duct, Clutch Air Inlet [If built before 7/01/06]

5436455

$61.74

Seal, Cover, Clutch, Outer [If built before 10/17/06]

5521738

$44.51

Seal, Cover, Clutch, Outer [If built after 10/17/06]

5521578

$44.51

Asm., Clutch Cover, Outer

2633262

$186.17

Asm., Clutch Cover, Outer [Incl. 7,8 and Cover]

2633262

$186.17

O RING-.364X.504X.07

5410542

$4.84

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

BOOT, DUCT

5412636

$24.27

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

Duct, Clutch Outlet [If built after 7/01/06]

5436952

Unavailable

Duct, Clutch Outlet [If built before 7/01/06]

5435235

Unavailable

DECAL, "AUTOMATIC TRANSMISSION"

7172746

Unavailable

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

SCREW

7512094

$1.59

Asm., Screw and Washer

3084205

$3.97

BRACKET, CLUTCH, SEAL

5242046

$36.41

Seal, Cover Case

5412637

$44.51
