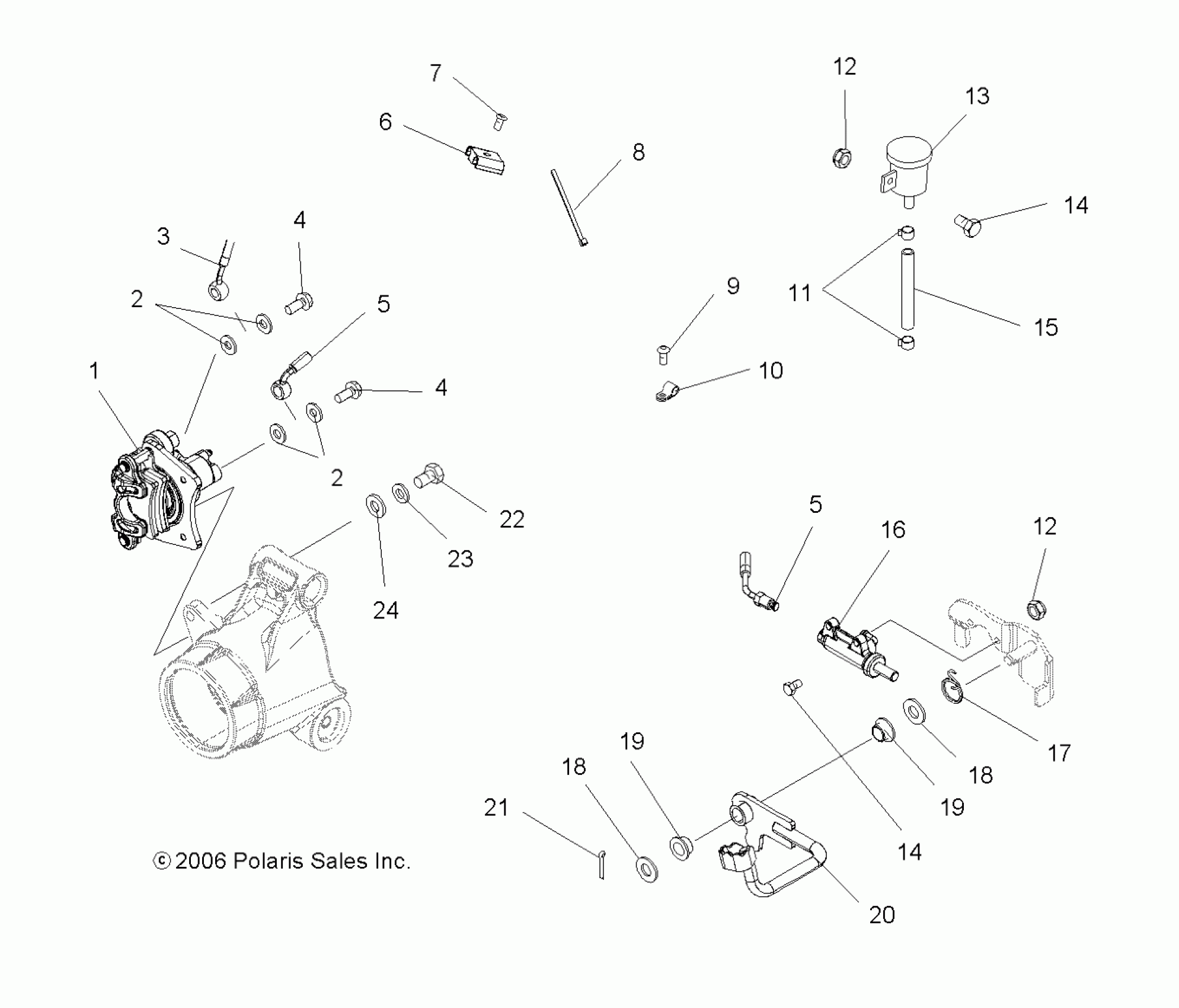

Polaris SPORTSMAN 450 - A07MH46AA/AZ BRAKE, FOOTand FOOT PEDAL - A07MH46AA/AZ (49ATVBRAKERRSP450) Diagram

#

Description
Price

-

Kit, Brake Line, Rear [Incl. 3]

2202660

$109.99

-

Kit, Brake Line, Rear [Incl. 5]

2202708

$93.08

1

Asm., Caliper

1911075

$288.87

2

Seal [If built after 9/25/06]

5413212

$4.84

2

Seal [If built before 9/25/06]

5410988

$4.84

2

Seal [If built after 9/25/06]

5413212

$4.84

2

Seal [If built before 9/25/06]

5410988

$4.84

3

Line, Brake, Caliper, Rear

1910760

$89.03

4

BOLT, BANJO

1910499

$5.56

4

BOLT, BANJO

1910499

$5.56

5

Kit, Line, Rear Brake [Incl. 2,4,5]

2202708

$93.08

5

Kit, Line, Rear Brake [Incl. 2,4,5]

2202708

$93.08

6

CLIP, RETAINING

7670126

$4.76

7

Screw

7517756

$1.19

8

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

9

SCREW

7512024

$4.76

10

CLAMP, CABLE

7080499

$5.56

11

HOSE CLAMP, RED

7080003

$1.19

12

NUT, NYLOK, FLANGED

7542153

$1.59

12

NUT, NYLOK, FLANGED

7542153

$1.59

13

Asm., Reservoir, Brake, Rear

1930854

$36.41

14

Bolt

7512247

Unavailable

14

Bolt

7512247

Unavailable

15

Hose, Reservoir

1910315

$14.51

16

Asm., Master Cylinder, Brake, Rear [If built before 7/24/06]

1910790

$174.03

16

Asm., Master Cylinder, Brake, Rear [If built after 7/24/06]

1911113

$174.03

17

SPRING-TORSION,BRAKE

7041750

$8.89

18

WASHER

7555919

$4.99

18

WASHER

7555919

$4.99

19

BUSHING, PIVOT, PEDAL

5433189

$3.97

19

BUSHING, PIVOT, PEDAL

5433189

$3.97

20

Pedal, Brake, Black

1911047-067

$53.17

21

PIN, COTTER

7661401

$0.79

22

SCREW

7512457

$3.97

23

Washer, Spring Lock

7552603

$0.79

24

WASHER, FLAT

7556188

$3.17
