Partiron

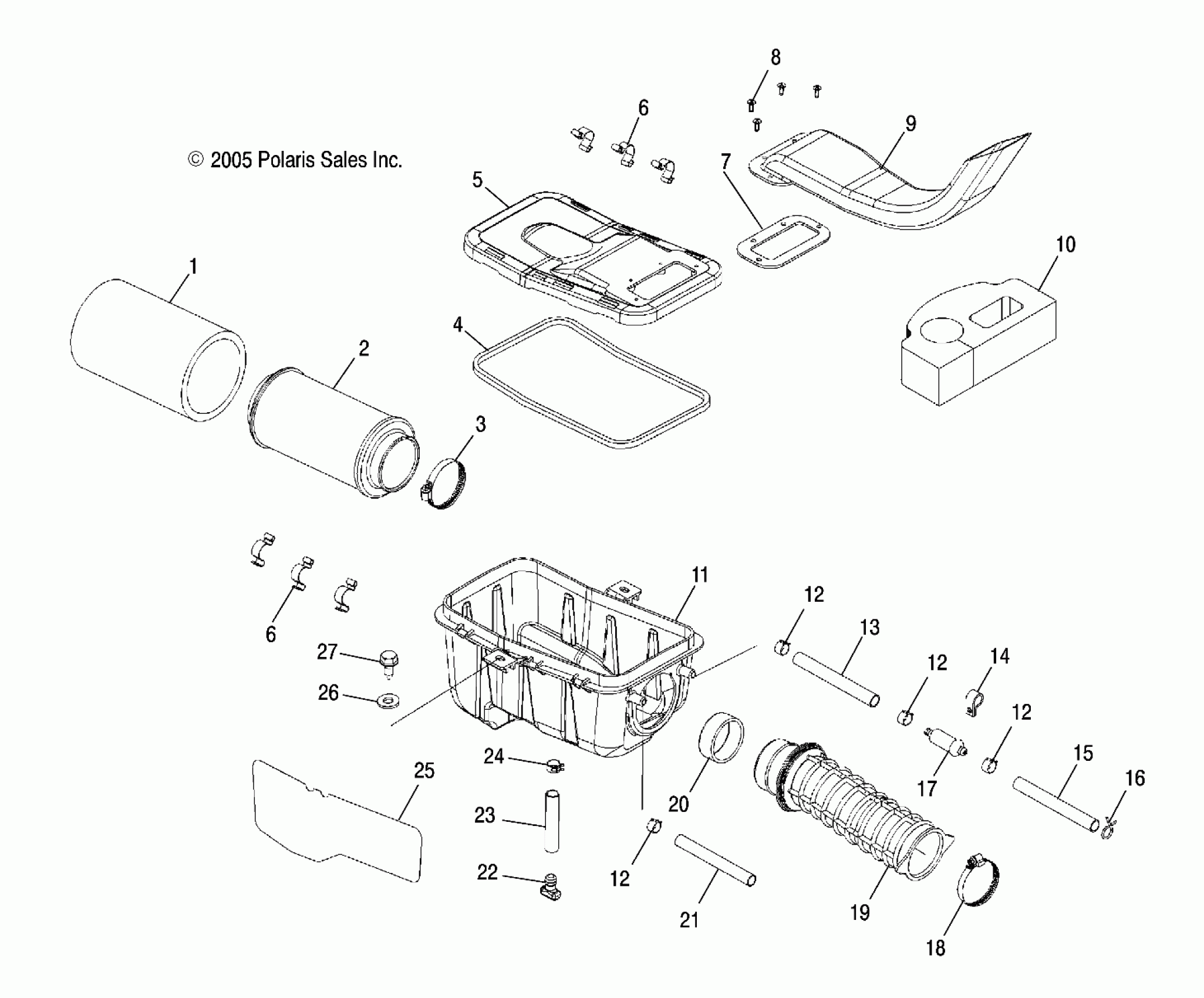

Polaris SPORTSMAN 450 - A07MH46AA/AZ AIR BOX - A07MH46AA/AZ (4999200059920005A13) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.99

2

Filter, Air

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Seal, Cover [If built after 4/02/07]

5812829

$27.02

4

Seal, Cover [If built before 4/02/07]

5811482

Unavailable

5

Cover, Air Box [If built before 8/21/06]

5432868

$51.99

5

Asm., Cover/Seal [If built after 8/21/06][Incl. 4]

1203567

Unavailable

6

CLIP-AIR BOX

5242044

$9.59

6

CLIP-AIR BOX

5242044

$9.59

7

Gasket, Intake

5411422

$6.63

8

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

9

Duct, Air Inlet [If built before 7/01/06]

5433293

$69.99

9

Duct, Air Inlet [If built after 7/01/06]

5436937

$69.99

10

Seal, Foam

5811626

$31.99

11

Box, Air

5433387

$127.99

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

13

Line, Breather

8450073-600

Unavailable

14

P-Clamp

7080913

$5.59

15

Hose, Breather

5413104

Unavailable

16

Clamp, Hose, Spring

7080694

$6.53

17

Filter, Breather

2530029

$6.39

18

Clamp, Narrow Band

7080511

$4.79

19

Boot, Carburetor

5412561

$47.99

20

Sleeve, Carburetor, Inner

5433847

$13.59

21

Line, Breather

5413003

Unavailable

22

Plug, Trap [If built after 9/04/06]

5435299

$6.39

22

Plug, Trap [If built before 9/04/06]

5432377

Unavailable

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080650

$3.99

25

Foil

5813042

$19.99

26

Washer, Flat

7558301

$1.49

27

Screw

7515179

$2.39
