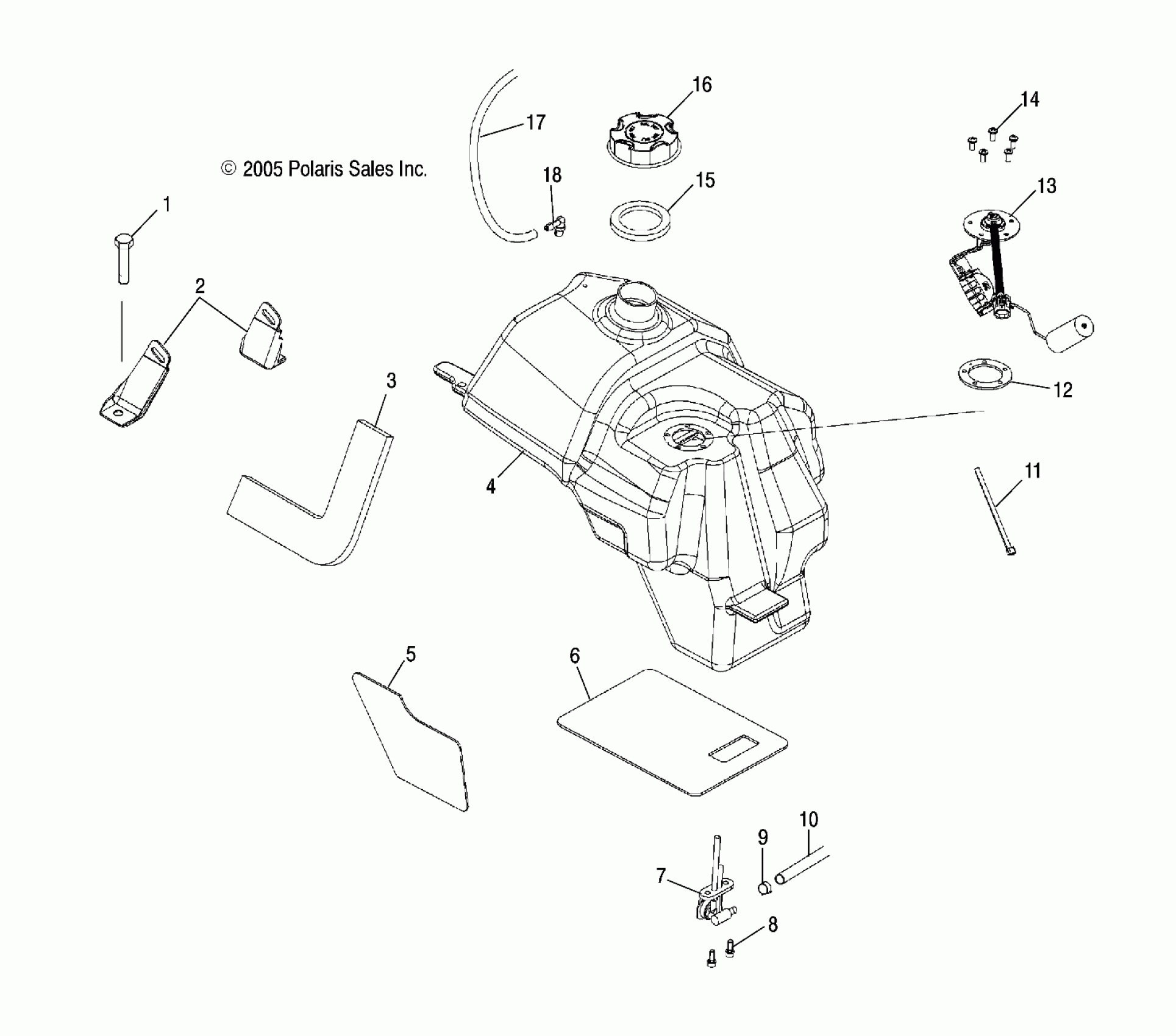

Polaris SPORTSMAN 450 - A06MH46AA FUEL SYSTEM - A06MH46 ALL OPTIONS (4999200099920009A14) Diagram

#

Description
Price

1

Screw

7515179

$2.39

2

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

2

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

3

SEAL, FOAM

5812265

$27.99

4

Asm., Fuel Tank w/Sender [Incl. 5-7,12-14]

2520556

Unavailable

5

Foil

5812004

Unavailable

6

Foil

5812005

$19.30

7

Valve, Fuel, On/Off/Reserve

7052331

$35.99

8

Screw

7515136

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

10

Line, Fuel

8450103

Unavailable

11

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

12

Gasket

5810858

$74.99

13

Sender, Fuel

2410554

Unavailable

14

Screw

7518257

$3.79

15

GASKET

5812123

$5.65

16

Cap, Gas Tank

5433687

$20.22

17

LINE, FUEL

8360009-600

Unavailable

18

Vent, Tank

5431053

$19.99
