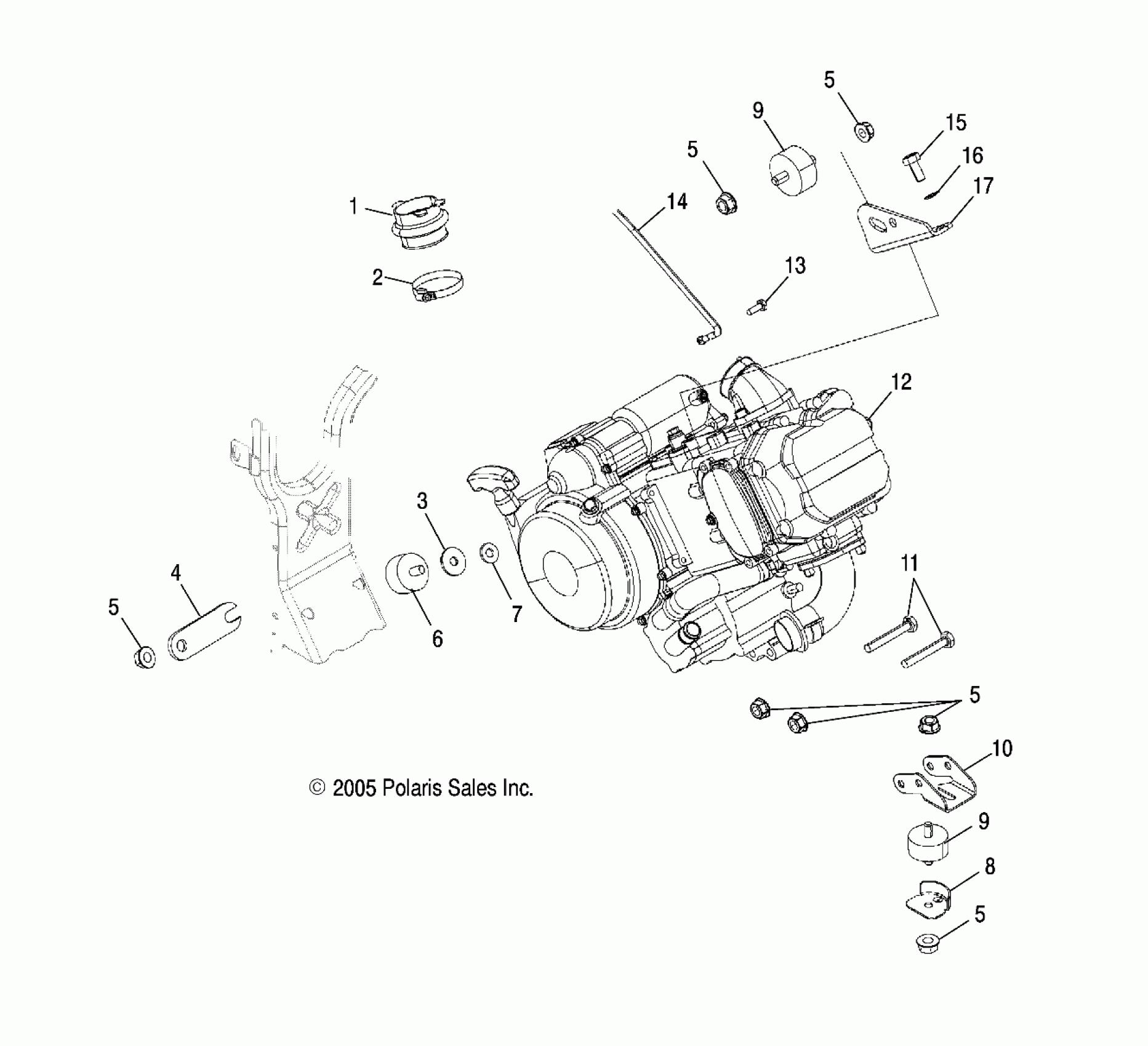

Polaris SPORTSMAN 450 - A06MH46AA ENGINE MOUNTING - A06MH46 ALL OPTIONS (4999200059920005A11) Diagram

BOOT, CLUTCH INTAKE

5412487

Unavailable

Clamp, Narrow Band

7080511

$4.79

WASHER, FLAT

7555815

$3.99

STRAP, FRAME SUPPORT, BLACK

5224658-067

Unavailable

NUT

7547108

$4.79

NUT

7547108

$4.79

NUT

7547108

$4.79

NUT

7547108

$4.79

NUT

7547108

$4.79

Mount, Rubber, Front

3110046

Unavailable

Washer, Flat

7555797

$3.99

BRACKET, TORQUE STOP

5245043

$15.83

Mount, Rubber, Top

3110044

Unavailable

Mount, Rubber, Top

3110044

Unavailable

Mount, Engine, Front [If built before 7/25/05]

5241150

Unavailable

Mount, Engine, Front [If built after 7/25/05]

5249873

$31.35

BOLT

7518415

$4.79

Engine, Short Block [EH460PLE010] NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required

3089933

Unavailable

ASM., BOLT AND WASHER

3082038

$3.99

CABLE, FRAME/ENGINE

4010895

$27.99

BOLT

7512315

$4.79

WASHER, SPRING LOCK

7552901

$1.49

Mount, Engine, Top

5241453

$7.99
