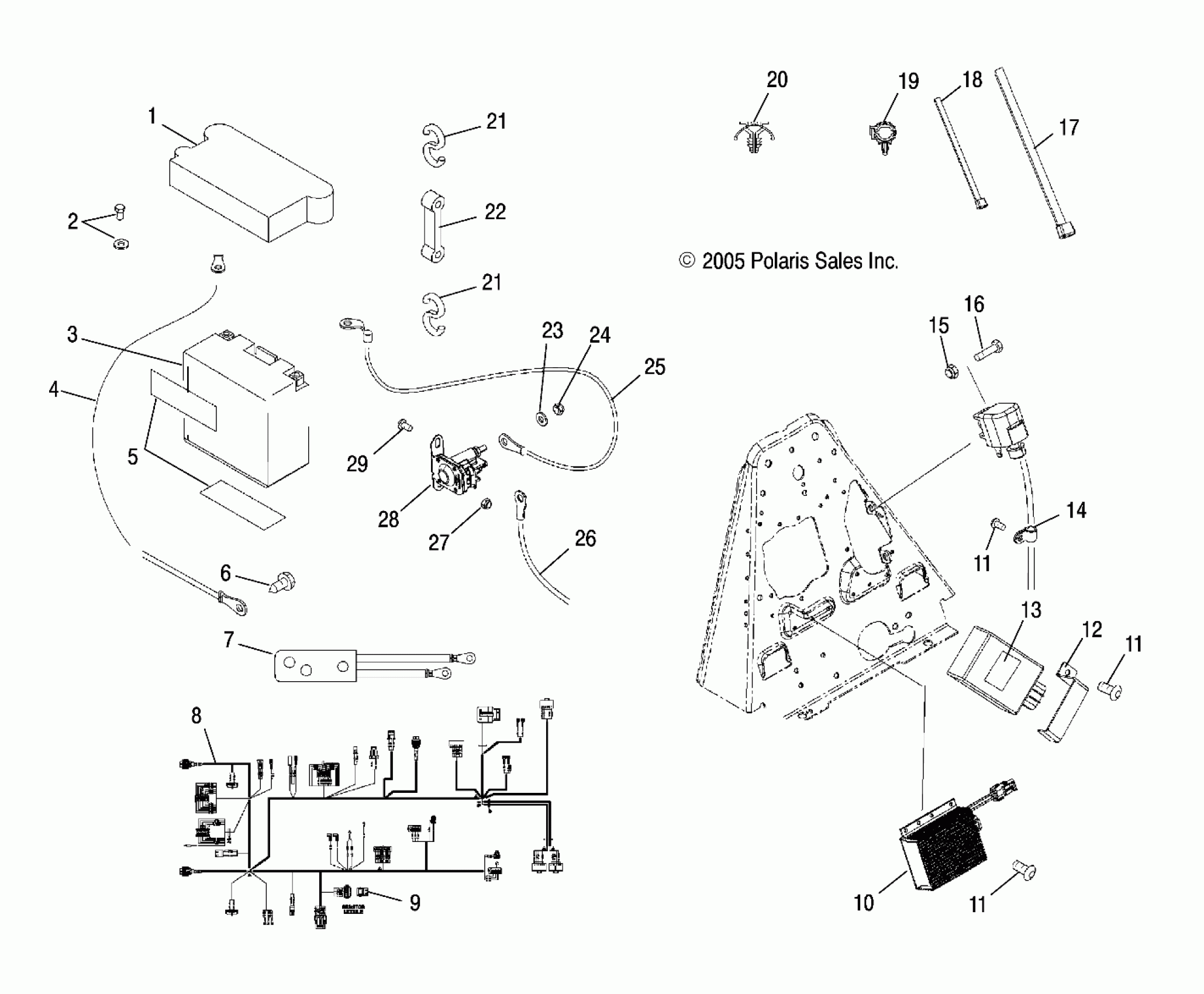

Polaris SPORTSMAN 450 - A06MH46AA ELECTRICAL/TAILLIGHT - A06MH46 ALL OPTIONS (4999200059920005C11) Diagram

#

Description
Price

1

Cover, Battery

5431769

$15.37

2

KIT, BATTERY BOLT

2202848

$4.99

3

BATTERY

4011138

$128.24

4

CABLE, BATTERY/FRAME

4011139

$44.51

5

PAD-BATTERY

5810290

$7.27

6

Bolt

7512232

$1.19

7

Harness, Winch

2410535

$93.08

8

Kit, Fusible Link, .5MM

2202147

$84.99

8

Harness, Main [Incl. 9, Fuse Link Kit]

2410466

Unavailable

9

Kit, Harness, Resistor Module

2204890

$161.49

10

Module, Controller

4011110

$159.99

11

SCREW

7512024

$4.76

11

SCREW

7512024

$4.76

11

SCREW

7512024

$4.76

12

BRACKET, CDI

5246747

$8.08

13

Pad

5810317

Unavailable

14

CLAMP, CABLE

7080960

$4.76

15

Nut, Nylok

7541925

$0.79

16

BOLT

7512007

$3.97

17

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

CLIP, ROSEBUD

4020139

$4.76

20

MOUNT, CABLE TIE

7080965

$7.27

21

Hook, Battery Strap

7010032

$1.59

21

Hook, Battery Strap

7010032

$1.59

22

STRAP, BATTERY HOLDDOWN

5412499

$4.84

23

WASHER, SPRING LOCK

7552801

$1.59

24

Nut, Hex, Jam

7547283

$3.17

25

Cable, Battery/Solenoid

4010094

Unavailable

26

Cable, Solenoid/Starter

4010093

$48.56

27

Nut, Nylok

7518287

$3.17

28

Switch, Magnetic

4011251

$76.89

29

Screw

7512027

$1.19
