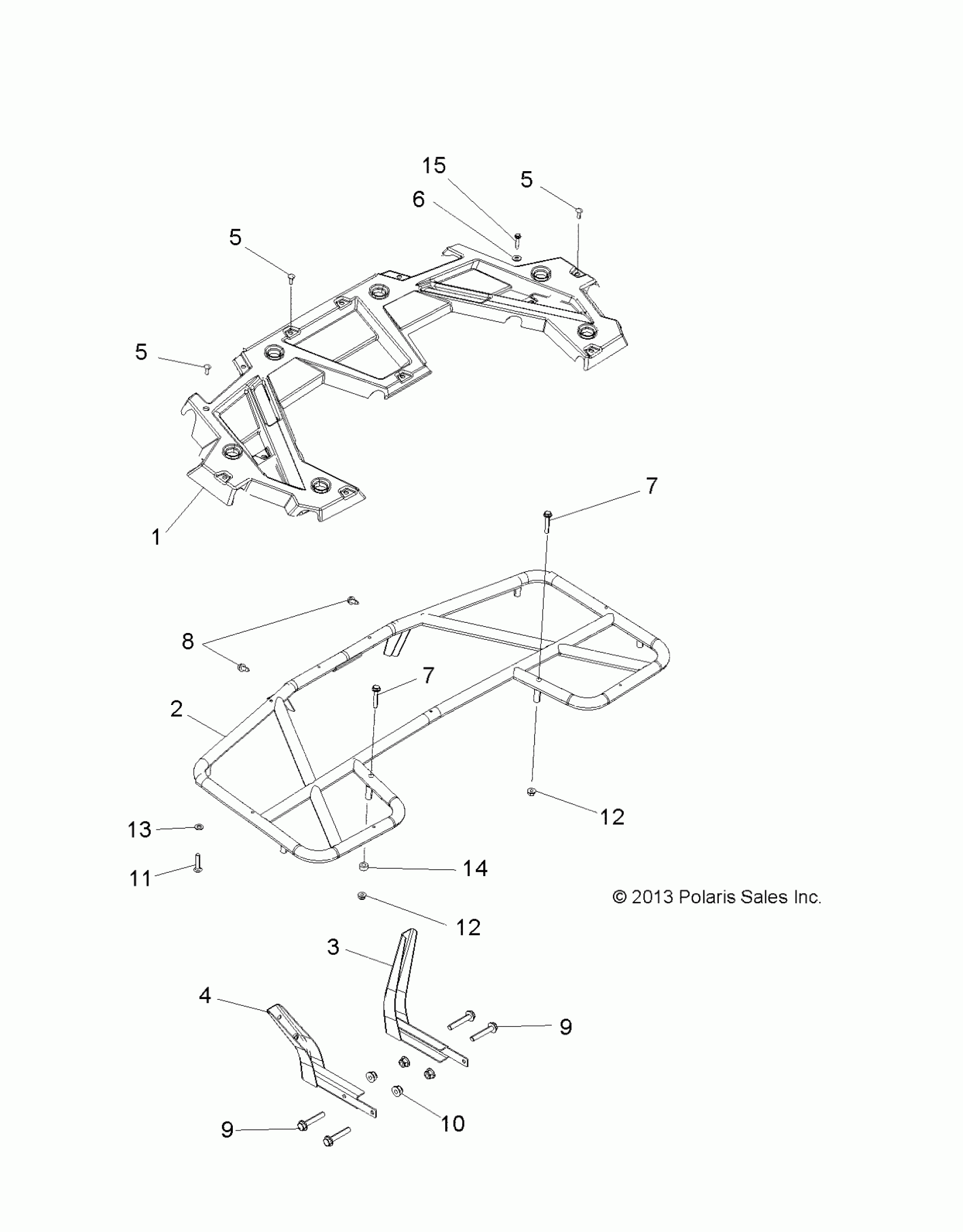

Polaris SPORTSMAN 400 HO 4X4 - A13MH46AF/AX/MS46AX BODY, REAR RACK - A13MS46AX (49ATVRACKMTGRR13SP400) Diagram

#

Description
Price

1

DECAL, WARNING, FRONT/REAR RACK

7172572

Unavailable

1

Decal, Reflector, Red

7174412

$11.32

1

ASM., COVER, RACK, REAR, BLACK [INCL. COVER, WARNING DECAL]

2634895-070

$246.03

2

Rack, Rear, Black

1019359-067

$294.27

3

BRACE, REAR RACK, LH, BLACK

1014666-067

Unavailable

4

BRACE, REAR RACK, RH, BLACK

1014667-067

Unavailable

5

Screw

7518280

$1.19

5

Screw

7518280

$1.19

5

Screw

7518280

$1.19

6

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

7

Screw, Flange

7519873

Unavailable

7

Screw, Flange

7519873

Unavailable

8

SCREW

7515399

$1.19

9

BOLT, FLANGE

7518341

$4.76

9

BOLT, FLANGE

7518341

$4.76

10

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

Screw

7515199

$1.19

12

NUT-M6 FLANGE,NYLOC

7547274

$1.19

12

NUT-M6 FLANGE,NYLOC

7547274

$1.19

13

Washer

7555935

$2.38

14

SPACER-.26X.50X.31

7556318

$2.38

15

SCREW

7512094

$1.59
