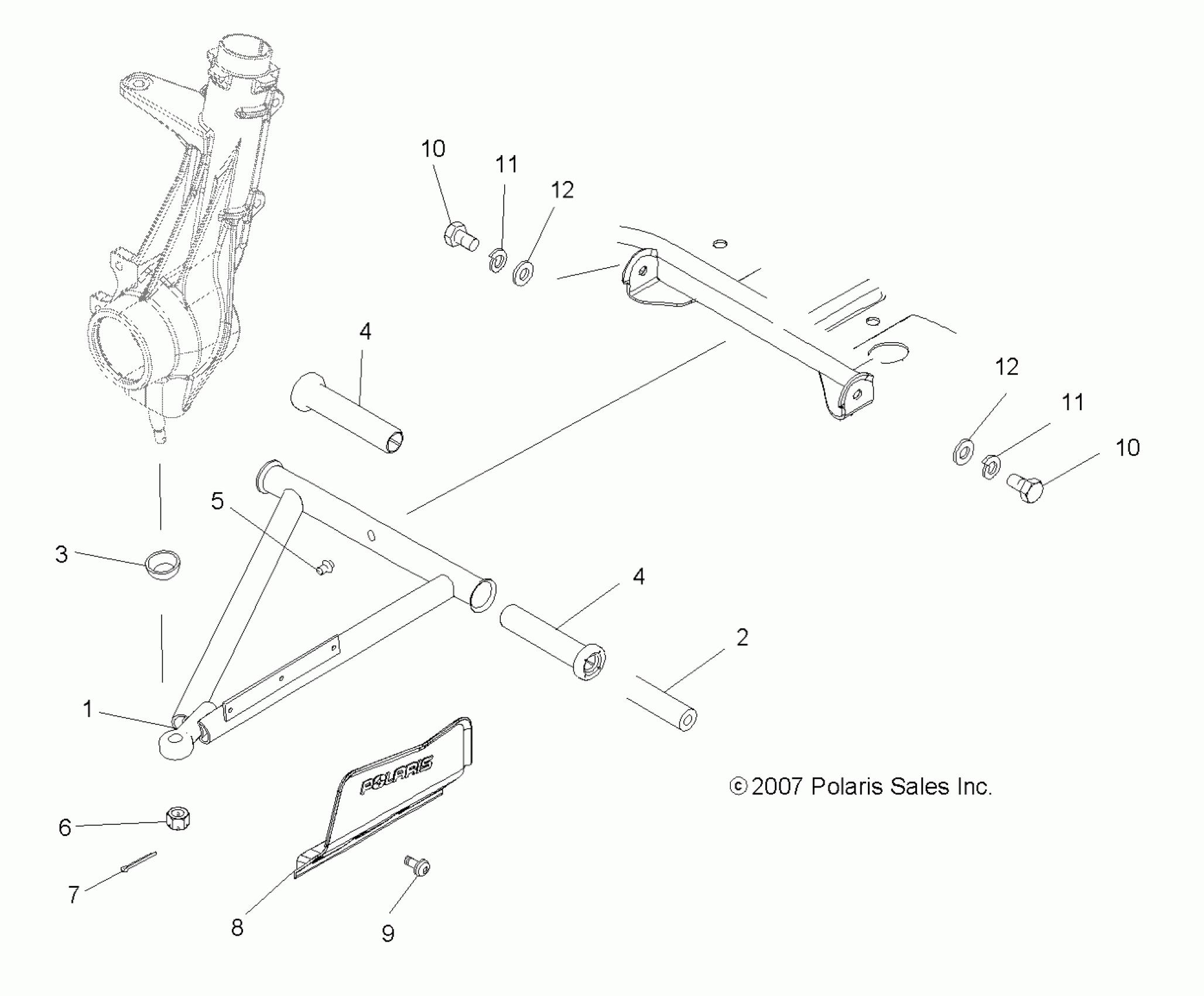

Polaris SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ SUSPENSION, A-ARM and STRUT MOUNTING - A11MH46AX/AZ (49ATVAARM08SP500) Diagram

#

Description
Price

1

Kit, A-Frame, RH [Incl. 2,4,10,11,12]

2202907

$127.99

1

Kit, A-Frame, LH [Incl. 2,4,10,11,12]

2202906

$127.99

2

Shaft, A-Arm

5133806

$30.79

3

BOOT, BALL JOINT, GREASELESS

5412658

$4.79

4

BUSHING, A-ARM, LONG

5436973

$5.19

4

BUSHING, A-ARM, LONG

5436973

$5.19

5

Fitting, Lubrication

7080433

$1.49

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

Pin, Cotter

7661203

$1.49

8

Shield, CV Front, Black, LH

5435028-070

$23.99

8

Shield, CV Front, Black, RH

5435029-070

$23.99

9

Screw

7512084

$1.49

10

Screw

7512492

$1.49

10

Screw

7512492

$1.49

11

Washer, Spring Lock

7552603

$1.49

11

Washer, Spring Lock

7552603

$1.49

12

WSHR-.813X.406X.105-Y

7555832

$2.39

12

WSHR-.813X.406X.105-Y

7555832

$2.39
