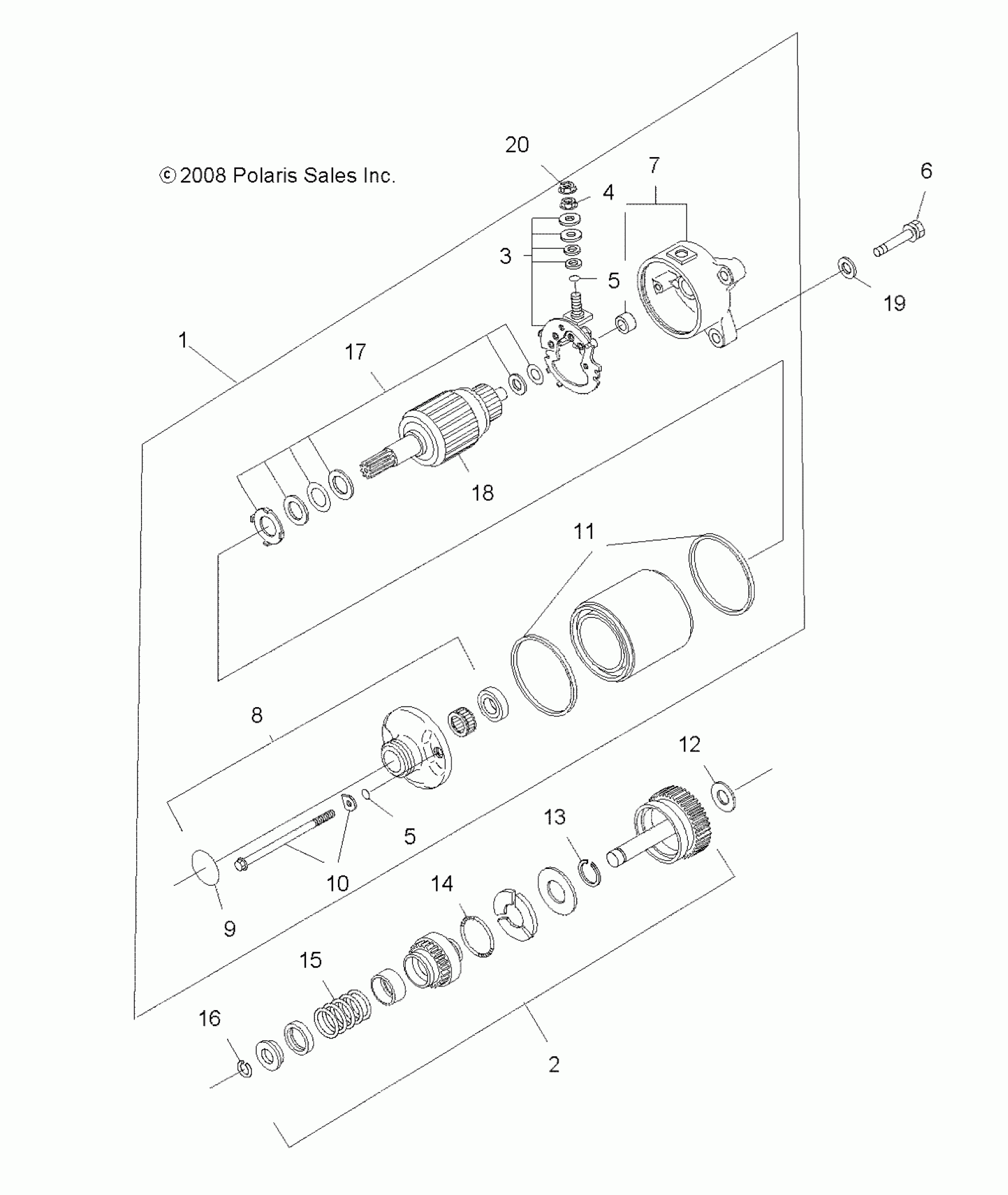

Polaris SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ ENGINE, STARTING SYSTEM - A11MH46AX/AZ (49ATVSTARTER09TB) Diagram

#

Description
Price

1

Motor, Starter, Complete [Incl. 1-5,7-11,17,18]

3090188

$359.99

2

Asm., Gear Shaft [Incl. 13-16]

3087030

Unavailable

3

Set, Brush, Carbon

3088169

$115.99

4

NUT, FLANGE

3083649

$3.99

5

O-RING

3084408

Unavailable

5

O-RING

3084408

Unavailable

6

ASM., BOLT AND WASHER

3082038

$3.99

7

Asm., Cover, Rear

3085034

$91.99

8

Asm., Front Bracket [Incl. 9]

3085033

$137.60

9

O-Ring

3240114

$5.59

10

Asm., Set Bolt [Incl. 5]

3084983

$23.99

11

RING, RUBBER

3084405

Unavailable

12

WASHER

7555908

$3.17

13

CLIP

3084412

$9.59

14

SPRING, WEIGHT

3084411

$15.67

15

SPRING, RETURN

3084410

$2.47

16

CLIP

3084409

$7.19

17

Set, Washer

3084982

Unavailable

18

Asm., Armature

3085353

Unavailable

19

Washer, Flat [Used with Starter Ground Cable]

7558301

$1.49

20

NUT, FLANGE

3083856

$2.39
