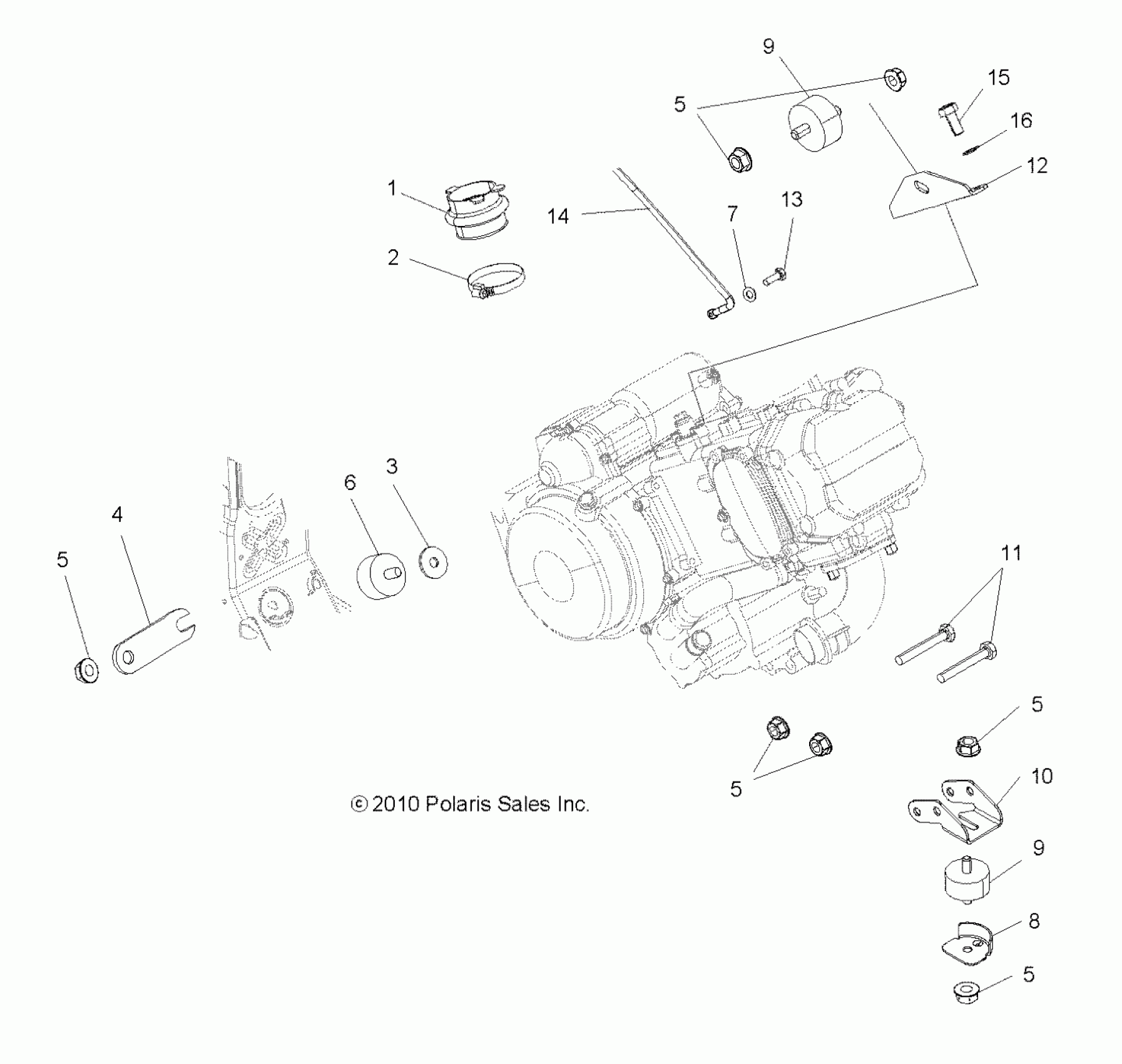

Polaris SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ ENGINE, MOUNTING - A11MH46AX/AZ (49ATVENGINEMTG11SP500) Diagram

#

Description
Price

1

BOOT, CLUTCH INTAKE

5412487

Unavailable

2

Clamp, Narrow Band

7080511

$4.76

3

WASHER, FLAT

7555815

$3.97

4

STRAP, FRAME SUPPORT, BLACK

5224658-067

Unavailable

5

NUT

7547108

$4.76

5

NUT

7547108

$4.76

5

NUT

7547108

$4.76

5

NUT

7547108

$4.76

5

NUT

7547108

$4.76

6

ISOLATOR

3022076

Unavailable

7

Washer, Flat

7558301

$1.19

8

BRACKET, TORQUE STOP

5245043

$17.99

9

ISOLATOR

3022071

$44.51

9

ISOLATOR

3022071

$44.51

10

MOUNT, ENGINE, FRONT

5254430

$72.84

11

BOLT

7518415

$5.22

12

BRACKET, MOUNT, ENGINE, TOP

5242674

Unavailable

13

ASM., BOLT AND WASHER

3082038

$3.97

14

CABLE, FRAME/ENGINE

4010895

Unavailable

15

BOLT

7512315

$4.76

16

WASHER, SPRING LOCK

7552901

$1.19
