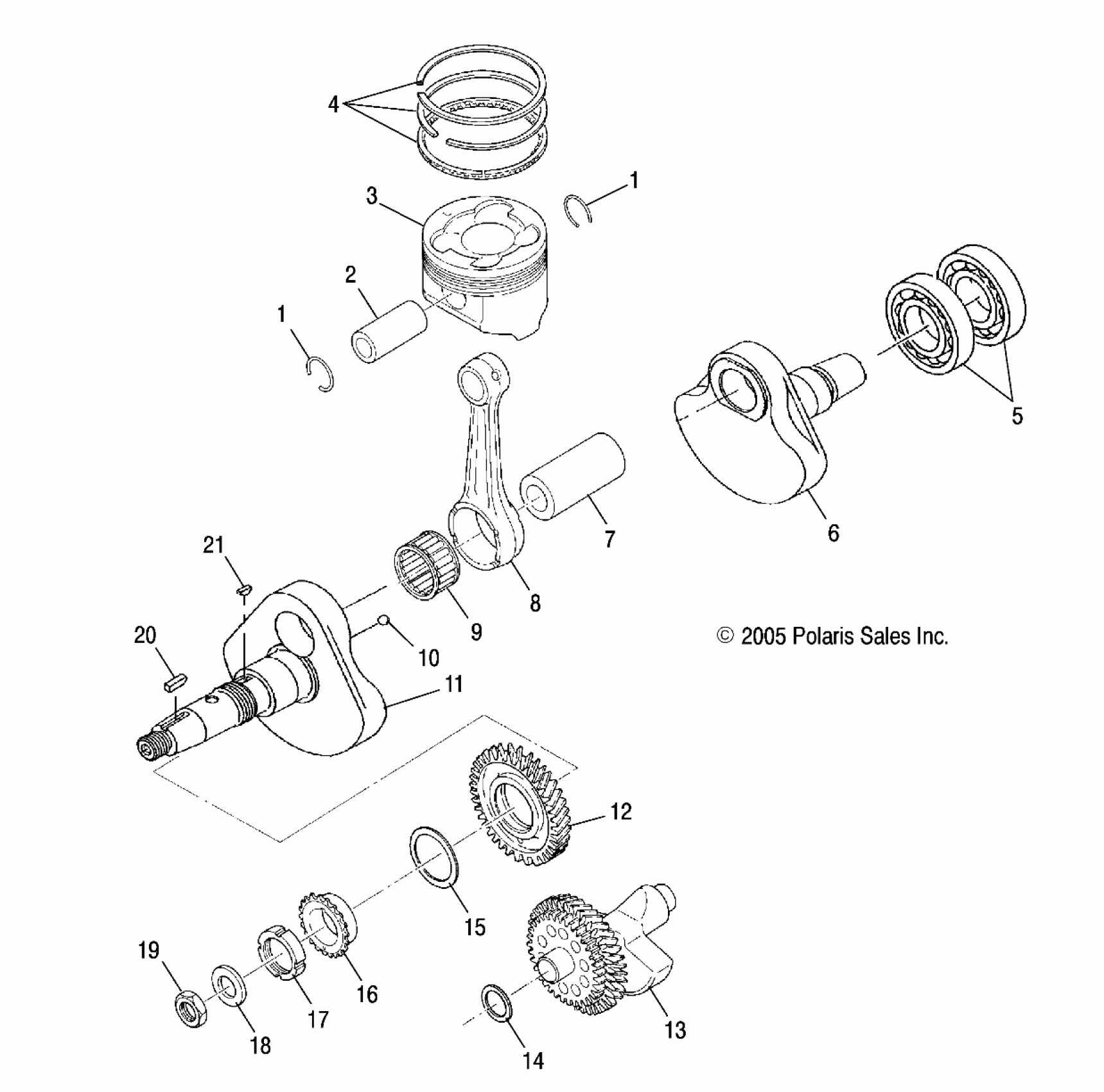

Polaris SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ ENGINE, CRANKSHAFT and PISTON - A11MH46AX/AZ (4999200059920005D06) Diagram

#

Description
Price

1

CLIP

3085534

Unavailable

1

CLIP

3085534

Unavailable

2

PIN, PISTON

-------

Unavailable

3

SET, PISTON, STANDARD [Incl. 1,2]

3087230

Unavailable

3

SET, PISTON, .010 INCH/.25MM O/S [Incl. 1,2]

3087231

Unavailable

3

SET, PISTON, .020 INCH/.50MM O/S [Incl. 1,2]

3087232

Unavailable

4

SET, PISTON, RING, STANDARD

3087233

$63.99

4

SET, PISTON, RING, .010 INCH/.25MM O/S

3087234

$63.99

4

SET, PISTON, RING, .020 INCH/.50MM O/S

3087235

$63.99

5

BEARING, BALL

3085815

$43.99

6

CRANKSHAFT 2

3085812

$690.79

7

Pin, Crank

3087090

$105.22

8

Rod, Connecting

3085813

Unavailable

9

BEARING, LARGE END

3085343

Unavailable

10

BALL, STEEL

3085024

$5.59

11

Asm., Crankshaft [Incl. 6-12]

3089570

Unavailable

11

CRANKSHAFT 1

3089678

$231.99

12

BALANCER, GEAR 1

3089245

Unavailable

13

Shaft, Balancer

3089773

Unavailable

14

SPACER, 0.8

3084895

$6.39

14

SPACER, 1.0

3084896

$6.39

14

SPACER, 1.2

3084897

$6.39

15

SPACER, 0.6

3240088

$10.39

15

SPACER, 0.8

3084892

$12.79

15

SPACER, 1.0

3084893

$19.99

15

SPACER, 1.2

3084894

$19.99

16

SPROCKET 1

3084882

Unavailable

17

NUT, SLIT

3085528

$35.99

18

WASHER

3086767

Unavailable

19

NUT, LOCK

3083905

Unavailable

20

KEY

3081447

Unavailable

21

KEY, WOODRUFF

3240168

$19.99
