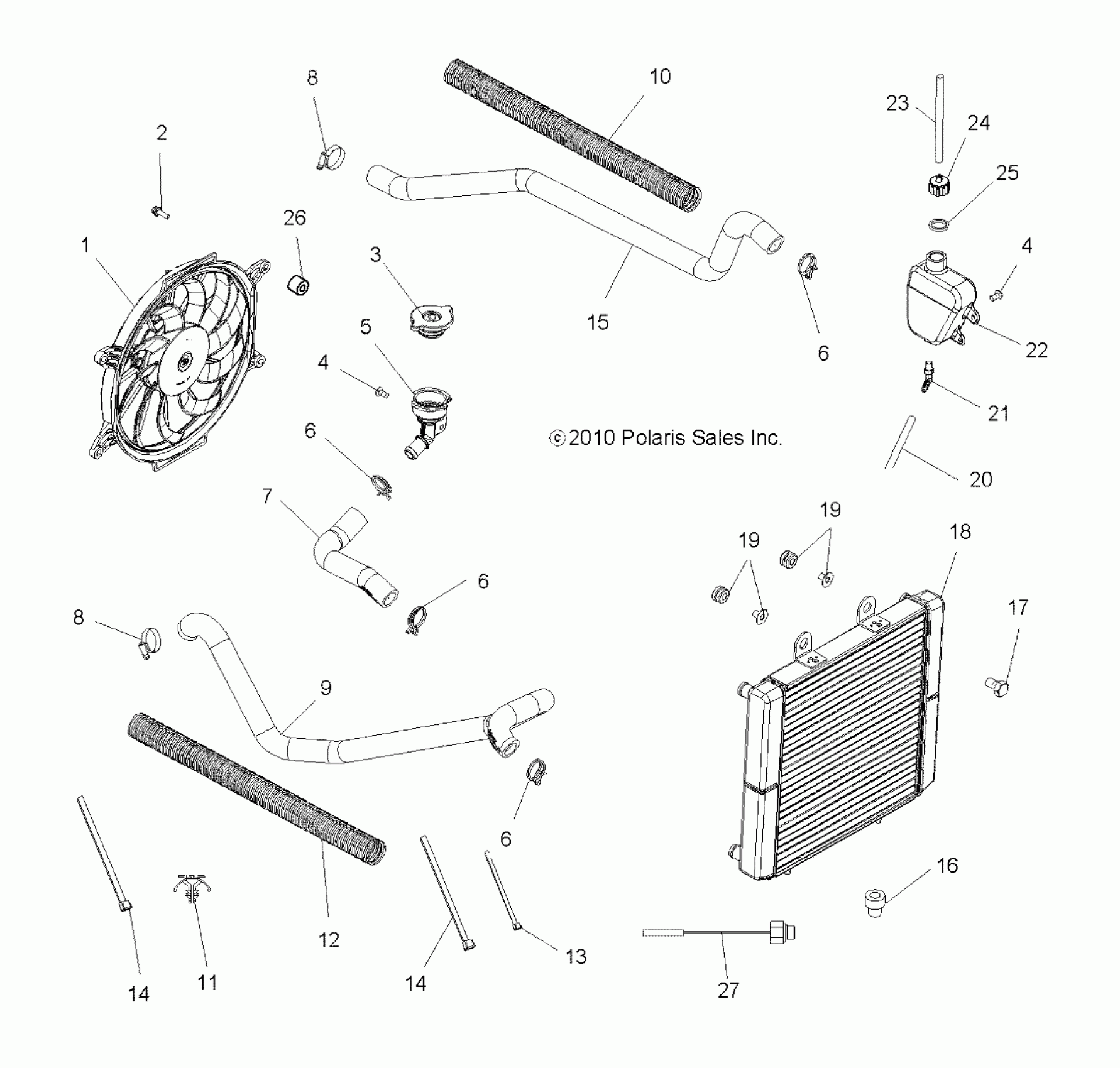

Polaris SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ ENGINE, COOLING SYSTEM - A11MH46AX/AZ (49ATVCOOL11SP500) Diagram

#

Description
Price

1

Asm., Fan and Motor

2410383

$225.14

2

SCREW

7516827

$6.35

3

Cap, Pressure

1240508

$48.56

4

Screw

7512084

$1.19

4

Screw

7512084

$1.19

5

NECK, FILLER

5412402

$31.10

6

CLAMP, SPRINGBACK

7080841

$7.14

6

CLAMP, SPRINGBACK

7080841

$7.14

6

CLAMP, SPRINGBACK

7080841

$7.14

6

CLAMP, SPRINGBACK

7080841

$7.14

7

Hose, Filler Neck

5414024

$17.30

8

CLAMP, HOSE

7080696

$5.56

8

CLAMP, HOSE

7080696

$5.56

9

Hose, Radiator, Lower

5414022

$52.60

10

CONDUIT, FLEX

5521793-25

$10.51

11

MOUNT, CABLE TIE

7080965

$7.27

12

CONDUIT, FLEX

5521793-25

$10.51

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

Hose, Radiator, Upper

5414023

$52.60

16

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

17

Screw

7515179

$2.38

18

ASM., RADIATOR [INCL. 19, DOES NOT INCL. 4010808]

1240522

$453.32

19

ASM., GROMMET AND INSERT

5413155

$3.97

19

ASM., GROMMET AND INSERT

5413155

$3.97

20

Line, Fuel

8450003-1525

$89.99

21

FITTING, 90 DEGREE

7052065

$7.14

22

TANK-SURGE

5436936

$80.94

23

LINE, FUEL

8360009-600

Unavailable

24

CAP, OVERFLOW BOTTLE W/FITTING

5437635

$4.84

25

GASKET-OVERFLOW CAP

5810279

$2.41

26

SPACER

5137361

$5.56

27

SENSOR, THERMAL HARNESS

4010808

$109.24
