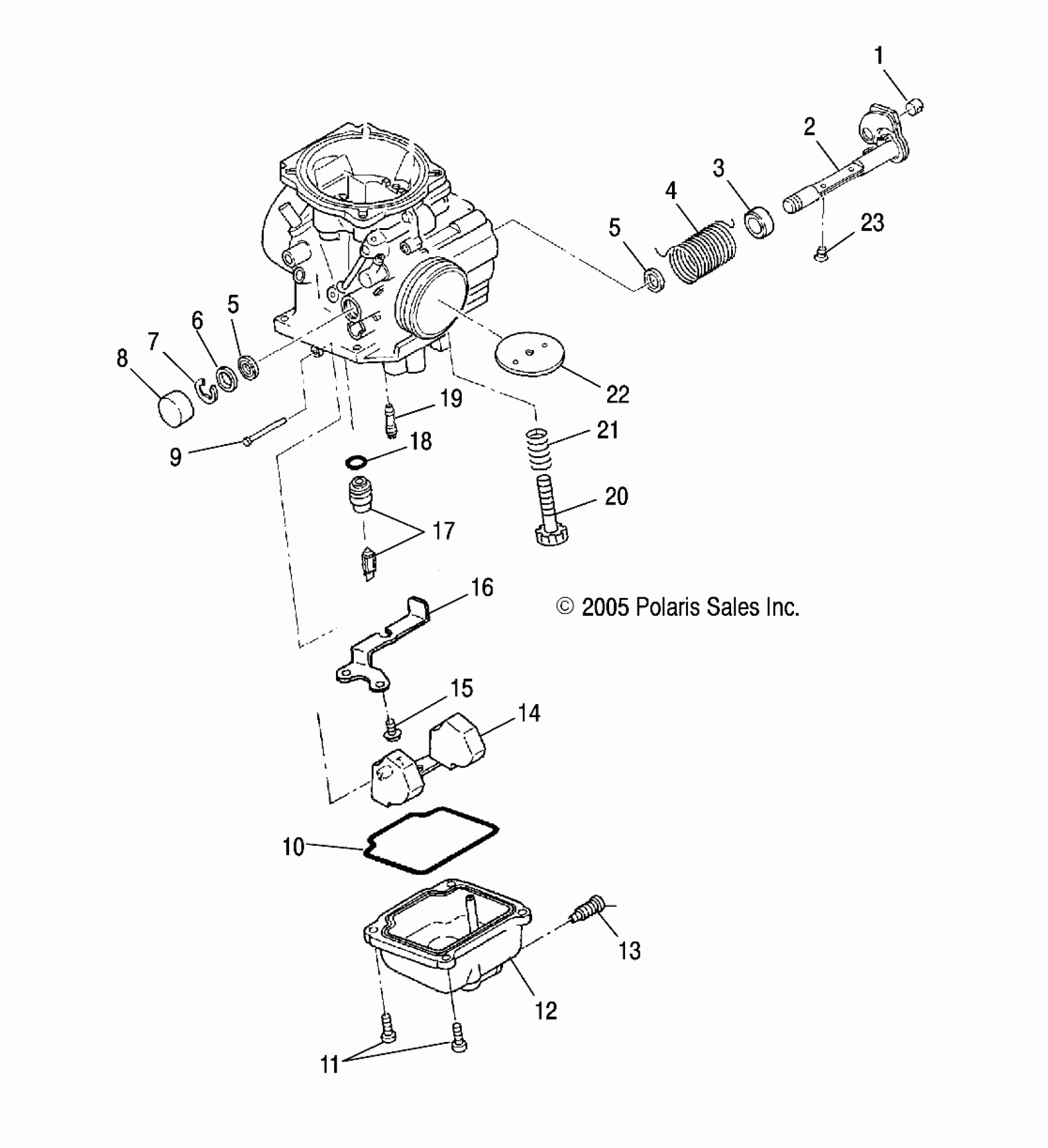

Polaris SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ ENGINE, CARBURETOR, LOWER - A11MH46AX/AZ (4999200059920005D08) Diagram

#

Description
Price

1

Guide, Cable

3084696

$9.59

2

ASM., SHAFT, THROTTLE

3131602

$95.99

3

Ring

3131603

Unavailable

4

SPRING

3130589

$23.99

5

SEAL

3130515

$11.99

5

SEAL

3130515

$11.99

6

PACKING

-------

Unavailable

7

E-RING

3130518

$1.59

8

CAP

3130519

$10.39

9

PIN, FLOAT

3130361

$8.89

10

O-RING

3130532

$31.99

11

SCREW

3130520

$1.59

12

ASM., BODY, FLOAT

3130590

$103.99

13

SCREW

3130521

$10.39

14

ASM., FLOAT

3130529

$79.99

15

SCREW

3130591

$3.99

16

PLATE

3130594

$27.99

17

Valve, Needle (1.5)

3131360

$47.99

18

O-RING

3130533

$5.59

19

JET, PILOT, #42.5

3130526

$27.99

20

SCREW, ADJUST

3131423

$23.99

21

SPRING

3130836

$7.27

22

Valve, Throttle, 100

3131601

Unavailable

23

SCREW

3130501

$3.99
