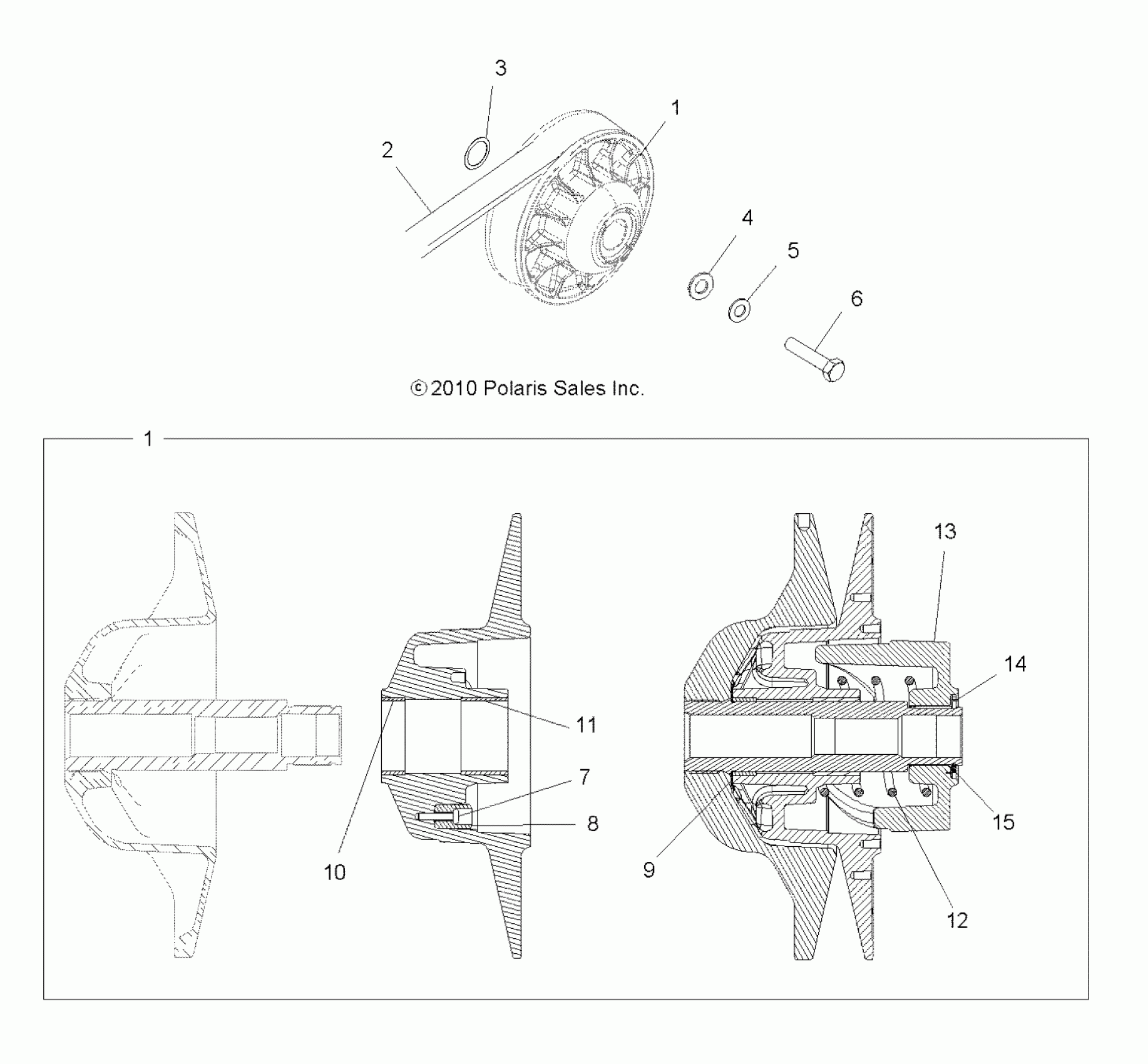

Polaris SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ DRIVE TRAIN, SECONDARY CLUTCH - A11MH46AX/AZ (49ATVCLUTCHDRIVEN11SP400) Diagram

Asm., Driven Clutch, Black [Incl. 7-17][Built 3/31/11 and Before]

1322845

$614.99

Asm., Driven Clutch, Black [Incl. 7-17][Built 4/01/11 and After]

1323015

$327.99

Asm., Driven Clutch, Black [Incl. 7-17][Built 3/31/11 and Before]

1322845

$614.99

Asm., Driven Clutch, Black [Incl. 7-17][Built 4/01/11 and After]

1323015

$327.99

BELT, DRIVE

3211077

$63.99

BUSHING

7556120

$1.49

WASHER, DOMED

5250562

$2.39

WASHER, SPRING LOCK

7552901

$1.49

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

Bolt

7511854

$1.49

Button

5438123

$6.17

Washer, .030 [Built 3/31/11 and Before]

7556804

$1.49

Washer, .020 [Built 4/01/11 and After]

7555898

$1.49

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.99

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

SPRING, CLUTCH

7041782

$56.65

RAMP, STATIONARY

5131446

$87.99

SPACER, .020

5244116

$7.19

Ring, Retaining

7710448

$3.19
