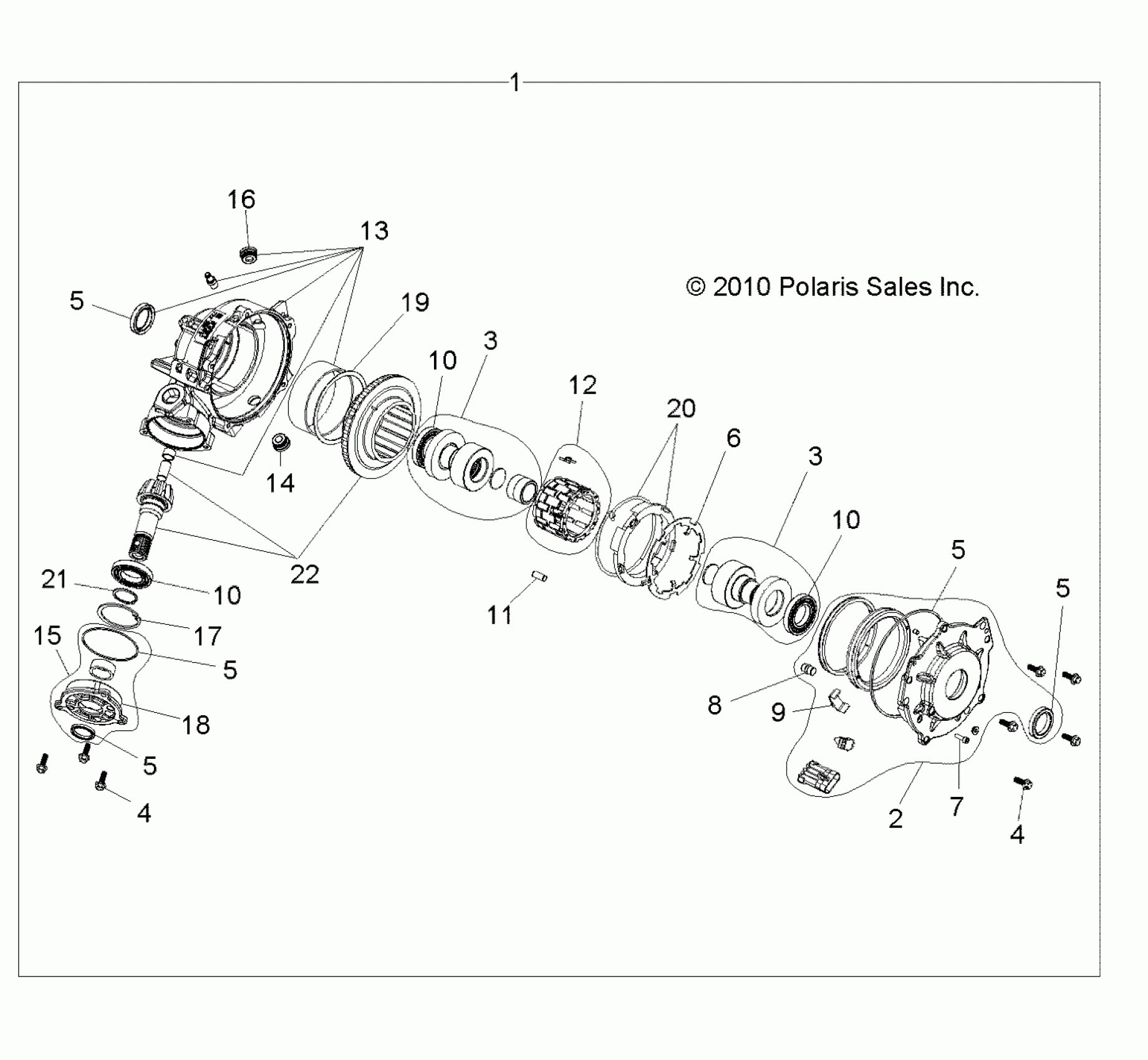

Polaris SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ DRIVE TRAIN, FRONT GEARCASE (Built 9/28/10 and After) - A11MH46AX/AZ (49RGRTRANSINTL1332956) Diagram

Asm., Gearcase, AWD [Incl. All][Built 9/27/10 and After]

1332956

$1,680.79

ASM., COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING]

3235162

$467.17

KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]

3234936

Unavailable

KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]

3234936

Unavailable

KIT, BOLT [INCL. 8 SCREWS]

3234405

$27.99

KIT, BOLT [INCL. 8 SCREWS]

3234405

$27.99

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235330

$87.99

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235330

$87.99

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235330

$87.99

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235330

$87.99

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235330

$87.99

PLATE, ARMATURE

3234407

$107.99

SET, SCREW

3234408

$27.99

ASM., THRUST BUTTON

3234594

Unavailable

PLATE, THRUST

3235183

$55.99

Bearing

3234390

$35.99

Bearing

3234390

$35.99

Bearing

3234390

$35.99

KIT-ROLLER [INCL. COMPLETE SET OF ROLLERS]

3234393

$111.84

ASM., ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]

3234907

$323.99

ASM., ROLL CAGE, BILLET ALUM [HIGH PERFORMANCE ACCESSORY][INCL. CLIP SET]

3235262

$526.49

ASM., GEARCASE [INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL]

3234411

$562.31

ASM., DRAIN PLUG, MAGNETIC

3234412

$39.99

COVER, INPUT [INCL. INPUT COVER, O-RING, OIL SEAL, NEEDLE FOLLER BEARING]

3235337

$119.99

PLUG, OIL FILL

3234414

Unavailable

RING, RETAINING

3234416

$10.39

COVER, INPUT

3234418

Unavailable

SPACER-RING GEAR

3234437

$19.99

KIT, SPRING [INCL. SPRING RETAINER, TORSION SPRING]

3234908

$87.99

RING, RETAINING

3235177

$6.39

ASM., RING AND PINION GEAR [INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN]

3235189

$659.99
