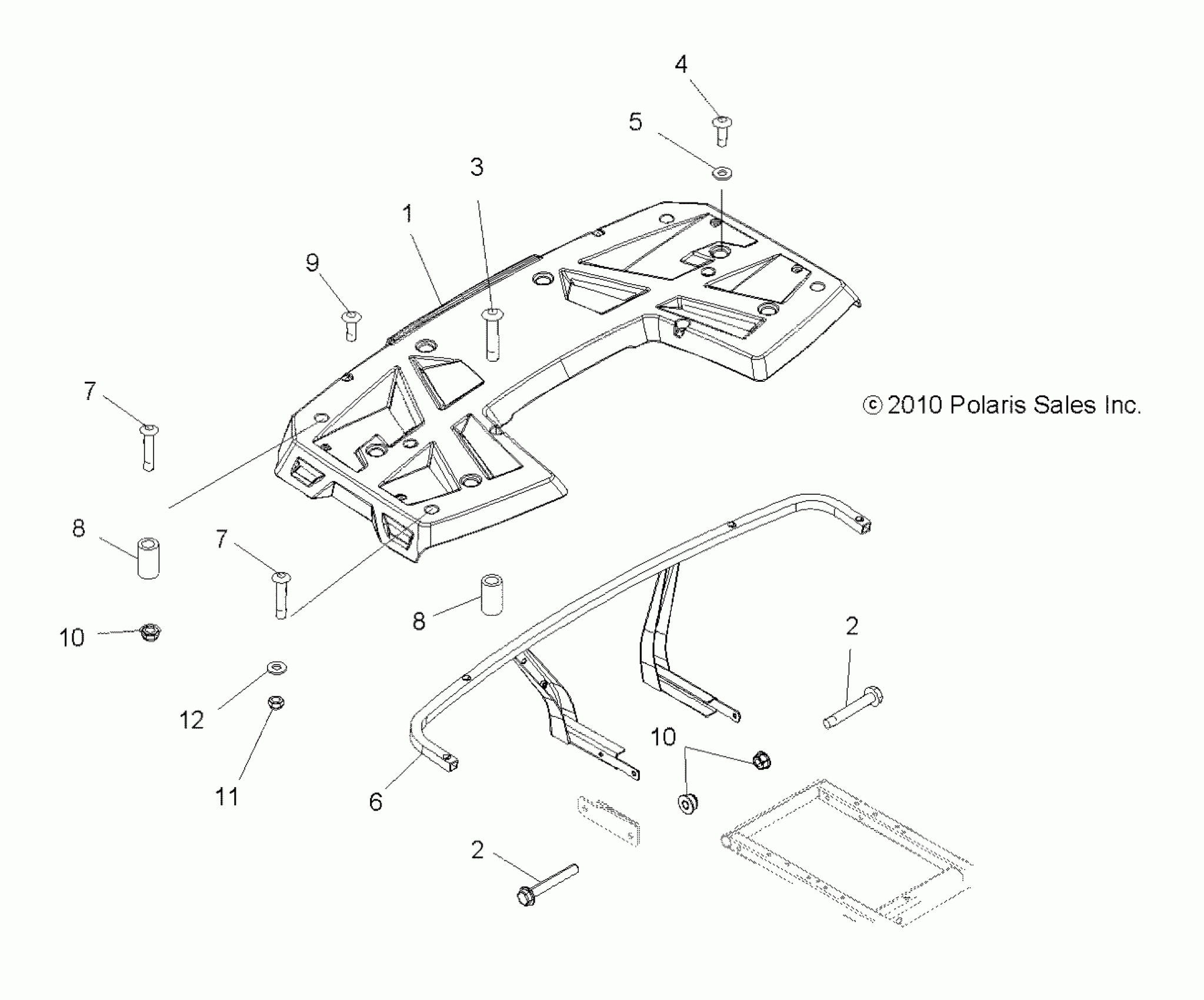

Polaris SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ BODY, REAR RACK - A11MH46AX/AZ (49ATVRACKMTGRR11SP500F) Diagram

#

Description
Price

1

ASM., RACK, REAR, BLACK [INCL. WARNING DECAL]

2634047-070

$219.99

2

BOLT, FLANGE

7518341

$4.79

2

BOLT, FLANGE

7518341

$4.79

3

SCREW

7518215

$4.79

4

Screw

7512093

$1.49

5

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

6

SUPPORT, REAR RACK, BLACK

1014668-067

$255.19

7

SCREW

7518462

$2.39

7

SCREW

7518462

$2.39

8

SPACER

5521747

$3.99

8

SPACER

5521747

$3.99

9

SCREW

7518375

$1.49

10

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

WASHER, FLAT

7555716

$1.59
