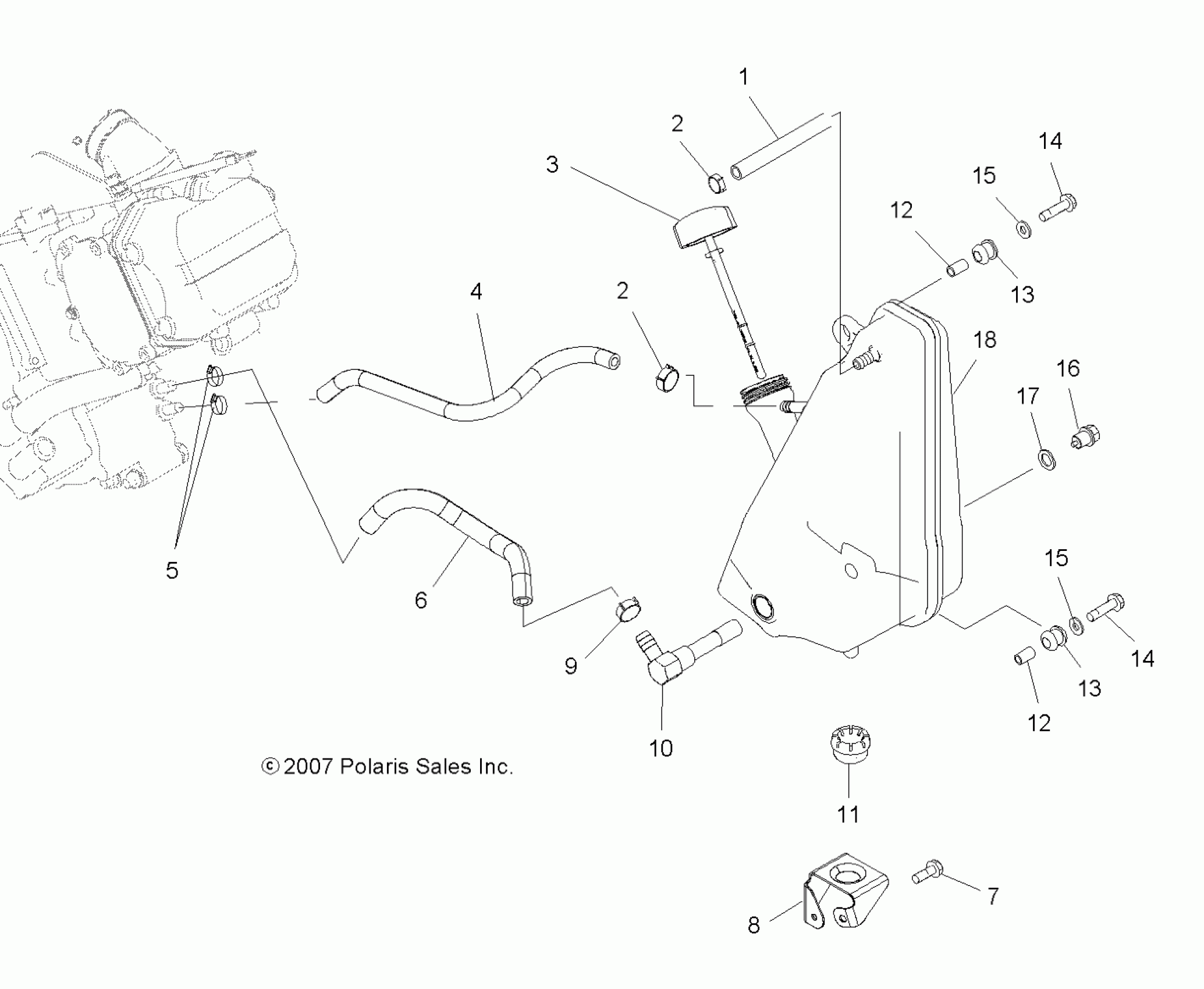

Polaris SPORTSMAN 400 HO 4X4 - A10LH46AX/AZ ENGINE, OIL SYSTEM - A10LH46AX/AZ (49ATVOIL08SP400) Diagram

#

Description
Price

1

Line, Breather

5413003

Unavailable

2

Clamp, Hose

7080699

$1.59

2

Clamp, Hose

7080699

$1.59

3

Dipstick, Oil Tank

5437380

Unavailable

4

Hose, Formed, Oil Return

5413411

Unavailable

5

CLAMP-HOSE,.875-SS

7080474

$8.54

6

Hose, Formed, Oil Supply

5413412

$64.99

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

8

Bracket, Oil Tank

5251423-329

$17.30

9

CLAMP, HOSE

7081026

$7.94

10

SCREEN, OIL FILTER, 90 DEGREE

7052326

$44.51

11

Grommet

5412666

$3.17

12

BUSHING, MOUNTING

5333204

$29.99

12

BUSHING, MOUNTING

5333204

$29.99

13

GROMMET, MOUNTING, RESERVOIR

5410828

$3.97

13

GROMMET, MOUNTING, RESERVOIR

5410828

$3.97

14

SCR-HXWHD,THDFRM,M6X30,0600202

7518713

$5.56

14

SCR-HXWHD,THDFRM,M6X30,0600202

7518713

$5.56

15

Washer, Flat

7558301

$1.19

15

Washer, Flat

7558301

$1.19

16

PLUG

7051524

$32.37

17

WASHER

5850135

$3.17

18

Tank, Oil

1261654

$222.60
