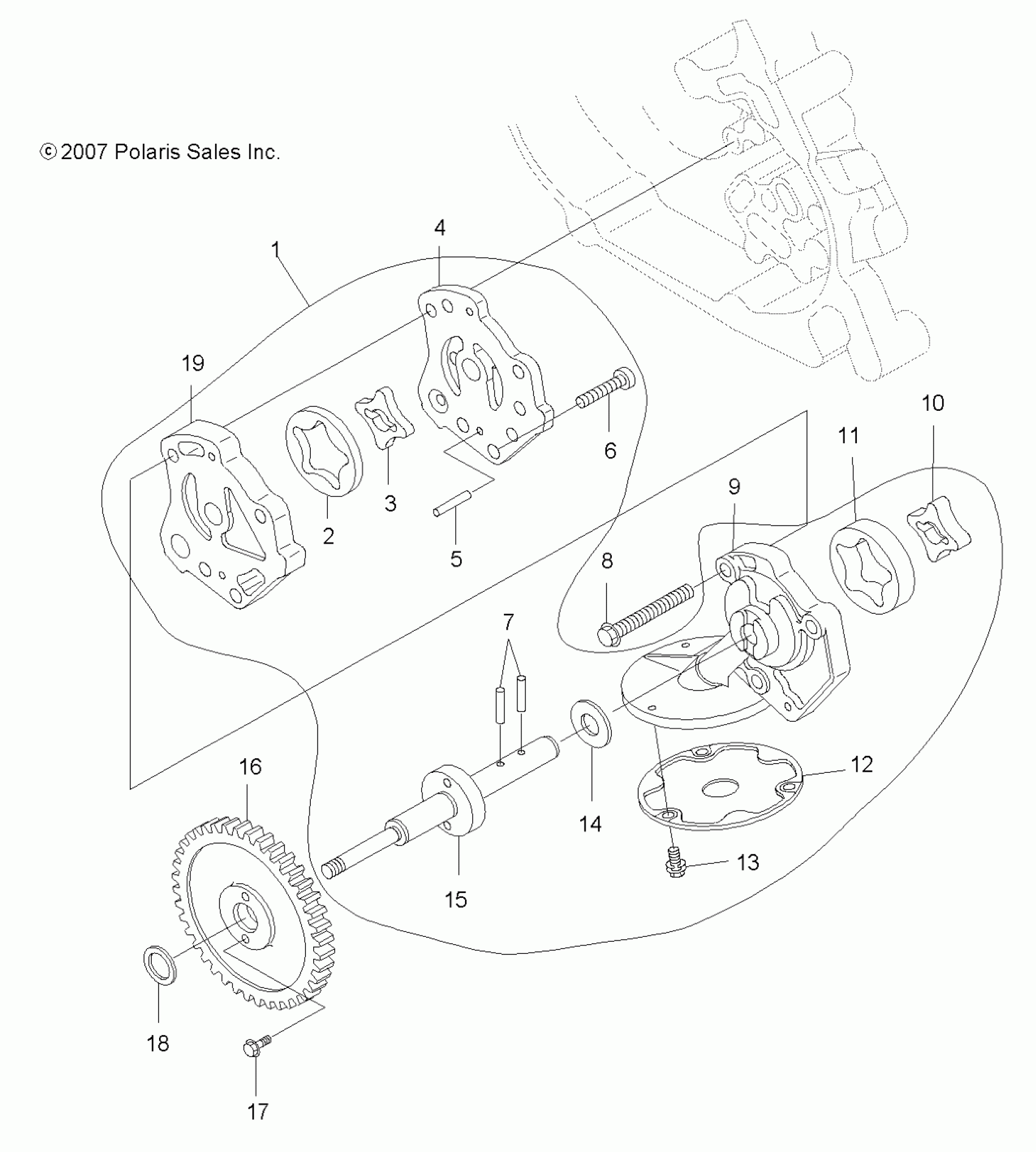

Polaris SPORTSMAN 400 HO 4X4 - A10LH46AX/AZ ENGINE, OIL PUMP - A10LH46AX/AZ (49ATVOILPUMP08SP400) Diagram

#

Description
Price

1

Asm., Oil Pump [Incl. 1-7,9-15,19]

3090051

$229.99

2

ROTOR, OUTER, FEED

3084949

$44.51

3

Rotor, Inner, Feed

3090055

$21.27

4

PUMP, OIL, CASE 1

3090000

Unavailable

5

PIN, DOWEL

3084955

Unavailable

6

SCREW

3085535

Unavailable

7

PIN, DOWEL

3084954

$7.14

8

Bolt and Washer

3082030

$3.97

9

Pump, Oil, Case 3

3090054

$61.90

10

Rotor, Inner

3090056

$21.27

11

Rotor, Outer

3090057

$9.05

12

UNIT, OIL STRAINER

3084956

Unavailable

13

Asm., Screw and Washer

3084205

$3.97

14

WASHER

3084953

$3.17

15

SHAFT, PUMP

3085858

Unavailable

16

GEAR, PUMP, 2

3090033

$174.03

17

BOLT, FLANGE

3089505

$4.76

18

SPACER, 0.8

3084959

Unavailable

18

SPACER, 1.2

3084961

Unavailable

18

SPACER, 1.0

3084960

Unavailable

19

Pump, Oil, Case 2

3090053

$22.22
