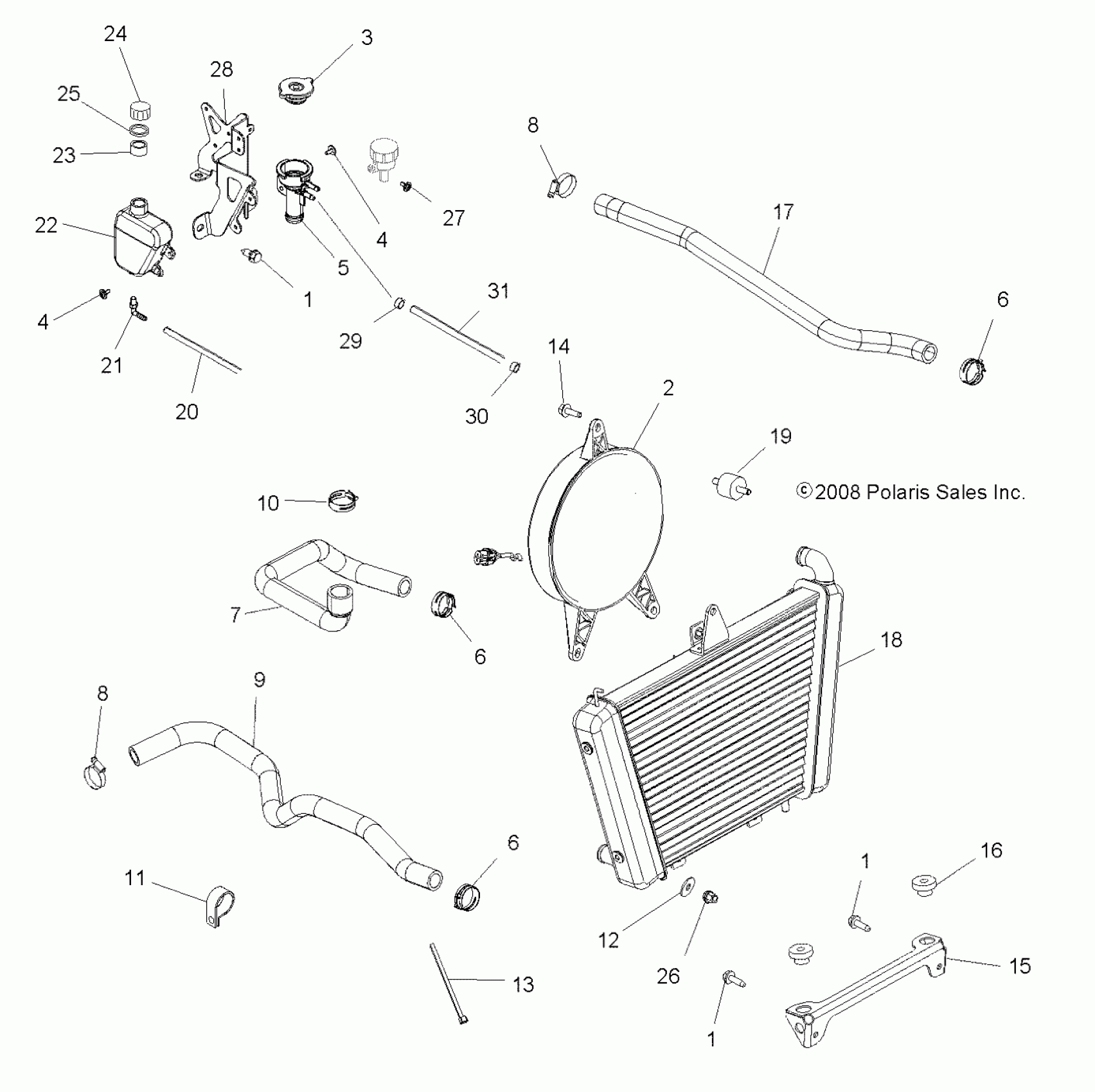

Polaris SPORTSMAN 400 HO 4X4 - A10LH46AX/AZ ENGINE, COOLING SYSTEM - A10LH46AX/AZ (49ATVCOOL09SP400) Diagram

#

Description
Price

1

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

1

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

1

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

2

Asm., Fan and Motor

2520850

$227.99

3

Cap, Pressure

1240508

$48.56

4

Screw

7512084

$1.49

4

Screw

7512084

$1.49

5

Filler, Remote Coolant [Built 11/06/09 and after]

5438110

Unavailable

5

Filler, Remote Coolant [Built 11/05/09 and before]

5435196

Unavailable

6

CLAMP, SPRINGBAND

7080841

$7.19

6

CLAMP, SPRINGBAND

7080841

$7.19

6

CLAMP, SPRINGBAND

7080841

$7.19

7

Hose, Engine Filler

5413367

$14.76

8

CLAMP, HOSE

7080696

$5.59

8

CLAMP, HOSE

7080696

$5.59

9

Hose, Engine, Lower

5413365

Unavailable

10

CLAMP, SPRINGBAND

7080844

$10.39

11

CLAMP-HOSE

7080807

$9.59

12

WASHER, SPRING LOCK

7552801

$1.59

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

Bolt

7517975

$5.59

15

Bracket, Radiator, Black

5251445-067

$27.19

16

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

17

Hose, Engine, Upper

5413366

$32.37

18

Switch, Thermal

4011980

Unavailable

18

Radiator [Switch not included]

1240361

Unavailable

19

Mount, Rubber

3110071

$27.99

20

Line, Fuel

8450003-1525

$84.99

21

FITTING, 90 DEGREE

7052065

$7.19

22

TANK-SURGE

5436936

$75.99

23

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

24

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

25

GASKET-OVERFLOW CAP

5810279

$2.41

26

NUT

7542105

$3.99

27

Screw

7517560

$4.79

28

Bracket, Radiator Fill Mount

5252816

$24.79

29

HOSE CLAMP, RED

7080003

$1.49

30

CLAMP, HOSE

7080236

$1.59

31

Line, Fuel

8450040-600

Unavailable
