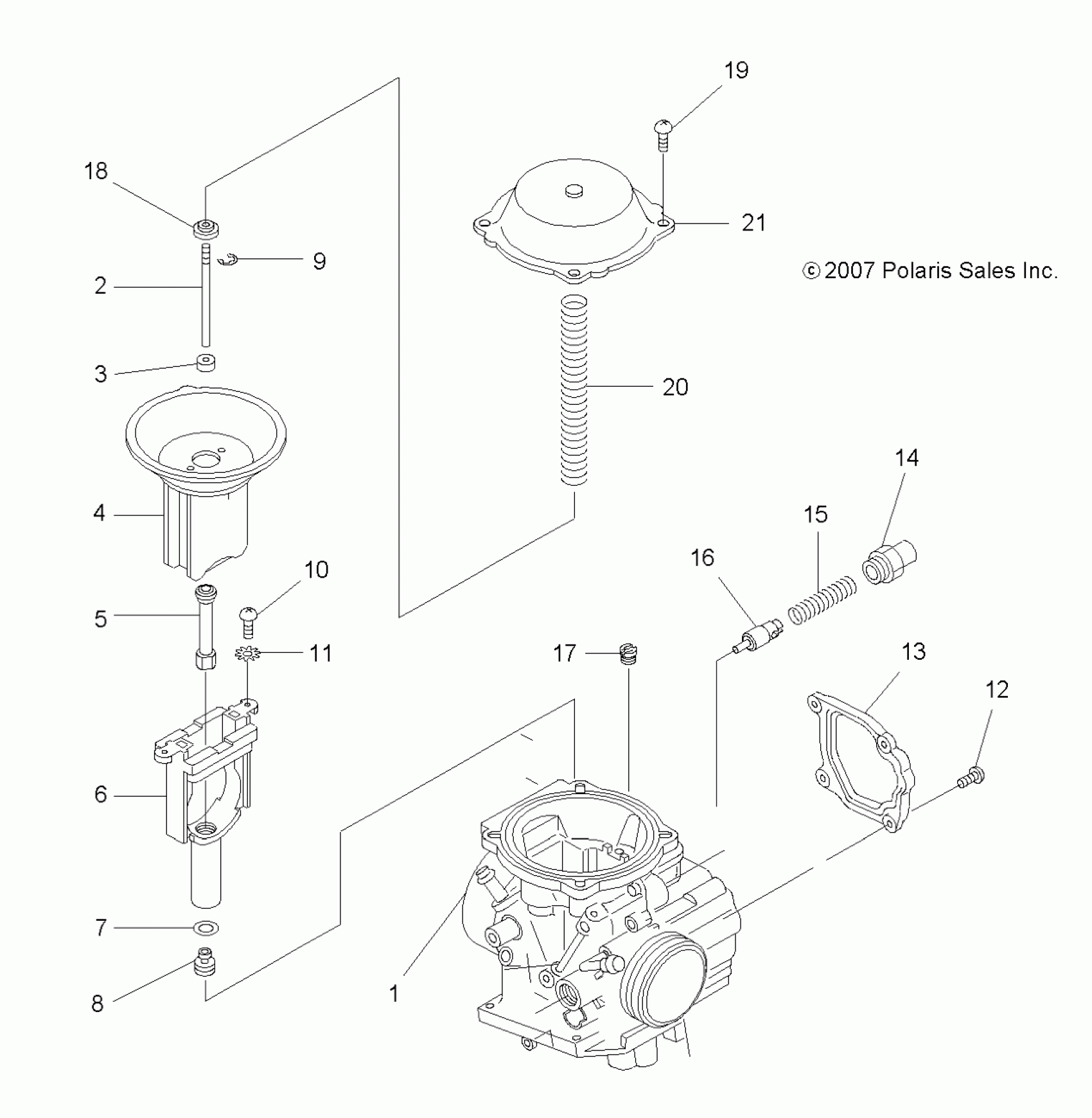

Polaris SPORTSMAN 400 HO 4X4 - A10LH46AX/AZ ENGINE, CARBURETOR UPPER - A10LH46AX/AZ (49ATVCARBUPPER08SP400) Diagram

Description

Price

Asm., Carburetor [Incl. All]

3131691

$653.56

Needle, Jet, 41B33

3131604

$39.99

RING

3130752

$5.59

Diaphragm

3130732

$123.99

JET, NEEDLE, P-6

3131363

$35.99

Block, Jet

3130504

$59.99

WASHER

3130014

$1.59

Jet, Main, #157.5

3130572

$24.27

E-RING

3130508

$6.46

SCREW

3130541

$11.19

WASHER, SPRING

3130540

$4.79

SCREW

3130535

$7.19

COVER

3130511

$43.99

HOLDER, GUIDE

3131396

$13.59

SPRING

3130538

$4.79

Plunger

3131606

$43.99

JET, AIR, #160

3130625

$13.59

RING

3130507

$5.59

SCREW

3130924

$1.59

SPRING

3130505

$23.99

Cover

3130503

$63.99
