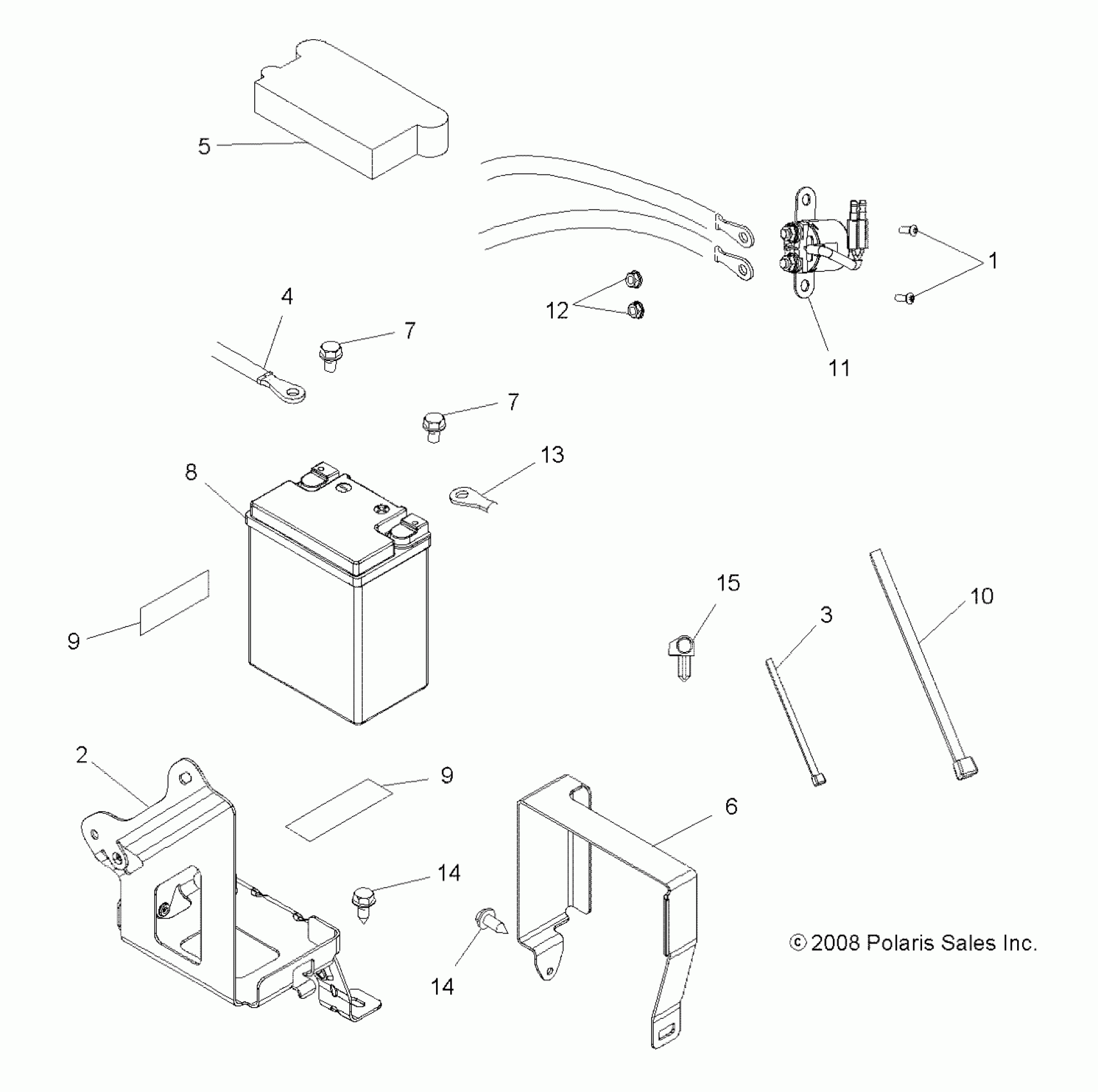

Polaris SPORTSMAN 400 HO 4X4 - A10LH46AX/AZ ELECTRICAL, BATTERY - A10LH46AX/AZ (49ATVBATTERY09SP400) Diagram

#

Description
Price

1

Screw

7512017

$4.79

2

Bracket, Battery

5251289-329

Unavailable

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

Cable, Black, Battery

4012133

$14.87

5

Cover, Battery w/Foam

2633661

Unavailable

6

Bracket, Battery Strap

5251295

Unavailable

7

Screw, Flange

7517653

Unavailable

7

Screw, Flange

7517653

Unavailable

8

BATTERY

4011138

$107.99

9

PAD-BATTERY

5810290

$7.27

9

PAD-BATTERY

5810290

$7.27

10

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

11

SOLENOID, STARTER

4012013

$75.99

12

NUT, FLANGE

7547270

$3.99

13

Cable, Red, Battery/Solenoid

4012390

Unavailable

14

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

14

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

15

Clip

7670102

$2.39
