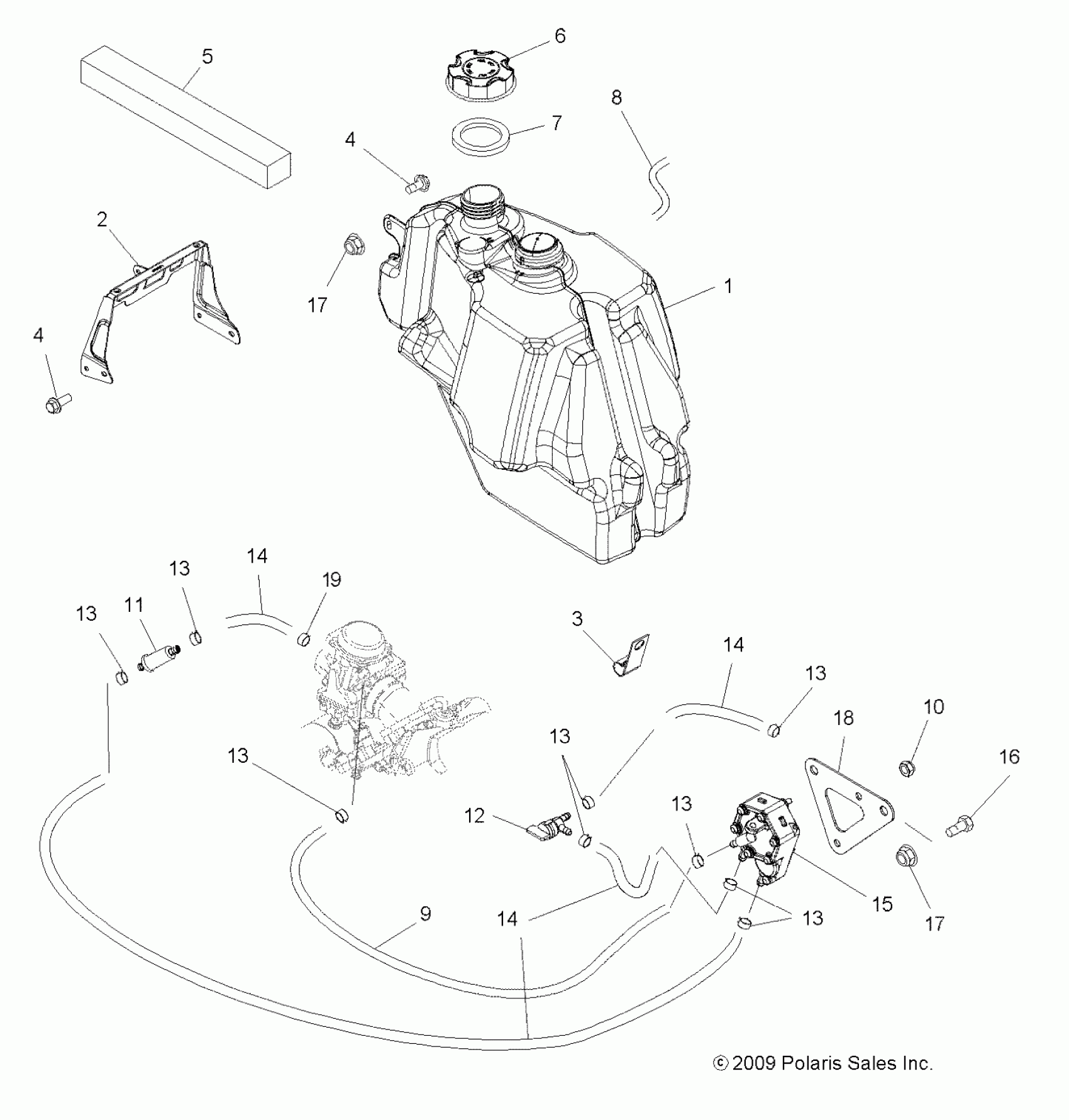

Polaris SPORTSMAN 400 HO 4X4 - A10LH46AX/AZ BODY, FUEL TANK - A10LH46AX/AZ (49ATVFUEL10SP400) Diagram

#

Description
Price

1

Gauge, Fuel

3280524

$43.99

1

Asm., Fuel Tank [Incl. Gauge]

2520956

Unavailable

2

Bracket, Fuel Tank, Black

1016190-329

$89.99

3

Clip, J

7080884

$3.99

4

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

4

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

5

Foam, Seal

5813277

$2.63

6

Cap, Gas Tank

5433687

$20.22

7

GASKET

5812123

$5.65

8

LINE, FUEL

8360009-600

Unavailable

9

Line, Fuel

8450040-600

Unavailable

10

NUT-M5X.8,HX NYL-Y

7546601

$1.49

11

FILTER

2530009

$5.65

12

Valve, 90 Degrees

7052249

$24.27

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

14

HOSE, FUEL

8450117-250

Unavailable

14

HOSE, FUEL

8450117-250

Unavailable

14

HOSE, FUEL

8450117-250

Unavailable

15

Asm., Fuel Pump

3088070

$77.21

16

SCREW

7518925

$3.19

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

Bracket, Fuel Pump Mount

5252762

$2.79

19

CLAMP, HOSE

7080558

$3.99
