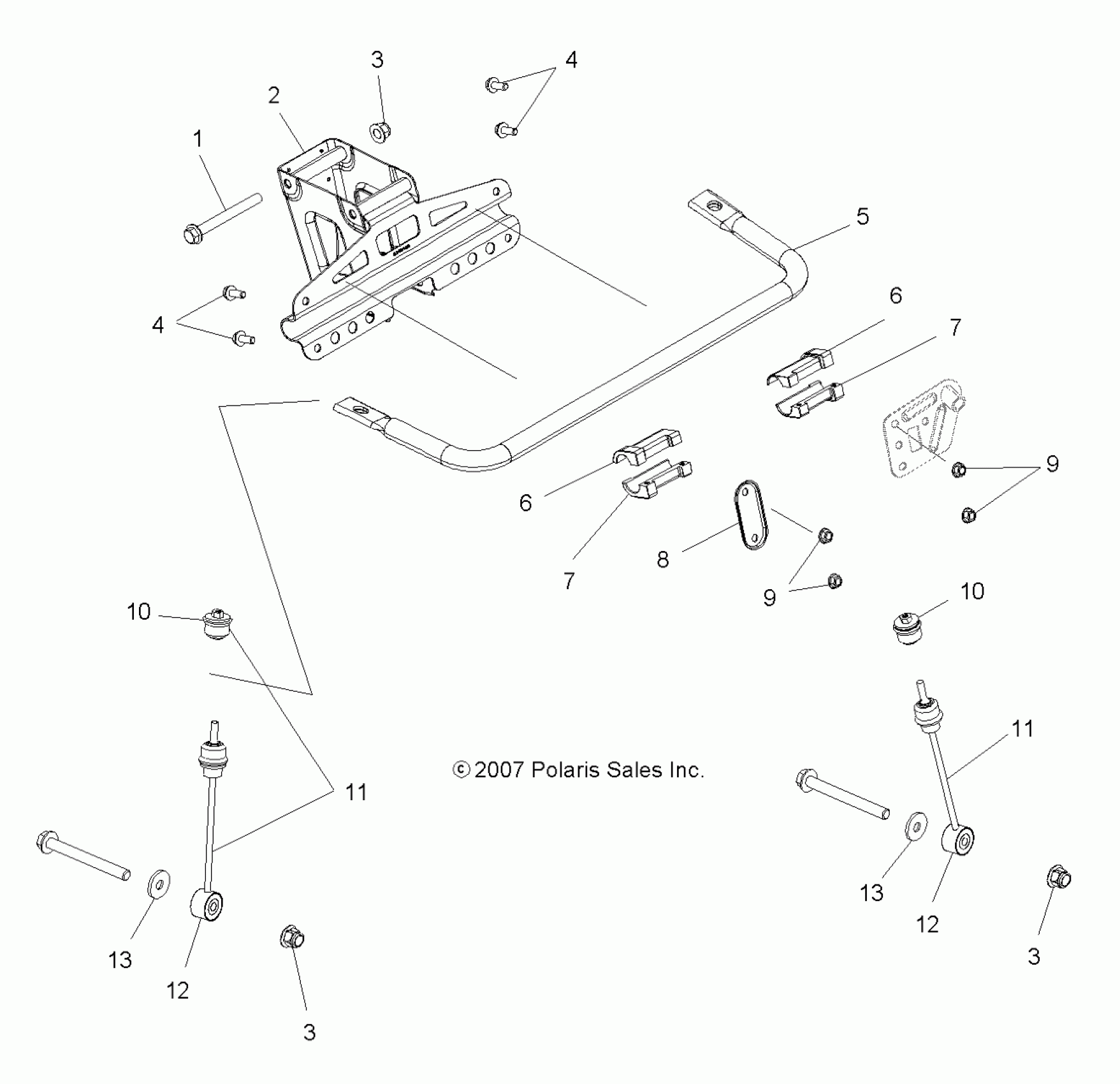

Polaris SPORTSMAN 400 HO 4X4 - A08LH46AQ/AX/AZ SUSPENSION, TORSION BAR - A08LH46AQ/AX/AZ (49ATVTORSION08SP400) Diagram

#

Description
Price

1

Screw, Flange

7518526

$3.17

2

Mount, Stabilizer, Black

1015187-067

Unavailable

3

Nut, Flange

7547313

$1.19

3

Nut, Flange

7547313

$1.19

3

Nut, Flange

7547313

$1.19

4

BOLT, FLANGE

7518702

$3.97

4

BOLT, FLANGE

7518702

$3.97

5

Bar, Stabilizer, Black

5335197-067

Unavailable

6

Bushing, Stabilizer

5436343

$15.19

6

Bushing, Stabilizer

5436343

$15.19

7

Bushing, Torsion Bar

5436344

Unavailable

7

Bushing, Torsion Bar

5436344

Unavailable

8

Plate, Retainer

5249464

$17.79

9

Nut, Flange

7547317

$2.38

9

Nut, Flange

7547317

$2.38

10

Bushing

5413295

$4.76

10

Bushing

5413295

$4.76

11

Linkage, Torsion Bar [Incl. 12]

5135941

$72.84

11

Linkage, Torsion Bar [Incl. 12]

5135941

$72.84

12

BUSHING

----

Unavailable

12

BUSHING

----

Unavailable

13

WASHER, FLAT

7555852

$2.38

13

WASHER, FLAT

7555852

$2.38
