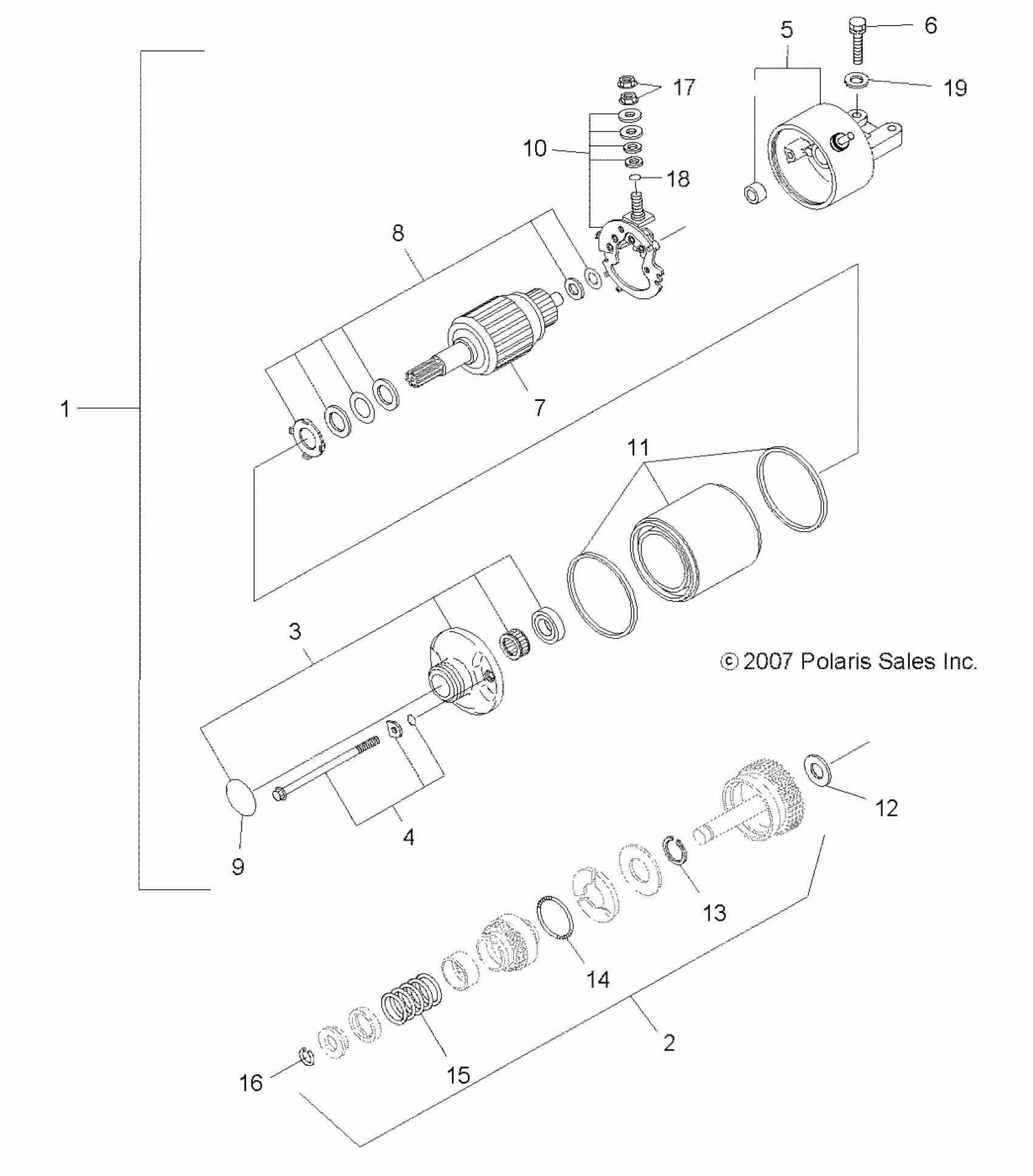

Polaris SPORTSMAN 400 HO 4X4 - A08LH46AQ/AX/AZ ENGINE, STARTING SYSTEM - A08LH46AQ/AX/AZ (49ATVSTARTER08SP400) Diagram

#

Description
Price

1

Motor, Starting, Complete [Incl. 3-5,7-11,17,18]

3090064

$449.99

2

Asm., Gear Shaft [Incl. 13-16]

3087030

Unavailable

3

Asm., Front Bracket [Incl. 9]

3085033

$137.60

4

Asm., Bolt Set [Incl. 18]

3084983

$23.99

5

Asm., Bracket, Rear

3090075

$39.37

6

BOLT, FLANGE

3084874

Unavailable

7

Asm., Armature

3085353

Unavailable

8

Washer Set

3084982

Unavailable

9

O-Ring

3088161

Unavailable

10

Brush, Carbon, Set

3088169

$115.99

11

RING, RUBBER

3084405

Unavailable

12

WASHER

7555908

$3.17

13

CLIP

3084412

$9.59

14

SPRING, WEIGHT

3084411

$15.67

15

SPRING, RETURN

3084410

$2.47

16

CLIP

3084409

$7.19

17

NUT, FLANGE

3083649

$3.99

18

O-RING

3084408

Unavailable

19

Washer, Flat [Used with Starter Ground Cable]

7558301

$1.49
