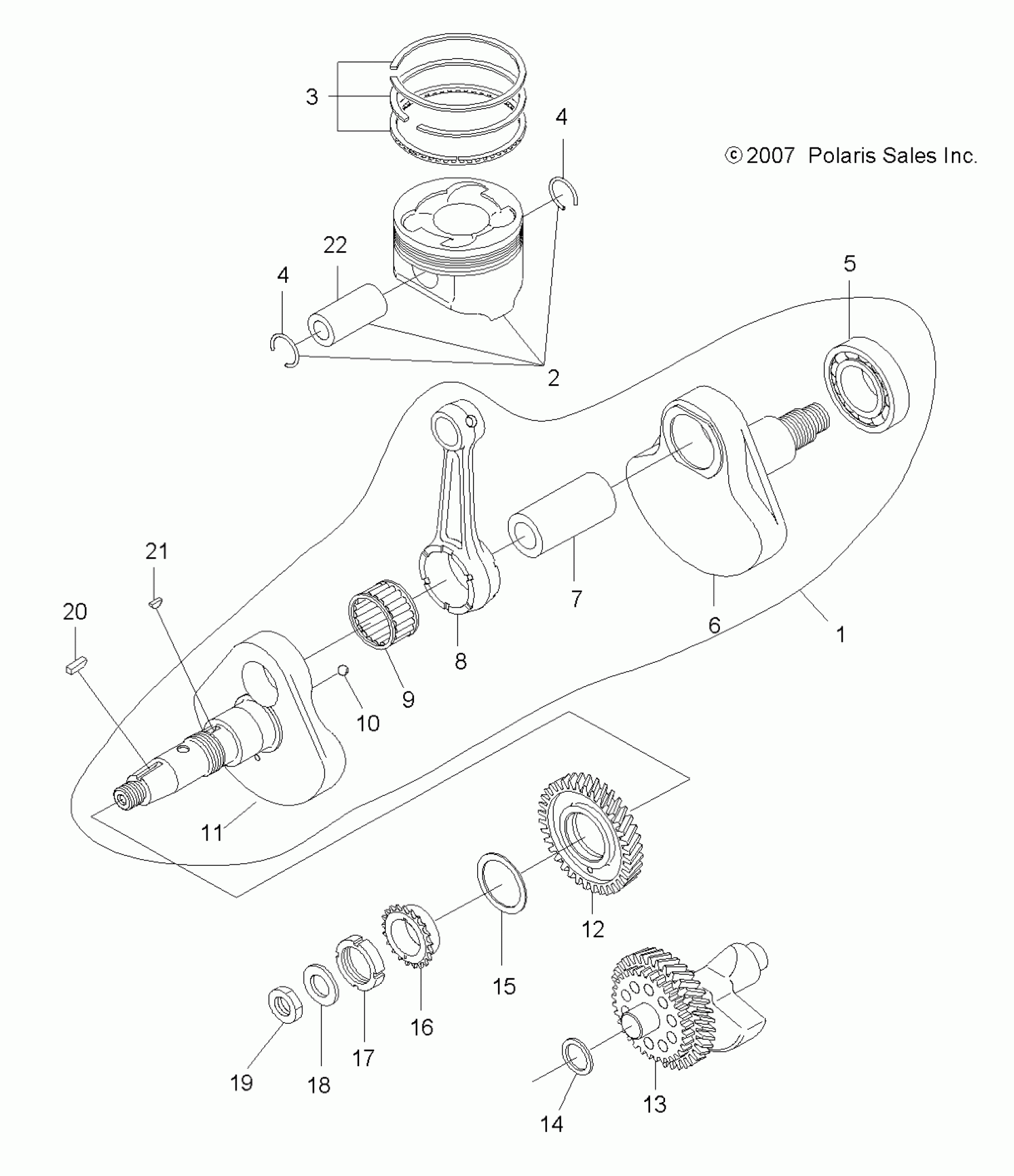

Polaris SPORTSMAN 400 HO 4X4 - A08LH46AQ/AX/AZ ENGINE, CRANKSHAFT and PISTON - A08LH46AQ/AX/AZ (49ATVCRANKSHAFT08SP400) Diagram

#

Description
Price

1

Asm., Crankshaft [Incl. 5-12]

3090040

$609.99

2

Set, Piston, Standard [Incl. Pin, Clips]

3087230

Unavailable

2

Set, Piston, .010 Inch/.25MM O/S [Incl. Pin, Clips]

3087231

Unavailable

2

Set, Piston, .020 Inch/.50MM O/S [Incl. Pin, Clips]

3087232

Unavailable

3

Set, Piston, Ring, Standard [Incl. Top, Mid, Bottom Rings]

3087233

$75.99

3

Set, Piston, Ring, .010 Inch/.25MM O/S [Incl. Top, Mid, Bottom Rings]

3087234

Unavailable

3

Set, Piston, Ring, .020 Inch/.50MM O/S [Incl. Top, Mid, Bottom Rings]

3087235

$76.17

4

CLIP

3085534

Unavailable

4

CLIP

3085534

Unavailable

5

BEARING, BALL

3090044

$34.99

6

Crankshaft 2

3090042

$69.84

7

Pin, Crank

3090043

$57.94

8

Rod, Connecting

3085813

Unavailable

9

BEARING, LARGE END

3085343

$78.56

10

BALL, STEEL

3085024

$6.46

11

Crankshaft 1

3090041

$180.16

12

BALANCER, GEAR 1

3089245

Unavailable

13

SHAFT, BALANCER

3090031

Unavailable

14

SPACER, 1.2

3084897

$6.35

14

SPACER, 0.8

3084895

$6.35

14

SPACER, 1.0

3084896

$6.35

15

SPACER, 1.2

3084894

$19.84

15

SPACER, 0.6

3240088

$12.99

15

SPACER, 1.0

3084893

Unavailable

15

SPACER, 0.8

3084892

$12.70

16

SPROCKET 1

3084882

Unavailable

17

NUT, SLIT

3085528

$35.71

18

WASHER

3086767

Unavailable

19

NUT, LOCK

3083905

Unavailable

20

KEY

3081447

Unavailable

21

KEY, WOODRUFF

3240168

$24.27

22

PIN, PISTON

----

Unavailable
