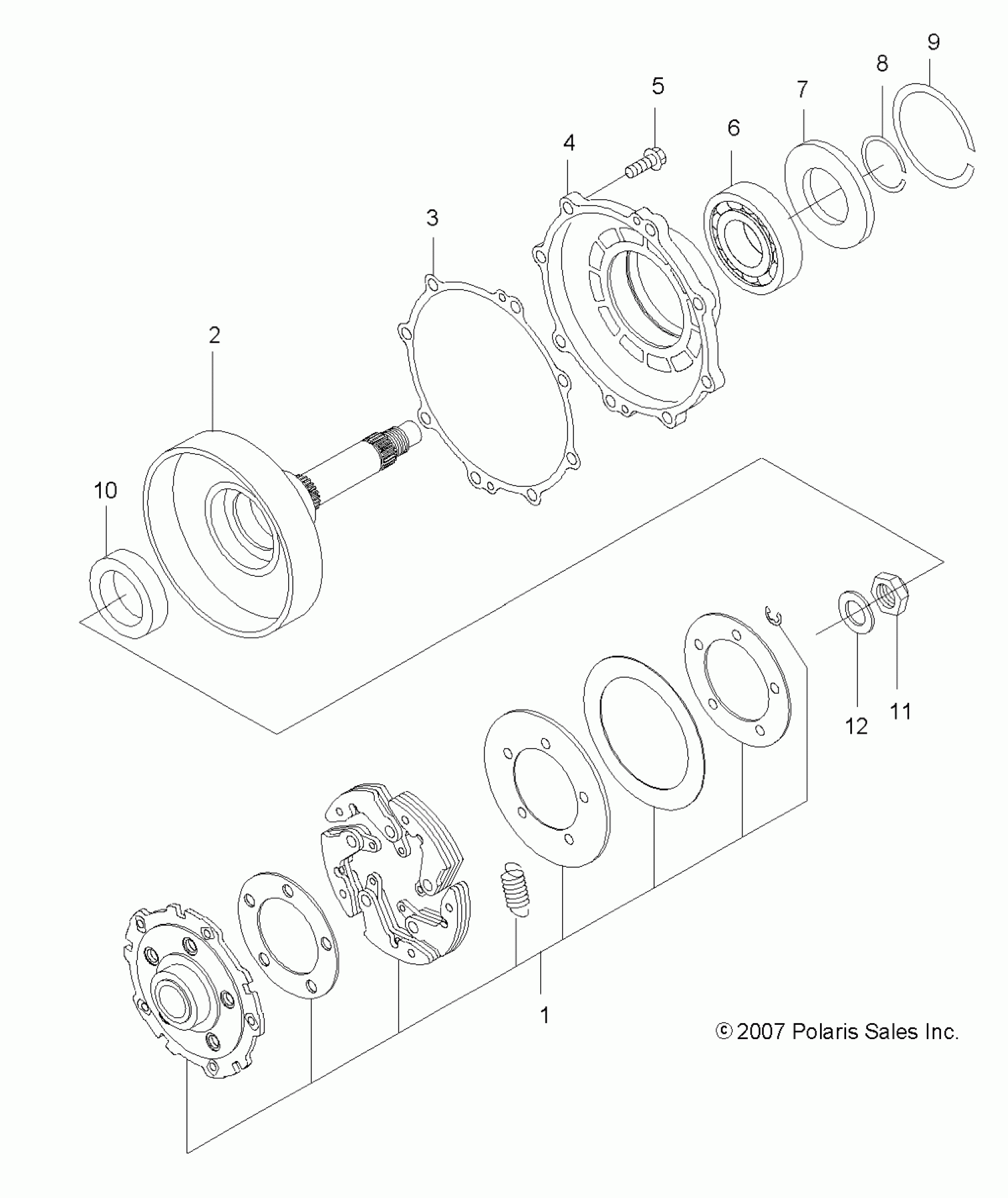

Polaris SPORTSMAN 400 HO 4X4 - A08LH46AQ/AX/AZ ENGINE, CLUTCH - A08LH46AQ/AX/AZ (49ATVCLUTCH08SP400) Diagram

#

Description
Price

1

Clutch, Inner

3090073

Unavailable

2

Shaft, CVT Drive

3090069

$179.99

3

Gasket, Clutch Cover

3090072

Unavailable

4

Cover, Clutch, Complete [Incl. 6,9]

3090065

$94.44

5

Bolt, Flange

3085295

$2.63

6

Bearing, Ball

3090067

Unavailable

7

Seal, Oil

3090071

$15.87

8

Clip

3090070

$7.99

9

Clip

3090068

$6.23

10

Clutch, One Way

3090074

Unavailable

11

Nut, Lock

3086378

$35.99

12

Washer, Lock

3086381

$7.99
