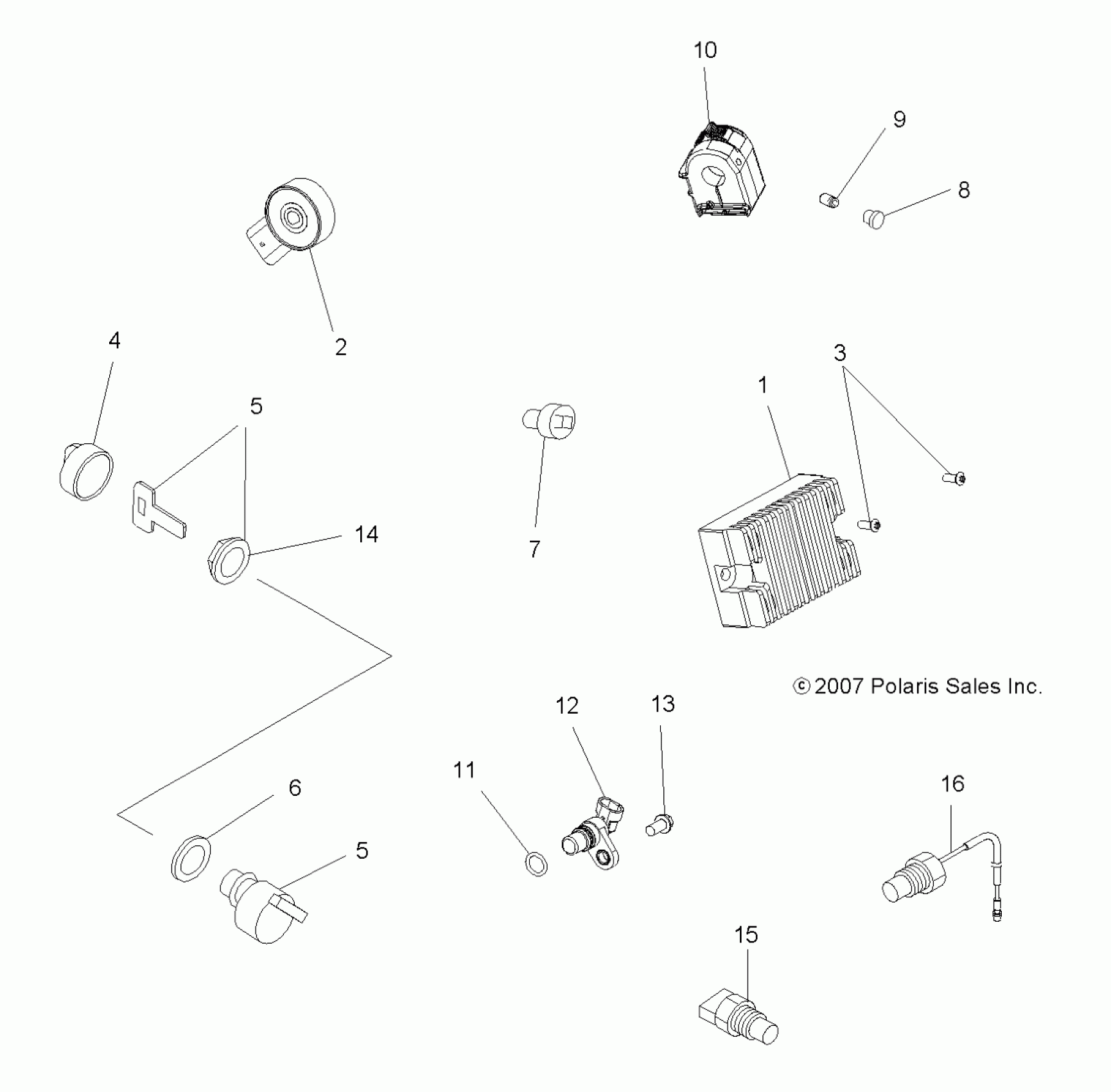

Polaris SPORTSMAN 400 HO 4X4 - A08LH46AQ/AX/AZ ELECTRICAL, SWITCHES, SENSORS and ECM - A08LH46AQ/AX/AZ (49ATVSWITCHES08SP400) Diagram

Rectifier/Regulator

4011182

$324.35

Switch, Rotary, 6 Pin [Transmission]

3233835

$142.49

Screw

7512017

$4.76

KEY SWITCH KEY COVER

5433534

$13.75

Switch, Key [Incl. 4,5,14] NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4012165

$109.27

Switch, Key [Incl. 4,5,14] NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4012165

$109.27

Washer, Wave

7555735

$3.97

Switch [Brakelight]

4110164

$204.24

Plug

5432952

$6.46

SCREW, SET

7517625

$4.76

Control, LH, Hi/Low/Off

4011835

$47.49

O-RING

3234302

$7.27

SENSOR, SPEED

4012167

$109.27

Screw

3234311

$1.19

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

Switch, Thermal [Radiator]

4011980

Unavailable

Switch, Thermal, Complete [Engine]

3085352

$129.51
