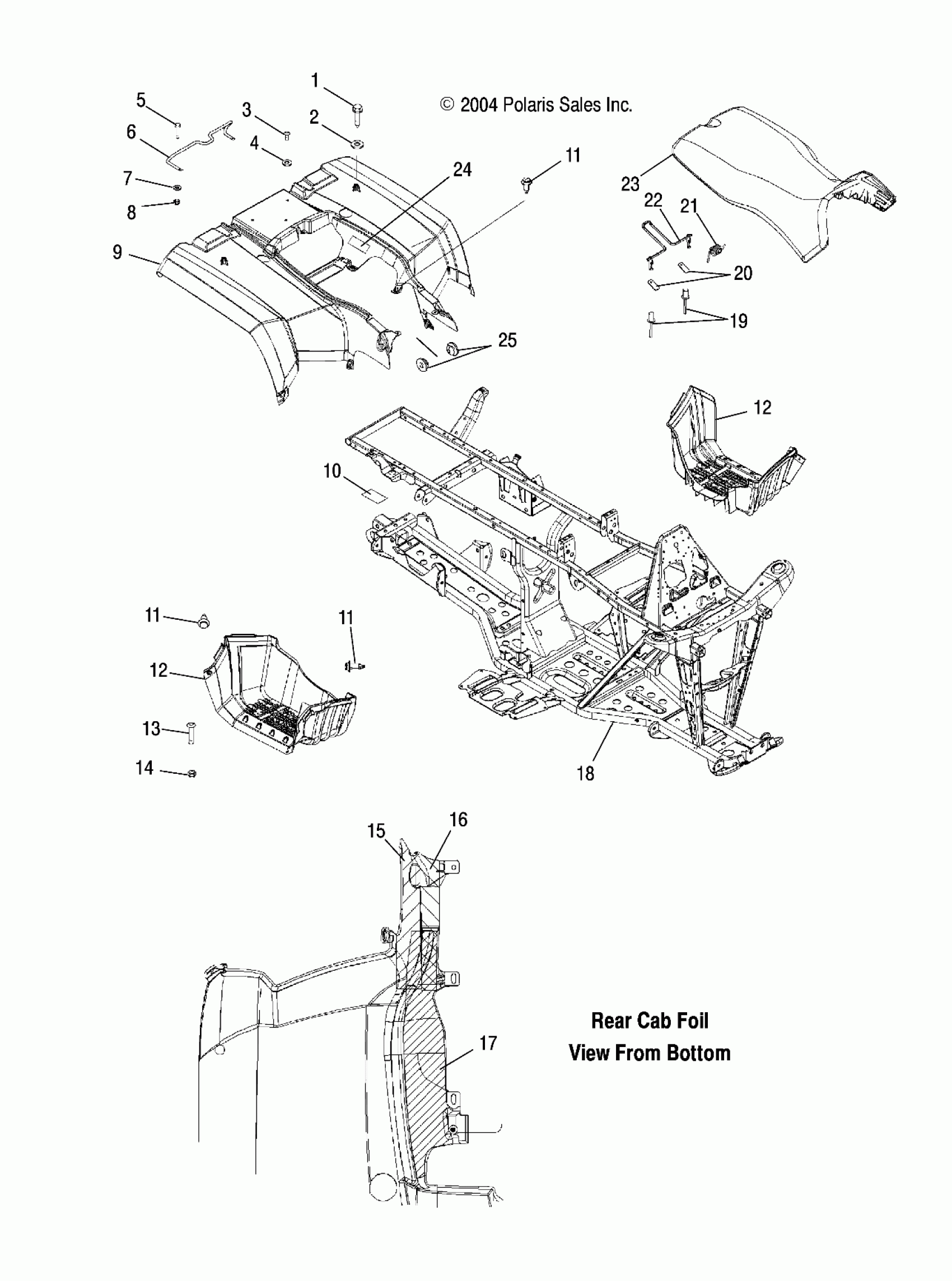

Polaris SPORTSMAN 400 - A05MH42AB REAR CAB and SEAT - A05MH42AB/AG/AH (4994139413A03) Diagram

#

Description
Price

1

Screw

7512095

$4.76

2

Washer

7555798

$0.79

3

SCREW

7512026

$1.19

4

WASHER

7556034

$2.38

5

Bolt

7511930

$2.38

6

Retainer, Seat Latch

5246076

Unavailable

7

WASHER

7555792

$4.76

8

Nut, Nylok

7541925

$0.79

9

Cab, Rear, Indy Red [AB]

5435363-293

$396.65

9

Cab, Rear, Camo Green Metallic [AH]

5435363-400

Unavailable

9

Cab, Rear, Sonic Blue [AG]

5435363-341

Unavailable

10

Decal, Hitch

7170911

Unavailable

11

Rivet

7661855

$1.19

11

Rivet

7661855

$1.19

11

Rivet

7661855

$1.19

12

Footwell, Black, LH

5435354-070

$230.70

12

Footwell, Black, RH

5435355-070

$230.70

12

Footwell, Black, LH

5435354-070

$230.70

12

Footwell, Black, RH

5435355-070

$230.70

13

SCREW

7517230

$1.19

14

Nut, Nylok

7542122

$1.19

15

Foil, Rear Cab, Front, Top

5812703

Unavailable

16

Foil, Rear, Cab, Front, Bottom

5812702

Unavailable

17

Foil, Cab, Rear

5812701

Unavailable

18

Frame, Main, Black

1014536-067

$961.89

19

RIVET

7621403

$1.19

20

BRACKET, LEVER RETAINER

5211033

$34.99

21

SPRING, LATCH

7041370

$9.52

22

LATCH, SEAT

1040387

$48.56

23

Asm., Seat, Black

2683433-070

$445.22

23

Covering, Seat, Black

2683434-070

$145.70

24

Decal, Carb/Filter Information

7079902

Unavailable

25

Grommet

5412623

$2.38
