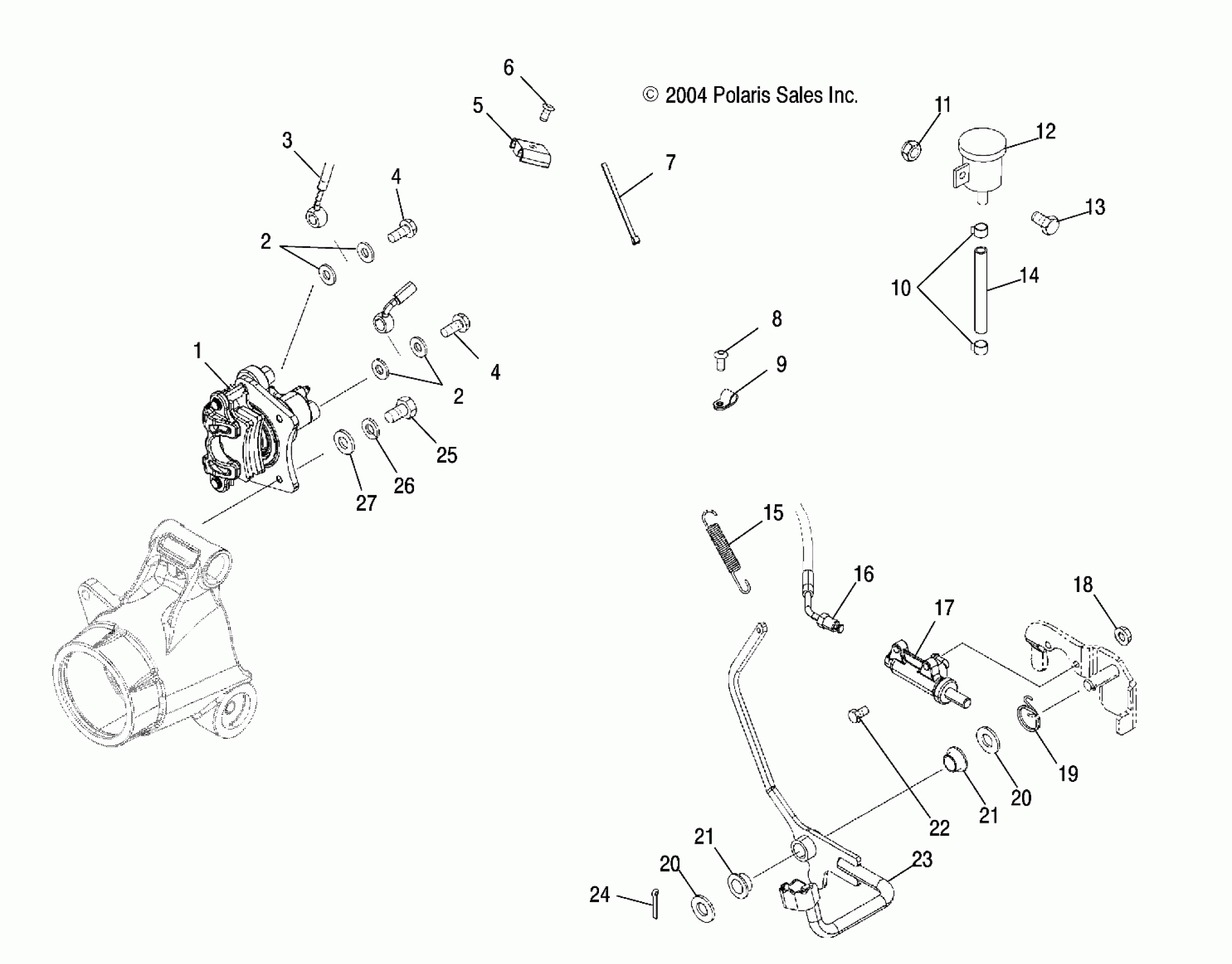

Polaris SPORTSMAN 400 - A05MH42AB MASTER CYLINDER, REAR and FOOT PEDAL - A05MH42AB/AG/AH (4994169416B08) Diagram

#

Description
Price

-

Kit, Brake Line, Rear [Incl. 16]

2202708

$93.08

-

Kit, Brake Line, Rear [Incl. 3]

2202660

$109.99

1

Asm., Caliper

1910690

$288.87

2

Seal

5410988

$4.84

2

Seal

5410988

$4.84

3

Line, Brake, Caliper, Rear

1910760

$89.03

4

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

4

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

5

CLIP, RETAINING

7670126

$4.76

6

Screw

7517756

$1.19

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

SCREW

7512024

$4.76

9

Clamp

7080499

$5.56

10

HOSE CLAMP, RED

7080003

$1.19

11

Nut

7542153

$1.59

12

Reservoir, Brake, Rear

1930854

$36.41

13

Screw

7512240

$3.97

14

Hose, Reservoir

1910315

$14.51

15

Spring, Park Lockout

7042291

$37.99

16

Line, Rear Brake

1910765

$89.03

17

Master Cylinder, Brake, Rear

1910790

$174.03

18

Nut, Nylok

7542122

$1.19

19

SPRING-TORSION,BRAKE

7041750

$8.89

20

WASHER

7555919

$4.99

20

WASHER

7555919

$4.99

21

BUSHING, PIVOT, PEDAL

5433189

$3.97

21

BUSHING, PIVOT, PEDAL

5433189

$3.97

22

Screw

7512247

Unavailable

23

Pedal, Brake

1910814-067

Unavailable

24

PIN, COTTER

7661401

$0.79

25

SCREW

7512365

$1.19

26

WASHER, SPRING LOCK

7552901

$1.19

27

WASHER-.344X.688X.063 FL-Y

7558402

$0.99
