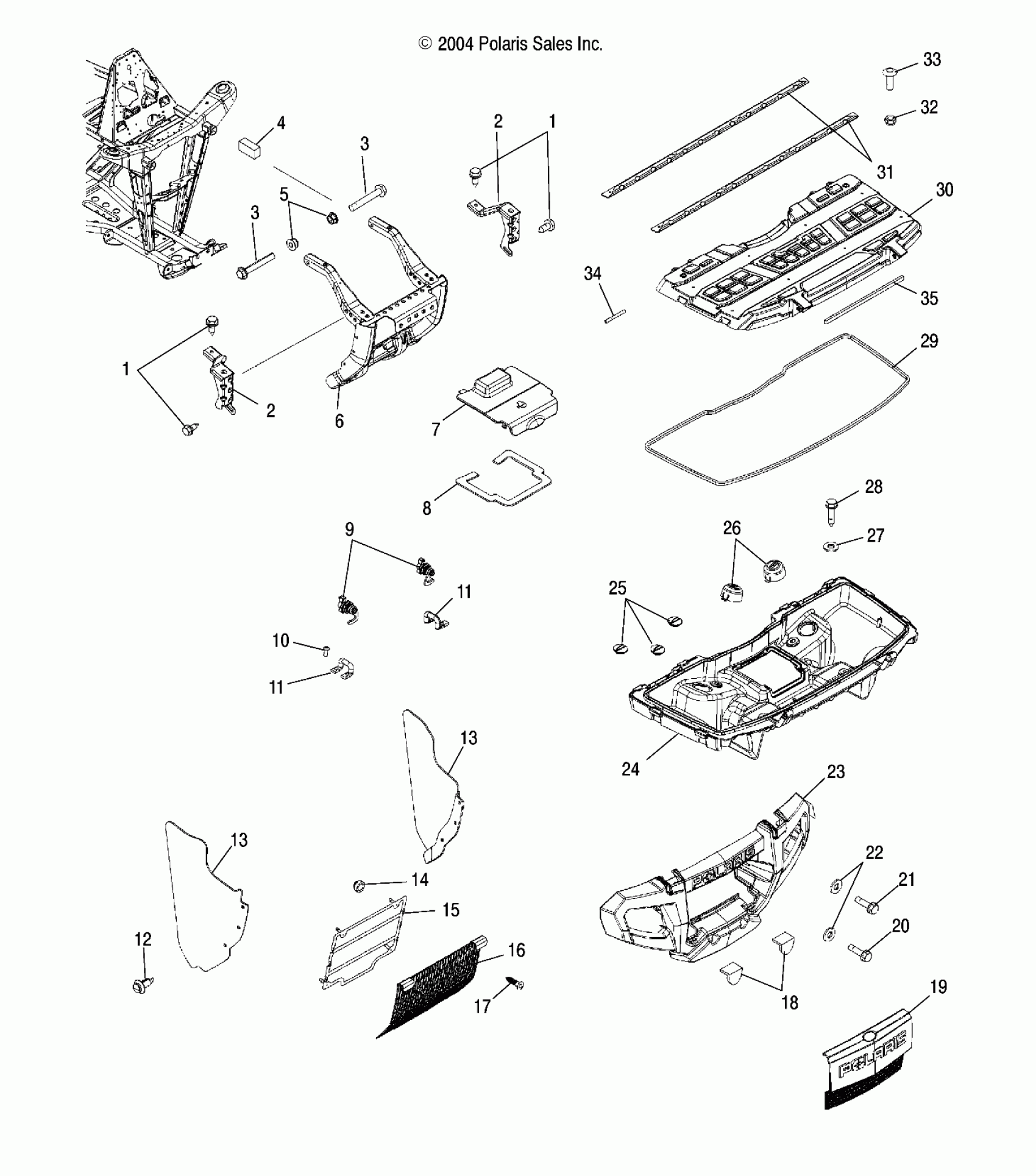

Polaris SPORTSMAN 400 - A05MH42AB FRONT STORAGE and BUMPER MOUNTING - A05MH42AB/AG/AH (4994139413A07) Diagram

#

Description
Price

1

SCREW

7515399

$1.19

1

SCREW

7515399

$1.19

2

Support, Rack, RH

1014592-067

Unavailable

2

Support, Rack, LH

1014591-067

$204.99

2

Support, Rack, RH

1014592-067

Unavailable

2

Support, Rack, LH

1014591-067

$204.99

3

Screw, Flange

7518341

$4.76

3

Screw, Flange

7518341

$4.76

4

PLUG, FRAME

5810467

Unavailable

5

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

6

Guard, Brush

1014636-067

$319.51

7

Cover, Radiator

5435629

$52.60

8

Seal, Radiator Cover

5812778

Unavailable

9

Latch, RH

7081125

Unavailable

9

Latch, LH

7081145

Unavailable

10

SCREW

7512076

$1.19

11

Latch, Wire

5334257

$10.51

11

Latch, Wire

5334257

$10.51

12

Rivet

7661855

$1.19

13

Shield, Side, Radiator, LH

5434314

$42.74

13

Shield, Side, Radiator, RH

5434315

Unavailable

13

Shield, Side, Radiator, LH

5434314

$42.74

13

Shield, Side, Radiator, RH

5434315

Unavailable

14

Grommet

5412504

$3.97

15

Cover, Radiator

5435046

$52.60

16

Grill, Brush Guard

5247507-067

$64.99

17

Screw

7518046

Unavailable

18

Cover, Bumper, LH (If built before 11/22/04)

5435701

Unavailable

18

Cover, Bumper, RH (If built before 11/22/04)

5435702

Unavailable

19

Panel, Bumper, Front

5435357-070

$56.65

20

Screw

7518383

$3.97

21

SCREW

7518382

$5.69

22

Washer, Flat

7556341

$1.99

23

Asm., Bumper, Front, Black [Incl. Warning Decal](If built before 11/22/04)

2632865-070

$234.99

23

Asm., Bumper, Front, Black [Incl. Warning Decal](If built after 11/22/04)

2633178-070

$234.99

24

Asm., Box, Lower, Front

1202838

$384.99

25

Plug

5412352

$3.79

26

Cover, Strut

5435628

$40.46

27

WASHER, FLAT

7555960

$3.97

28

Screw, Flange

7517208

$1.98

29

Seal

5521693

$28.32

30

Asm., Front Cover (Incl. 35 and Warning Decal)

2633162

$157.84

31

Channel, Lid, Front

5247653-418

$77.44

32

Nut, Nylok

7542122

$1.19

33

Screw

7518427

$1.19

34

Pin, Hinge, Front

5134576

$6.35

35

Seal, Lid/Bumper

5521706

$28.32
