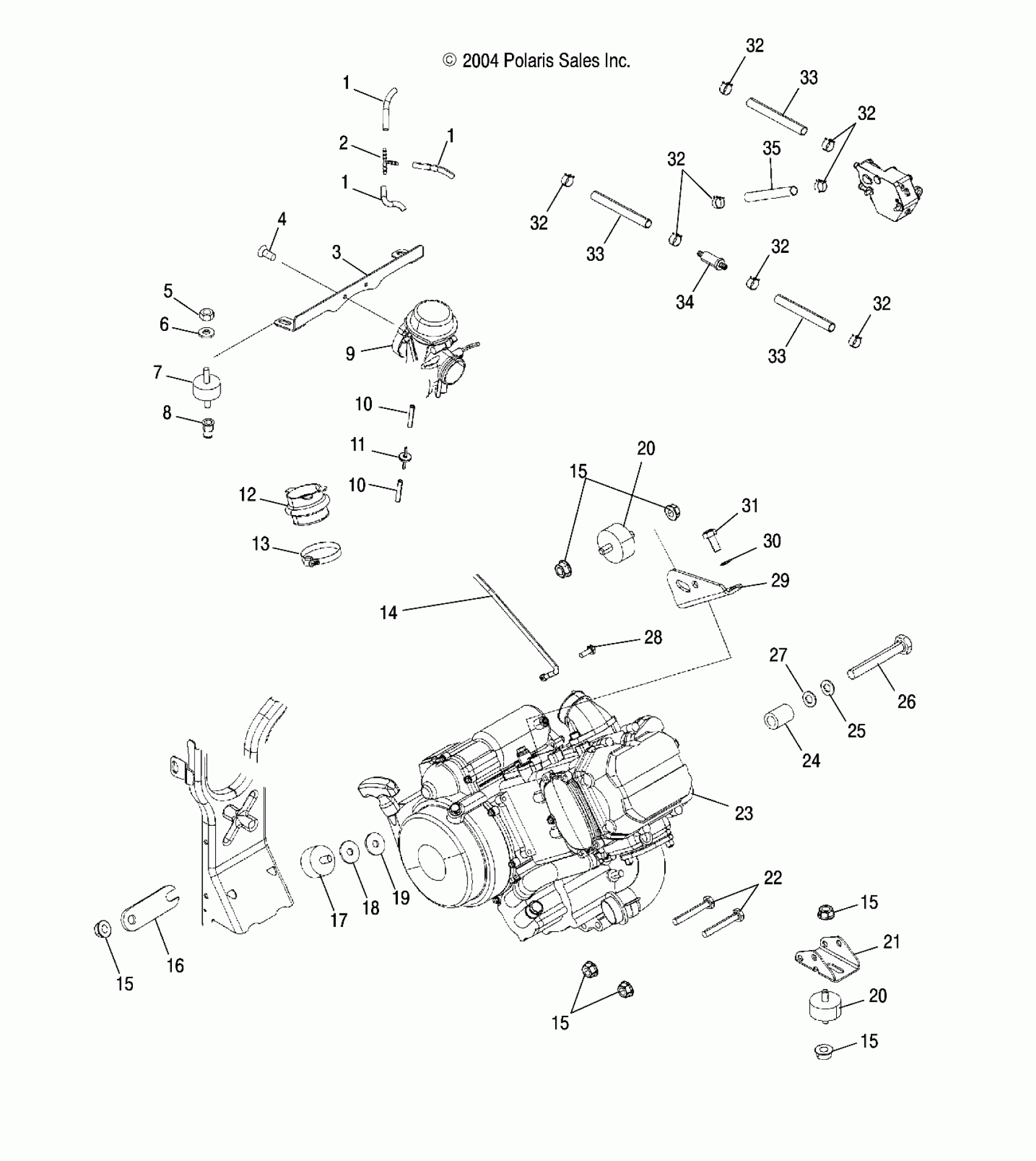

Polaris SPORTSMAN 400 - A05MH42AB ENGINE MOUNTING - A05MH42AB/AG/AH (4994139413A13) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.52

3

Strap, Carburetor Mount

5247154

Unavailable

4

Screw and Washer

3084205

$3.97

5

NUT

7542105

$3.97

6

WASHER

7558203

$3.17

7

Mount, Carb

3110050

$12.99

8

INSERT

7542143

$5.56

9

ASM., CARBURETOR [SEE CARBURETOR PG. D8, REF. 9]

----

Unavailable

10

LINE, FUEL

8360009-600

Unavailable

10

LINE, FUEL

8360009-600

Unavailable

11

Valve, Check Vent

7051011

Unavailable

12

BOOT, CLUTCH INTAKE

5412487

Unavailable

13

Clamp, Narrow Band

7080511

$4.76

14

CABLE, BLACK, FRAME/ENGINE

4010895

Unavailable

15

NUT, FLANGE LOCK

7547108

$4.76

15

NUT, FLANGE LOCK

7547108

$4.76

15

NUT, FLANGE LOCK

7547108

$4.76

15

NUT, FLANGE LOCK

7547108

$4.76

15

NUT, FLANGE LOCK

7547108

$4.76

16

Strap, Frame Support

5224658-067

Unavailable

17

Mount, Rubber, Front

3110046

Unavailable

18

Washer

7555815

$3.97

19

Washer, Flat

7555797

$3.97

20

Mount, Rubber, Top

3110044

$44.51

20

Mount, Rubber, Top

3110044

$44.51

21

Mount, Engine, Front

5241150

Unavailable

22

Screw

7518415

$5.22

23

Engine, Short Block [EH42PLE053] NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f

3087023

Unavailable

24

BUSHING-.437 X.770 X.50

5430261

$7.14

25

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

26

BOLT

7512566

$33.24

27

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

28

ASM., BOLT AND WASHER

3082038

$3.97

29

Mount, Engine, Top

5241453

Unavailable

30

WASHER, SPRING LOCK

7552901

$1.19

31

BOLT

7512315

$4.76

32

HOSE CLAMP, RED

7080003

$1.19

32

HOSE CLAMP, RED

7080003

$1.19

32

HOSE CLAMP, RED

7080003

$1.19

32

HOSE CLAMP, RED

7080003

$1.19

32

HOSE CLAMP, RED

7080003

$1.19

32

HOSE CLAMP, RED

7080003

$1.19

33

Hose, Fuel

8450103

Unavailable

33

Hose, Fuel

8450103

Unavailable

33

Hose, Fuel

8450103

Unavailable

34

FILTER

2530009

$6.46

35

Line, Fuel

8450040-600

Unavailable
