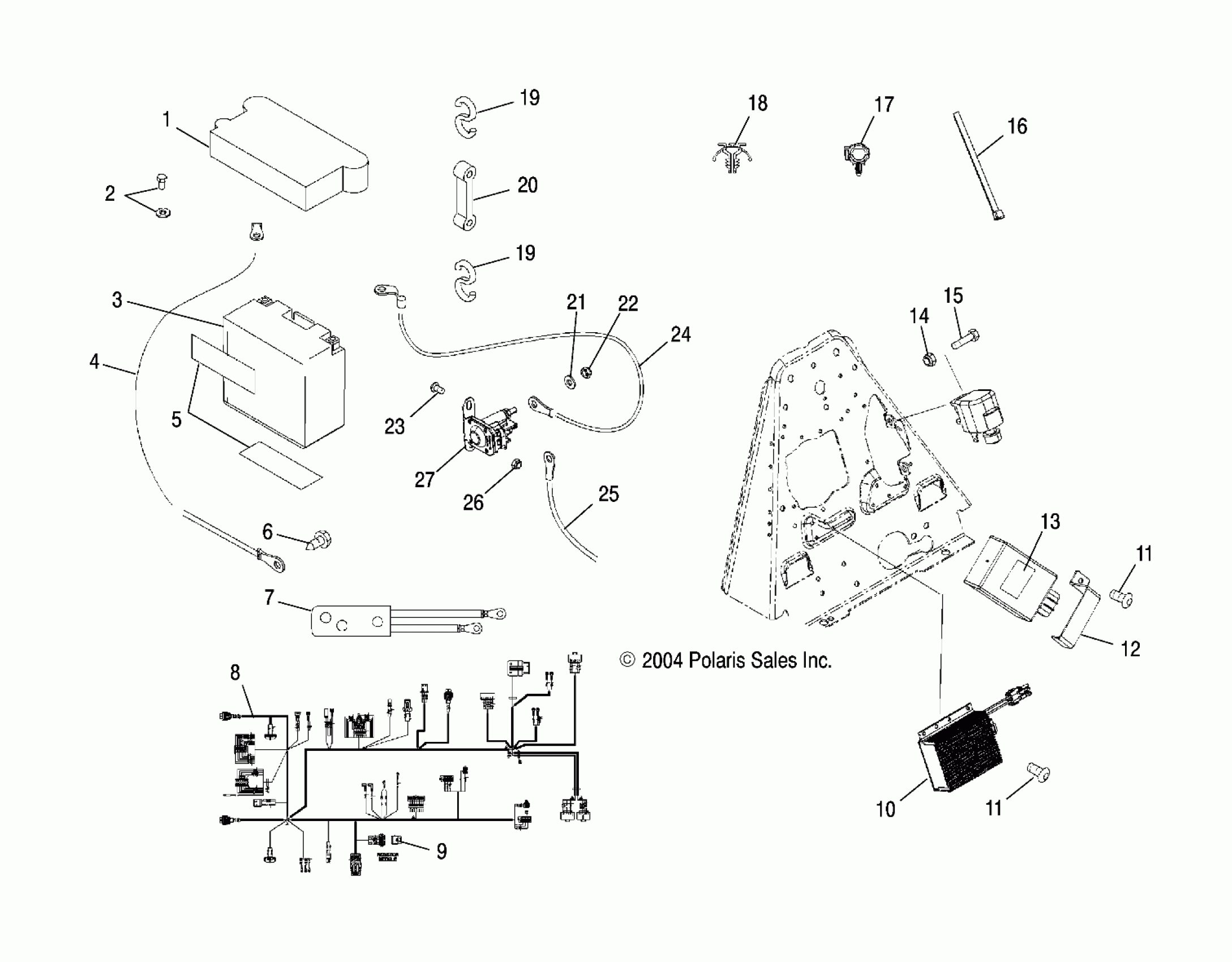

Polaris SPORTSMAN 400 - A05MH42AB ELECTRICAL/TAILLIGHT - A05MH42AB/AG/AH (4994169416C13) Diagram

#

Description
Price

1

Cover, Battery

5431769

$15.37

2

Kit, Battery Bolt, Short

2202848

$4.99

3

BATTERY

4011138

$128.24

4

CABLE, BATTERY/FRAME

4011139

$44.51

5

PAD-BATTERY

5810290

$7.27

6

SCREW

7512232

$1.19

7

Harness, Winch

2410535

$93.08

8

Kit, Fusible Link

2202147

$84.99

8

Harness, Main

2410466

Unavailable

9

Kit, Harness, Resistor Module

2204890

$161.49

10

Module, Controller

4011110

$159.99

11

SCREW

7512024

$4.76

11

SCREW

7512024

$4.76

12

BRACKET, CDI

5246747

$8.08

13

Pad, Rack Mount

5810317

Unavailable

14

Nut, Nylok

7541925

$0.79

15

Screw

7512007

$3.97

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

17

CLIP, ROSEBUD

4020139

$4.76

18

MOUNT, CABLE TIE

7080965

$7.27

19

Hook, Battery Strap

7010032

$1.59

19

Hook, Battery Strap

7010032

$1.59

20

STRAP, BATTERY HOLDDOWN

5412499

$4.84

21

WASHER, SPRING LOCK

7552801

$1.59

22

Nut

7547283

$3.17

23

Screw

7512027

$1.19

24

Cable, Battery/Solenoid

4010094

Unavailable

25

Cable, Solenoid/Starter

4010093

$48.56

26

Nut

7518287

$3.17

27

Switch, Magnetic (If built after 1/10/05)

4011251

$76.89

27

Switch, Magnetic (If built before 1/10/05)

4011072

$76.89
