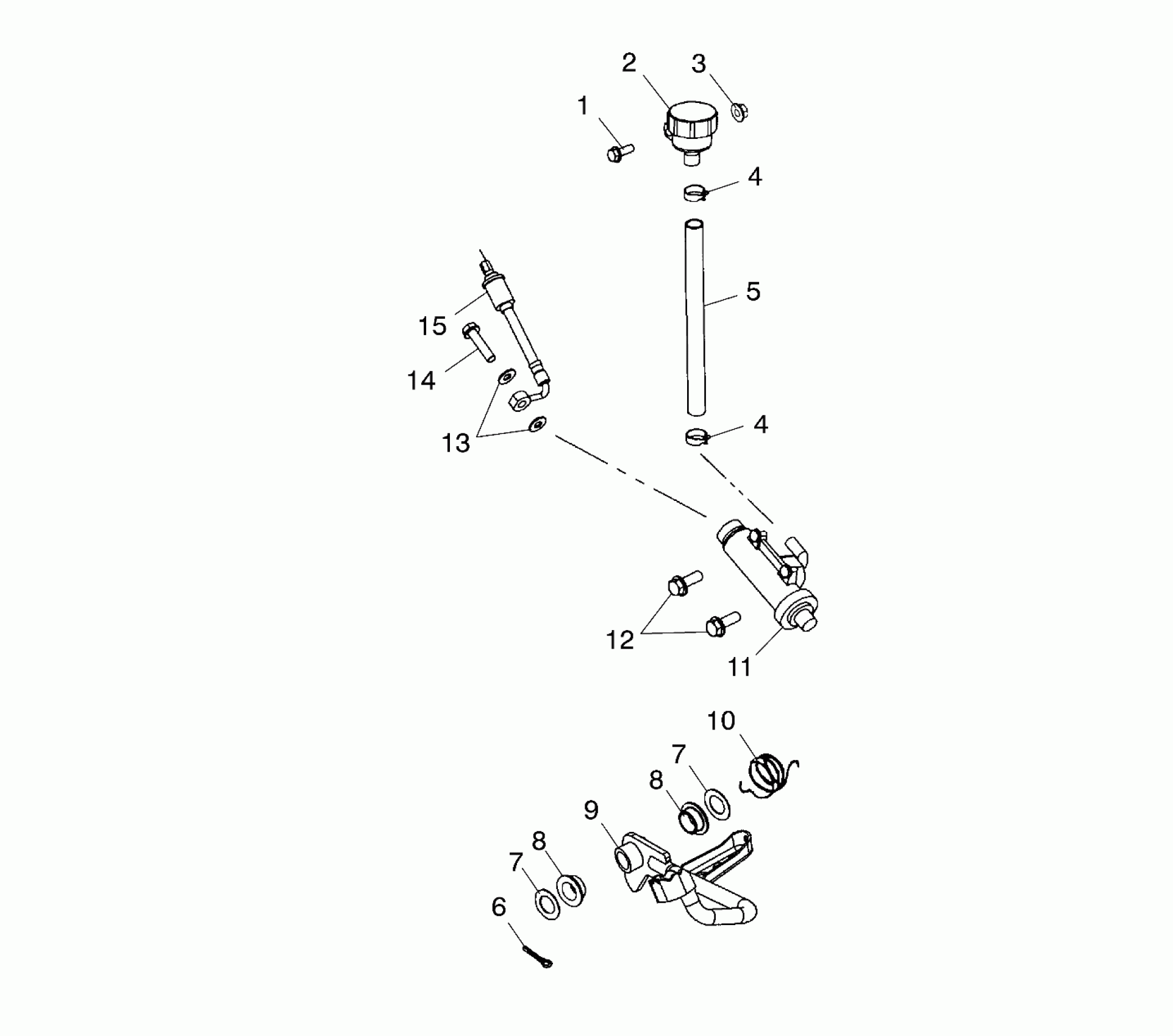

Polaris SPORTSMAN 400 - A03CH42AA/AB/AC REAR MASTER CYLINDER/FOOT PEDAL - A03CH42AA/AB/AC (4975377537B02) Diagram

#

Description
Price

1

Screw

7512240

$3.97

2

Reservoir, Brake, Rear

1930854

Unavailable

3

Nut

7542153

$1.59

4

HOSE CLAMP, RED

7080003

$1.19

4

HOSE CLAMP, RED

7080003

$1.19

5

Hose, Reservoir

1910315

$14.51

6

PIN, COTTER

7661401

$0.79

7

WASHER

7555919

$4.99

7

WASHER

7555919

$4.99

8

BUSHING-PEDAL PIVOT

5431107

$8.73

8

BUSHING-PEDAL PIVOT

5431107

$8.73

9

Rod, Brake

1910280-067

Unavailable

10

SPRING-TORSION,BRAKE

7041750

$8.89

11

Master Cylinder, Brake, Rear

1910301

$174.03

12

Screw

7512247

Unavailable

13

Seal

5410988

$4.84

14

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

15

Line, Rear Brake

1910631

$93.08
