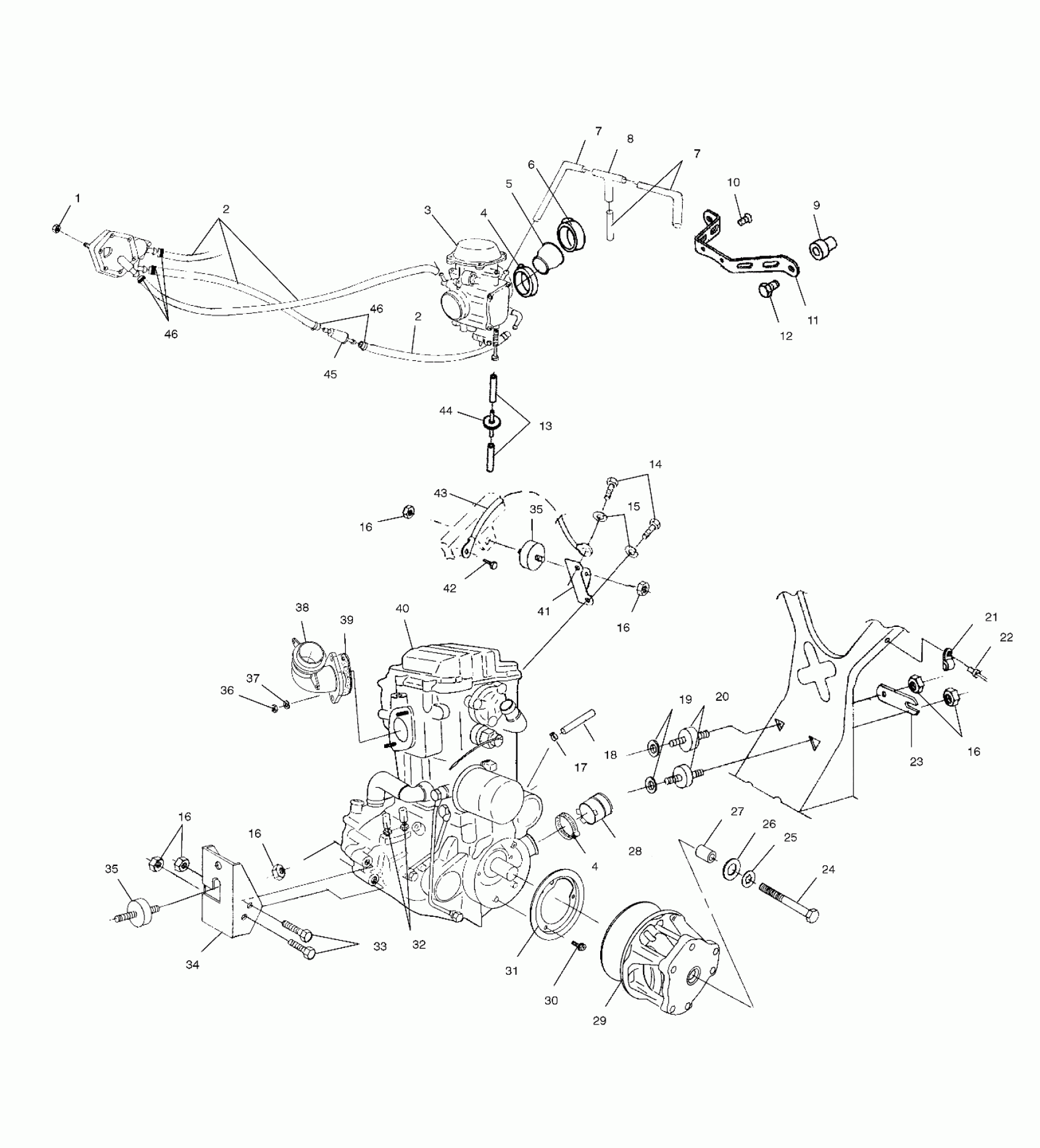

Polaris SPORTSMAN 400 - A03CH42AA/AB/AC ENGINE MOUNTING - A03CH42AA/AB/AC (4975377537A13) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

Line, Fuel

8450040-600

Unavailable

2

Line, Fuel

8450040-600

Unavailable

3

ASM., CARBURETOR [SEE CARBURETOR PG. D6, REF. 9]

-------

Unavailable

4

Clamp, Narrow Band

7080511

$4.79

4

Clamp, Narrow Band

7080511

$4.79

5

Boot, Carburetor

5410995

Unavailable

6

CLAMP, NARROW BAND

7080909

$7.99

7

Line, Fuel

8450003-1525

Unavailable

7

Line, Fuel

8450003-1525

Unavailable

8

FITTING, TEE

7052075

$9.59

9

Nut, Well

7541923

$5.59

10

SCREW AND WASHER [SEE CARBURETOR PG. D6, REF. 8]

-------

Unavailable

11

Strap, Carburetor Mount

5246551

Unavailable

12

Bolt

7512247

$2.39

13

LINE, FUEL

8360009-600

Unavailable

14

BOLT

7512315

$4.79

15

WASHER, SPRING LOCK

7552901

$1.49

16

NUT, FLANGE LOCK

7547108

$4.79

16

NUT, FLANGE LOCK

7547108

$4.79

16

NUT, FLANGE LOCK

7547108

$4.79

16

NUT, FLANGE LOCK

7547108

$4.79

16

NUT, FLANGE LOCK

7547108

$4.79

17

Clamp, Spring Hose

7080694

$6.53

18

HOSE, BREATHER [SEE AIR BOX PG. A12, REF. 18]

-------

Unavailable

19

Washer

7555815

$3.99

20

Mount, Rubber, Front

3110046

Unavailable

21

Clamp, Nylon

7080539

$4.79

22

Rivet

7621462

$1.49

23

Strap, Frame Support

5224658-067

Unavailable

24

BOLT

7512566

$30.79

25

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

26

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

27

BUSHING-.437 X.770 X.50

5430261

$7.19

28

Boot, Clutch Intake

5410421

$11.19

29

ASM., DRIVE CLUTCH, BRAKING [SEE DRIVE CLUTCH PG. C4, REF. 14]

-------

Unavailable

30

SCREW AND WASHER [SEE CRANKCASE PG. C14, REF. 6]

-------

Unavailable

31

BRACKET, RETAINER, SEAL [SEE CLUTCH COVER PG. C6, REF. 22]

-------

Unavailable

32

CLAMP-HOSE,.875-SS

7080474

$8.40

33

SCREW

7515417

$4.79

34

Mount, Engine, Front

5241150

Unavailable

35

Mount, Rubber, Top

3110044

Unavailable

35

Mount, Rubber, Top

3110044

Unavailable

36

NUT [SEE CYLINDER PG. D1, REF. 23]

-------

Unavailable

37

WASHER [SEE CYLINDER PG. D1, REF. 22]

-------

Unavailable

38

Manifold, Black

1261043-029

Unavailable

39

GASKET, EXHAUST [SEE CYLINDER PG. D1, REF. 34]

-------

Unavailable

40

Engine, Short Block [EH42PLE052] NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f

3087023

Unavailable

41

Mount, Engine, Top

5241453

$7.99

42

SCREW

7512232

$1.49

43

Cable, Ground, Engine

4010132

Unavailable

44

Valve, Check Vent

7051011

Unavailable

45

FILTER

2530009

$5.65

46

HOSE CLAMP, RED

7080003

$1.49

46

HOSE CLAMP, RED

7080003

$1.49
