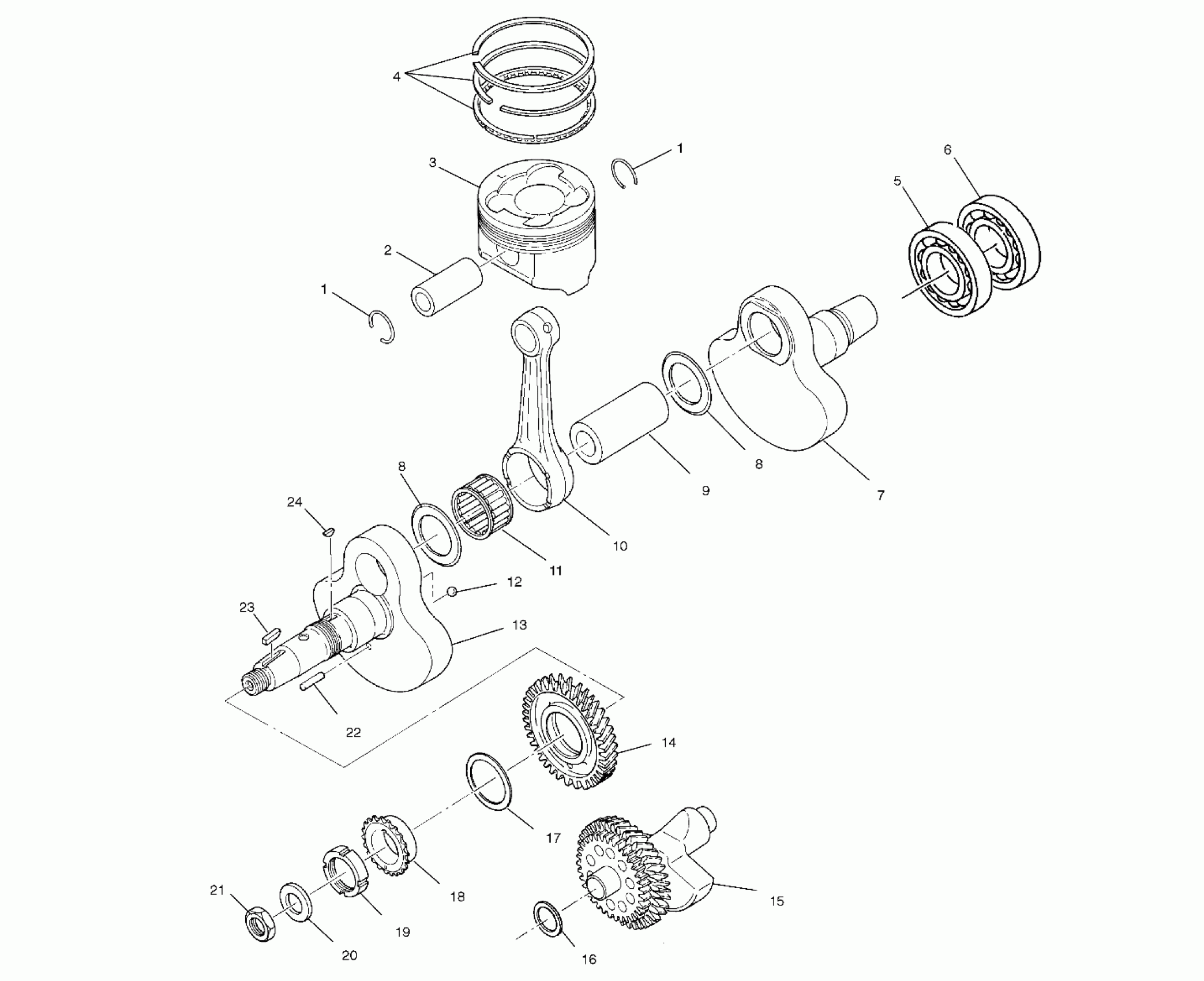

Polaris SPORTSMAN 400 - A03CH42AA/AB/AC CRANKSHAFT AND PISTON - A03CH42AA/AB/AC (4975377537D02) Diagram

#

Description
Price

1

CLIP

3085534

Unavailable

1

CLIP

3085534

Unavailable

2

Pin, Piston

3084886

Unavailable

3

Piston Set [Std][Incl. 2]

3087230

Unavailable

3

Piston Set [0.25 mm O/S][Incl. 2]

3087231

Unavailable

3

Piston Set [0.50 mm O/S][Incl. 2]

3087232

Unavailable

4

Ring Set, Piston [Std]

3087233

$63.99

4

Ring Set, Piston [0.25 mm O/S]

3087234

$63.99

4

Ring Set, Piston [0.50 mm O/S]

3087235

$63.99

5

BEARING, BALL

3085815

$43.99

6

BEARING, BALL

3080676

$39.99

7

Crankshaft 2

3087229

$363.99

8

Spacer, Crank Pin

3085344

$12.79

8

Spacer, Crank Pin

3085344

$12.79

9

Pin, Crank

3085341

Unavailable

10

Rod, Connecting

3086206

Unavailable

11

Bearing, Large End

3085400

$78.56

12

BALL, STEEL

3085024

$5.59

13

Asm., Crankshaft [Incl. 7-14,22]

3087228

$615.08

13

Crankshaft 1

3085339

$164.79

14

Balancer, Gear 1

3085852

Unavailable

15

Shaft, Balancer

3085404

Unavailable

16

Spacer [1.2]

3084897

$6.39

16

Spacer [0.8]

3084895

$6.39

16

Spacer [1.0]

3084896

$6.39

17

Spacer [1.2]

3084894

$19.99

17

Spacer [0.6]

3240088

$10.39

17

Spacer [1.0]

3084893

$19.99

17

Spacer [0.8]

3084892

$12.79

18

SPROCKET 1

3084882

Unavailable

19

NUT, SLIT

3085528

$35.99

20

Washer

3083904

Unavailable

21

NUT, LOCK

3083905

Unavailable

22

Pin, Dowel

3085346

Unavailable

23

KEY

3081447

Unavailable

24

Key, Woodruff

3080130

Unavailable
