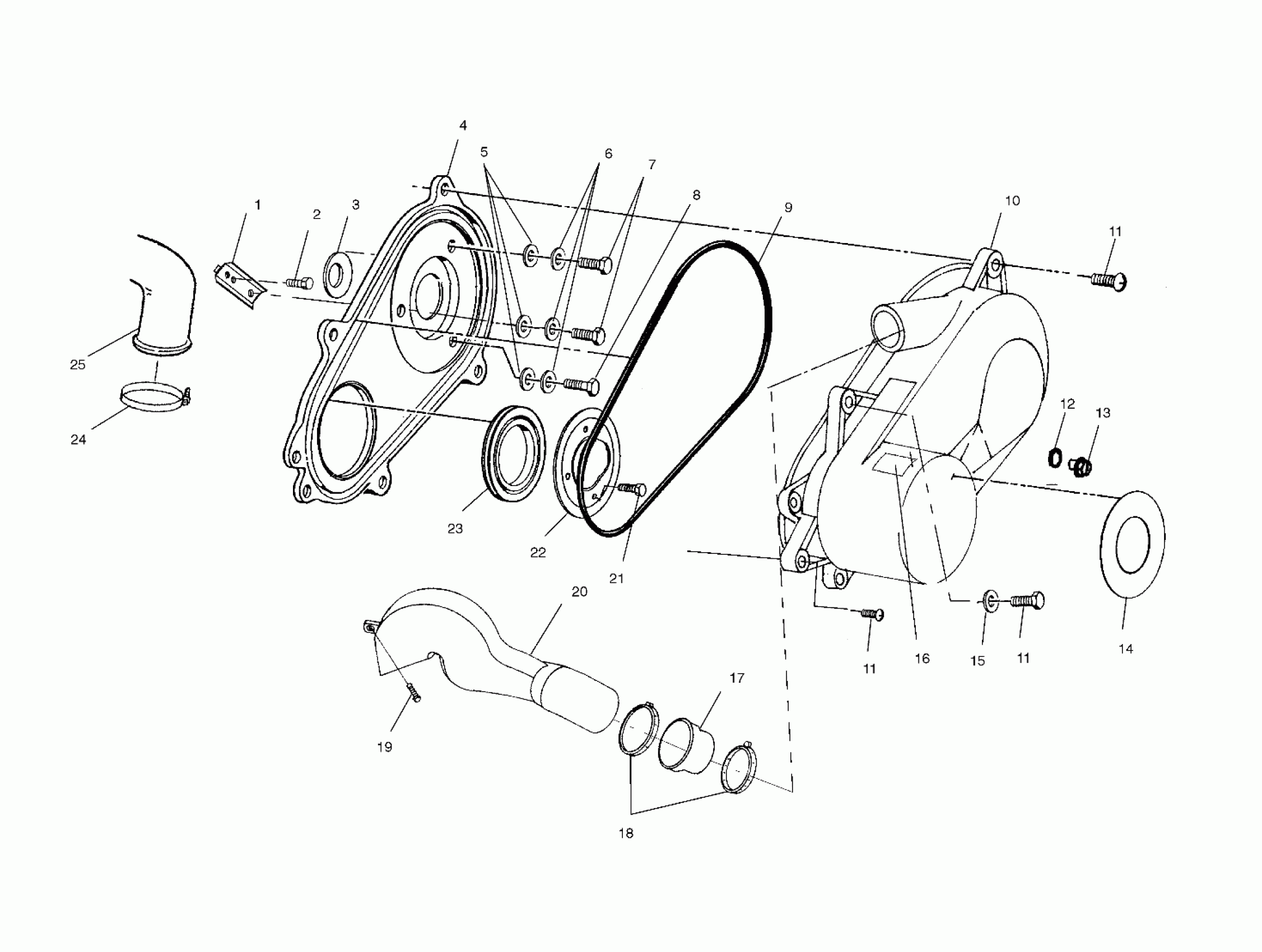

Polaris SPORTSMAN 400 - A03CH42AA/AB/AC CLUTCH COVER - A03CH42AA/AB/A (4986088608C07) Diagram

#

Description
Price

1

Bracket, Cover, Clutch

5246474

$2.15

2

BOLT

7512240

$3.99

3

Seal, Cover Case, Transmission

5410489

$13.59

4

Kit, Inner Clutch Cover [Incl. 11]

2201851

$125.46

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

6

WASHER, SPRING LOCK

7552801

$1.59

7

Bolt

7515179

$2.39

8

Screw

7515180

Unavailable

9

Seal, Cover, Clutch

5521578

Unavailable

10

Asm., Clutch Cover, Outer

2633262

$169.87

11

SCREW

7512094

$1.59

11

SCREW

7512094

$1.59

11

SCREW

7512094

$1.59

12

O RING-.364X.504X.07

5410542

Unavailable

13

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

14

Decal, "Automatic Transmission"

7074782

Unavailable

15

Washer

7555935

$2.39

16

Decal, Warning, Clutch Cover

7078689

Unavailable

17

Boot, Duct

5411489

Unavailable

18

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

19

SCREW

7512232

$1.49

20

Duct, Clutch Outlet

5433980

Unavailable

21

SCREW AND WASHER [SEE CRANKCASE PG., REF. 6]

-------

Unavailable

22

BRACKET, CLUTCH, SEAL

5242046

$35.99

23

Seal, Cover Case

5410575

Unavailable

24

Clamp, Narrow Band

7080511

$4.79

25

DUCT, CLUTCH AIR INLET [SEE AIR BOX PG., REF. 9]

-------

Unavailable
