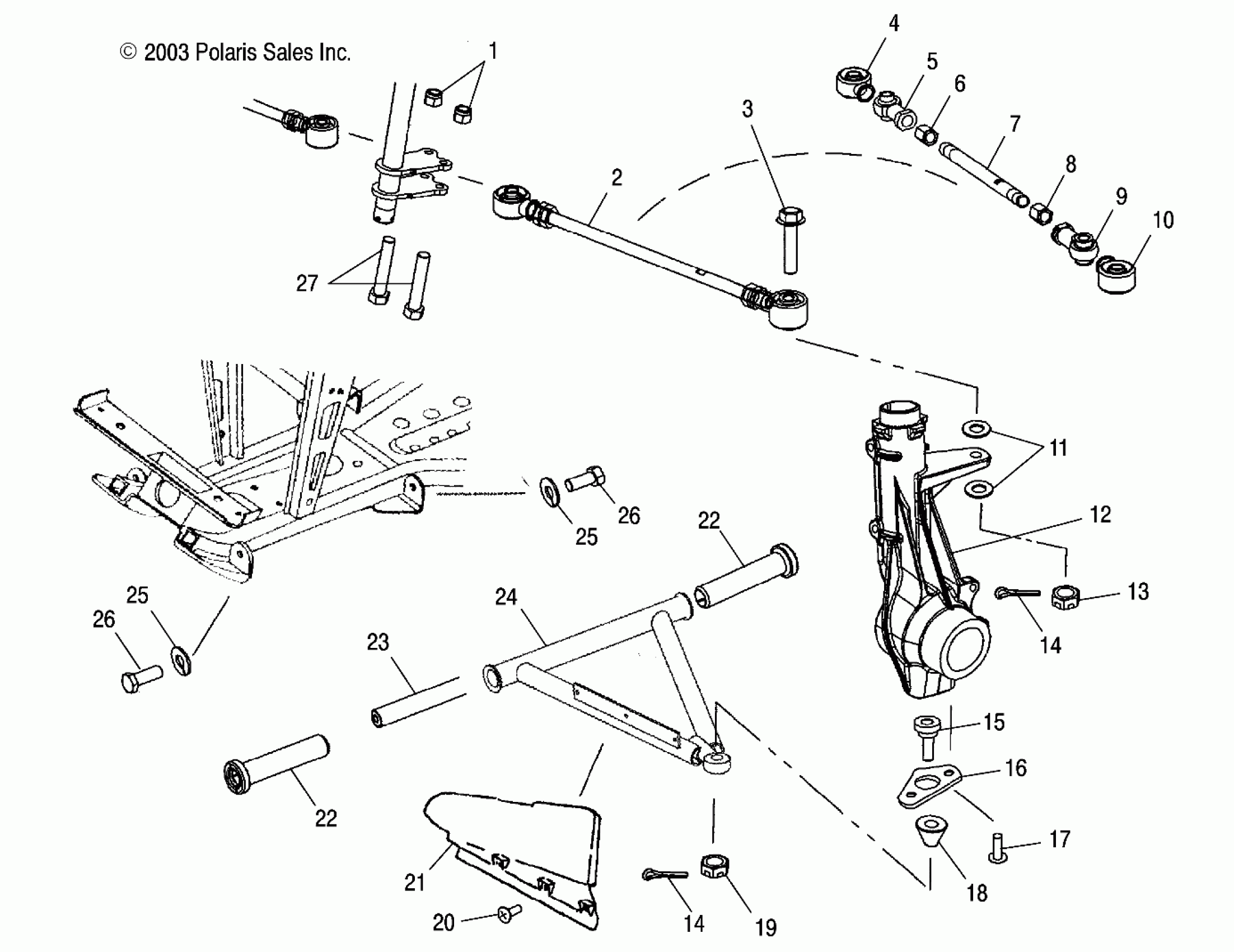

Polaris SPORTSMAN 400 - A03CH42AA/AB/AC A-ARM/STRUT MOUNTING - A03CH42AA/AB/AC (4975417541C02) Diagram

#

Description
Price

1

Nut, FLEXLOC

7542439

$1.49

2

Asm., Tie Rod

1820805

Unavailable

3

Bolt

7517909

$5.59

4

Boot, Seal, Rod End

5411291

Unavailable

5

Rod End, RH

7061034

$54.04

6

Nut, Jam

7542711

$2.39

7

Tie Rod

5020926

$39.99

8

Nut, Jam, LH

7547028

$2.39

9

Rod End, LH

7061054

Unavailable

10

Boot, Seal, Rod End

5411920

Unavailable

11

Washer, Flat

7556099

$1.59

12

ASM., HEAVY HUBSTRUT [SEE FRONT STRUT PAGE, REF. 16]

-------

Unavailable

13

Nut

7547177

$2.39

14

Pin, Cotter

7661203

$1.49

14

Pin, Cotter

7661203

$1.49

15

Joint, Ball

7080927

$76.89

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

Boot, Rubber

5410548

Unavailable

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

Screw

7512084

$1.49

21

Shield, CV Joint, LH

5431837

Unavailable

21

Shield, CV Joint, RH

5431838

Unavailable

22

Bushing, A-Arm, Long

5434551

$5.01

22

Bushing, A-Arm, Long

5434551

$5.01

23

Shaft, A-Arm

5133806

$30.79

24

Kit, A-Frame, LH [Incl. 13,22,23,25,26]

2202280

$143.99

24

Kit, A-Frame, RH [Incl. 13,22,23,25,26]

2202281

$143.99

25

Washer, Dish Lock

7571611

$3.19

25

Washer, Dish Lock

7571611

$3.19

26

Screw

7512492

$1.49

26

Screw

7512492

$1.49

27

Screw

7515415

$1.49
