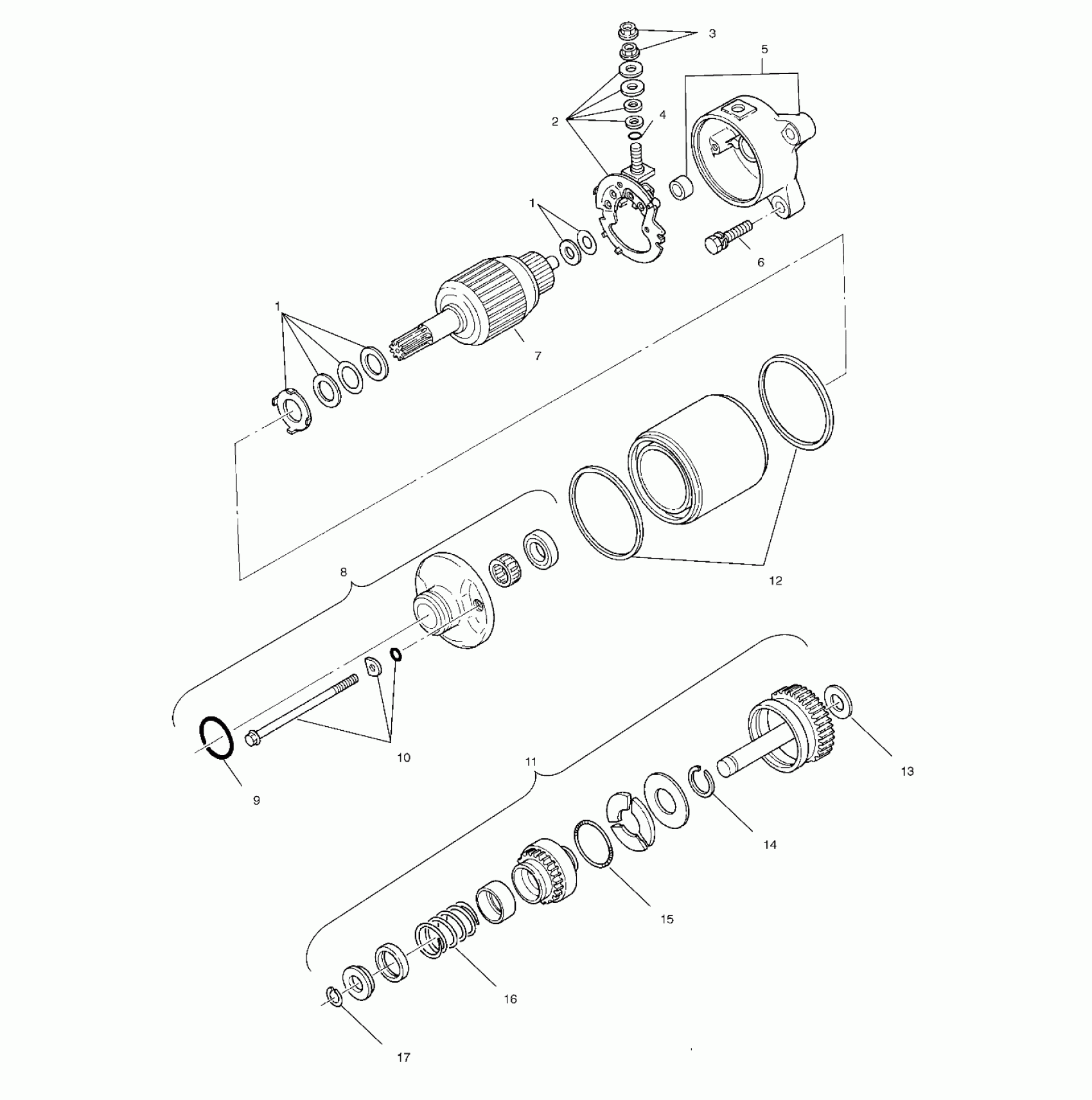

Polaris SPORTSMAN 400 - A02CH42AB STARTING MOTOR - A02CH42AA (4968536853D12) Diagram

#

Description
Price

-

Starting Motor (Incl. 1-5,7-10,12) (Incl. 1-5,7-10,12)

3084981

Unavailable

1

Washer Set

3084982

Unavailable

1

Washer Set

3084982

Unavailable

2

Brush, Carbon

3084406

Unavailable

3

NUT, FLANGE

3083649

$3.99

4

O-RING

3084408

Unavailable

5

Bracket, Rear

3085034

$91.99

6

Bolt and Washer

3082038

$3.99

7

Armature

3085353

Unavailable

8

Asm., Front Bracket (Incl. 9) (Incl. 9)

3085033

$137.60

9

O-Ring

3240114

$5.59

10

Asm., Bolt Set (Incl. 4) (Incl. 4)

3084983

$23.99

11

Asm., Gear Shaft (Incl. 13-17) (Incl. 13-17)

3087030

Unavailable

12

RING, RUBBER

3084405

Unavailable

13

Washer, Gear Shaft

3083737

Unavailable

14

CLIP

3084412

$9.59

15

SPRING, WEIGHT

3084411

$15.67

16

SPRING, RETURN

3084410

$2.47

17

CLIP

3084409

$7.19
