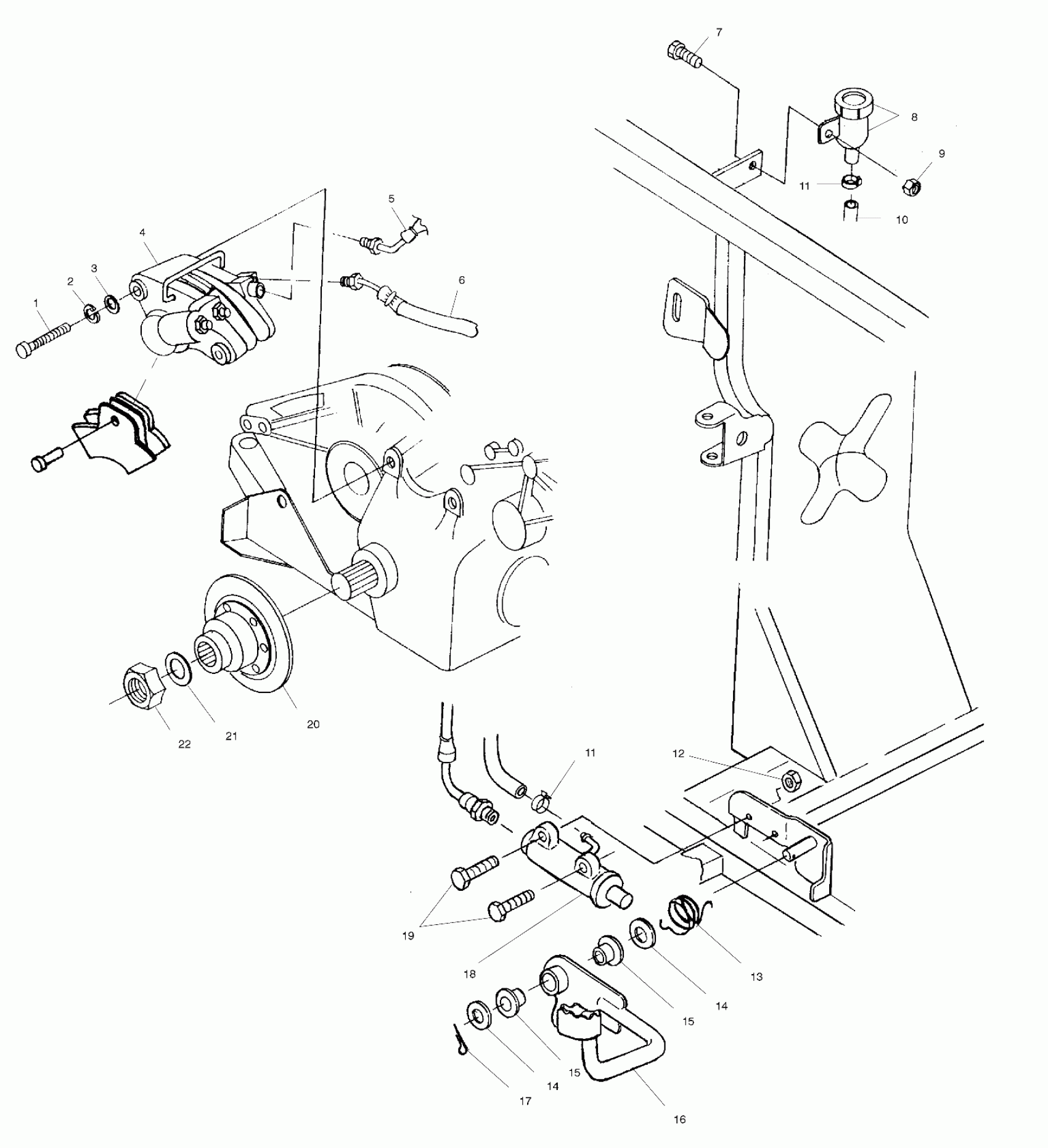

Polaris SPORTSMAN 400 - A02CH42AB REAR BRAKE/FOOT PEDAL - A02CH42AA (4968536853B01) Diagram

#

Description
Price

1

Screw

7515497

$3.99

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555806

$1.49

4

Kit, Seal

2201180

$64.75

4

Kit, Bleeder Replacement

2201428

$27.99

4

Piston, STEPPED BORE

2201181

$83.33

4

Kit, Brake Pad (Incl. Spacer and Pin) (Incl. Spacer and Pin)

2201399

$31.75

4

Asm., Caliper, Rear

1910553

$259.99

5

Line, Rear Brake

1910479

$89.03

6

Line, Brake, Stainless Steel (See Controls-Master Cylinder Brake Line Pg. B4,Ref. 8) (See Controls-Master Cylinder Brake Line Pg. B4,Ref. 8)

-------

Unavailable

7

BOLT

7512240

$3.99

8

Reservoir, Brake, Rear

1930854

$35.99

9

Nut

7542153

$1.59

10

Hose, Reservoir

1910315

Unavailable

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

12

Nut, Nylok

7542122

$1.49

13

SPRING-TORSION,BRAKE

7041750

$8.79

14

WASHER

7555919

$4.99

14

WASHER

7555919

$4.99

15

BUSHING-PEDAL PIVOT

5431107

$8.79

15

BUSHING-PEDAL PIVOT

5431107

$8.79

16

Rod, Brake

1910280-067

Unavailable

17

PIN, COTTER

7661401

$1.49

18

Master Cylinder, Brake, Rear

1910301

$166.01

19

Bolt

7512247

$2.39

20

Disc, Brake

1910440

Unavailable

21

Washer, Spring

7571620

$7.19

22

Nut, Nylok

7547046

$5.59
