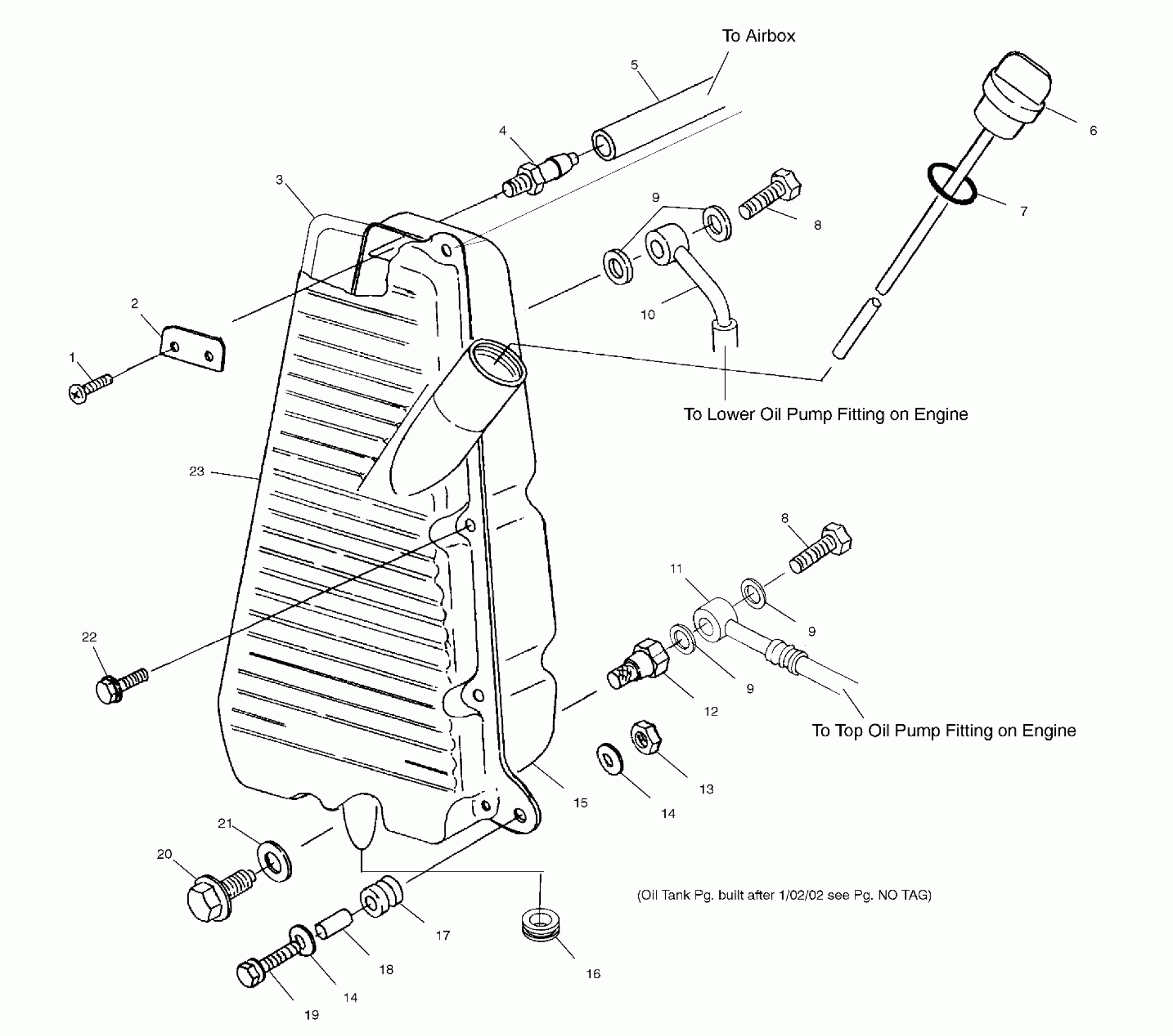

Polaris SPORTSMAN 400 - A02CH42AB OIL TANK (If Built Before 1/02/02) - A02CH42AA (4968536853B12) Diagram

#

Description
Price

1

Screw

7511848

$3.99

2

Plate, Vent, Oil Tank

5211523

$13.99

3

Gasket, Oil Reservoir

5830053

$54.99

4

Fitting

7052163

Unavailable

5

Line, Breather

5411668

Unavailable

6

Dipstick

5434574

$31.99

7

O-Ring

5410889

Unavailable

8

Bolt, Banjo

7517102

Unavailable

8

Bolt, Banjo

7517102

Unavailable

9

Washer, Copper

7555896

$1.49

9

Washer, Copper

7555896

$1.49

9

Washer, Copper

7555896

$1.49

10

Tube, Banjo Return

7052109

Unavailable

11

Tube, Banjo Intake

7052133

Unavailable

12

Screen, Oil Filter

2530020

Unavailable

13

Nut, Nylok

7542122

$1.49

14

Washer, Flat

7558301

$1.49

14

Washer, Flat

7558301

$1.49

15

Tank, Oil, LH

5131785

$131.99

16

Grommet

5411042

Unavailable

17

GROMMET, MOUNTING, RESERVOIR

5410828

$3.99

18

Bushing

5333204

$26.39

19

SCREW

7512130

$3.99

20

Plug, Magnetic

7051524

$27.99

21

Washer, Nylon

5850135

$3.19

22

Screw

7515158

$4.79

23

Tank, Oil, RH

5131255

Unavailable
