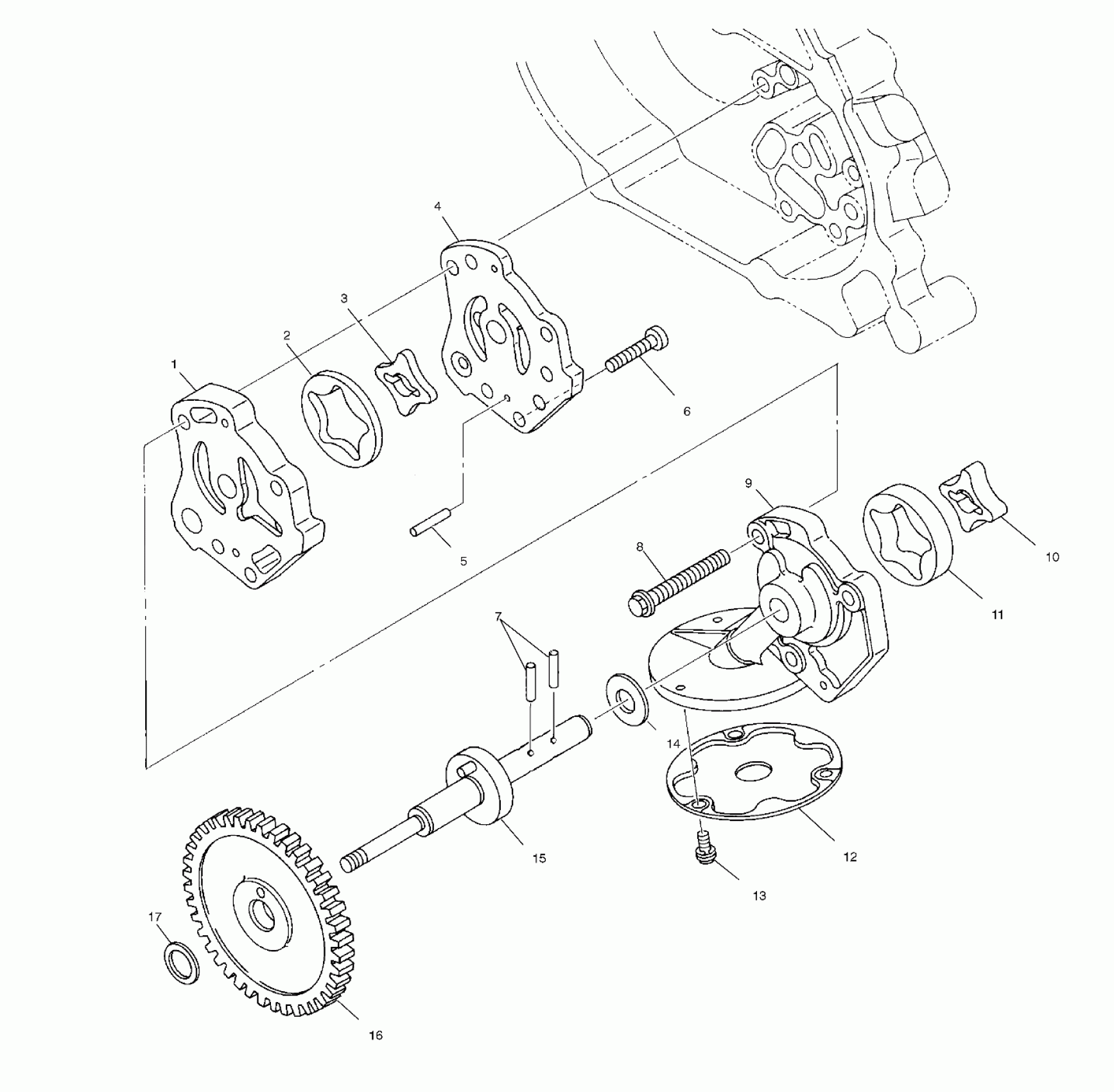

Polaris SPORTSMAN 400 - A02CH42AB OIL PUMP - A02CH42AA (4968536853D09) Diagram

#

Description
Price

1

Oil Pump, Case 2

3084946

$75.40

2

Rotor, Outer (Feed) (Feed)

3084949

$44.51

3

Rotor, Inner (Feed) (Feed)

3084948

Unavailable

4

Asm., Oil Pump (Incl. 1-7,9-15) (Incl. 1-7,9-15)

3084944

Unavailable

4

Oil Pump, Case 1

3084945

Unavailable

5

PIN, DOWEL

3084955

Unavailable

6

SCREW

3085535

Unavailable

7

PIN, DOWEL

3084954

$7.14

8

Bolt and Washer

3084962

Unavailable

9

Oil Pump, Case 3

3084947

$83.33

10

Rotor, Inner (Scav) (Scav)

3084950

$32.37

11

ROTOR, OUTER

3090307

$48.56

12

Oil Strainer Unit

3084956

Unavailable

13

Screw and Washer

3084205

$3.97

14

WASHER

3084953

$3.17

15

Pump Shaft

3084952

$93.08

16

Pump Gear 2

3084958

$88.87

17

Spacer (0.8) (0.8)

3084959

Unavailable

17

Spacer (1.2) (1.2)

3084961

Unavailable

17

Spacer (1.0) (1.0)

3084960

Unavailable
