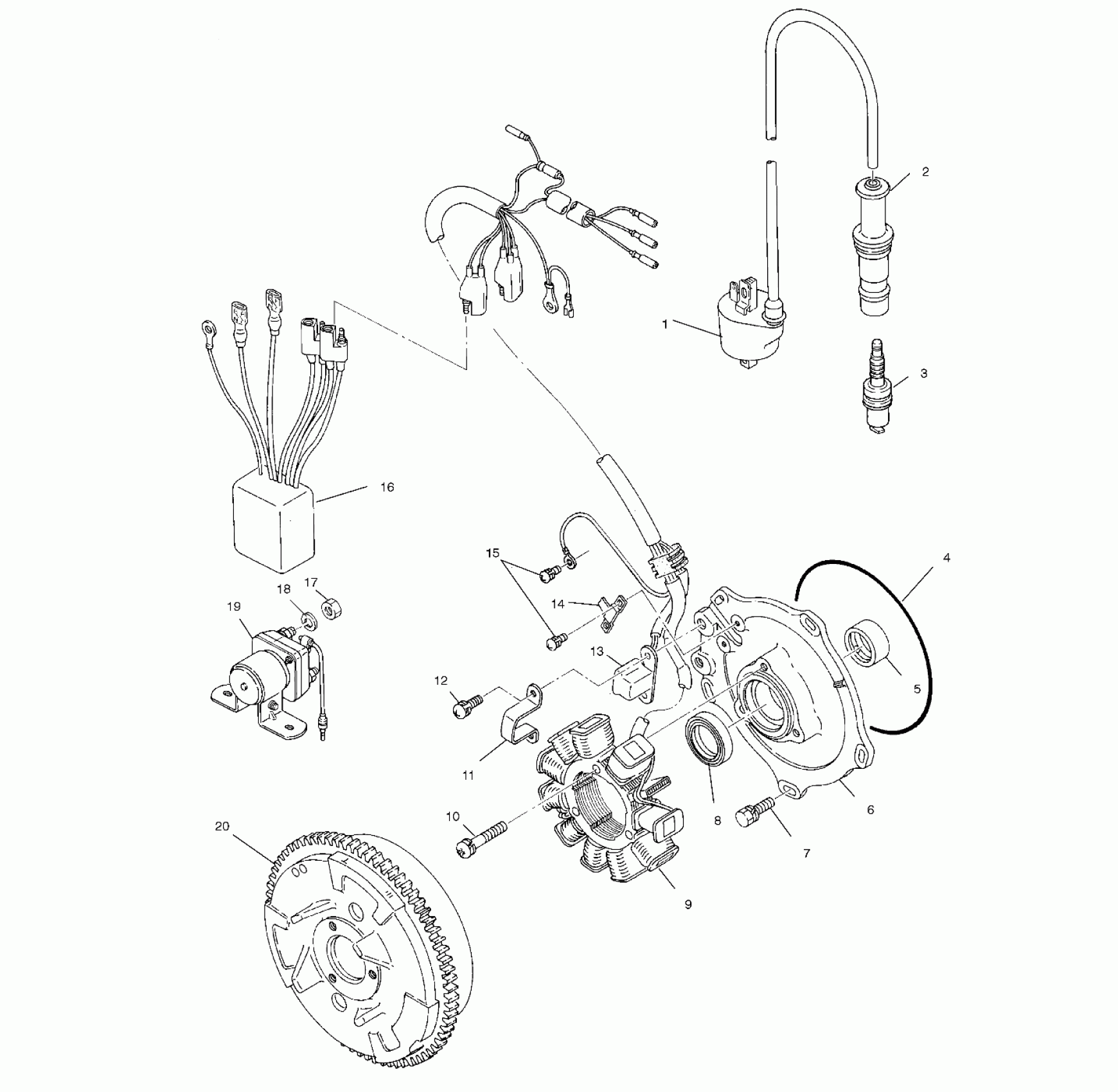

Polaris SPORTSMAN 400 - A02CH42AB MAGNETO - A02CH42AA (4968536853D13) Diagram

#

Description
Price

1

Ignition Coil

3085228

Unavailable

2

CAP, SPARK PLUG

3084980

$59.99

3

Plug, Spark

3070175

$3.99

4

O-RING

3084978

$35.99

5

BEARING, METAL

3084972

Unavailable

6

Plate

3084971

Unavailable

6

Asm., Plate (Incl. 5,6,8-14,15) (Incl. 5,6,8-14,15)

3086859

Unavailable

7

Bolt and Washer

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

Stator (Incl. 13) (Incl. 13)

3086860

Unavailable

10

Screw and Washer

3081342

$1.49

11

Band, Pulse

3085554

Unavailable

12

Screw and Washer

3084976

Unavailable

13

Coil, Pulser

3085360

Unavailable

14

Clamp

3084977

Unavailable

15

Screw and Washer

3081256

$3.19

16

C.D.I. System

3085639

Unavailable

17

Nut

3083073

$2.39

18

Washer, Spring

3080077

$2.39

19

Switch, Magnetic

3085521

$60.70

20

Flywheel, w/Ring Gear

3086857

Unavailable
