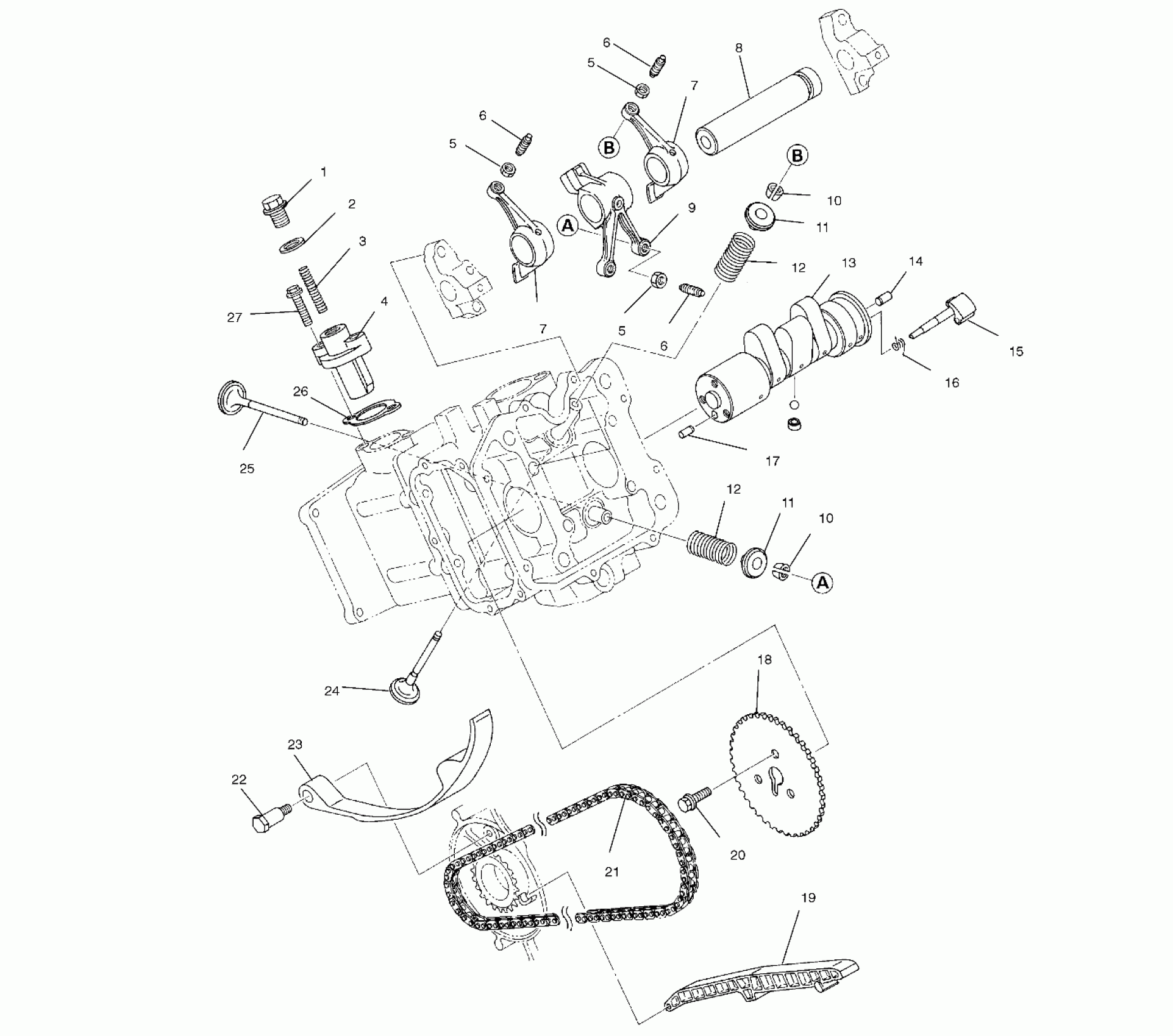

Polaris SPORTSMAN 400 - A02CH42AB INTAKE AND EXHAUST - A02CH42AA (4968536853D04) Diagram

#

Description
Price

1

PLUG

3084845

Unavailable

2

Gasket, Plug

3084920

Unavailable

3

Spring, Tensioner

3086839

Unavailable

4

Asm., Tensioner (Incl. 1-3) (Incl. 1-3)

3086813

Unavailable

5

Nut

3084912

$3.97

5

Nut

3084912

$3.97

5

Nut

3084912

$3.97

6

Screw, Adjusting

3084911

$9.52

6

Screw, Adjusting

3084911

$9.52

6

Screw, Adjusting

3084911

$9.52

7

Asm., Rocker Arm, Intake (Incl. 5,6) (Incl. 5,6)

3084910

$125.46

7

Asm., Rocker Arm, Intake (Incl. 5,6) (Incl. 5,6)

3084910

$125.46

8

SHAFT, ROCKER

3084909

$52.60

9

Asm., Rocker Arm, Exhaust (Incl. 5,6) (Incl. 5,6)

3084913

$166.24

10

VALVE, COLLET

3084908

$4.84

10

VALVE, COLLET

3084908

$4.84

11

Retainer, Spring

3086893

Unavailable

11

Retainer, Spring

3086893

Unavailable

12

Spring, Valve

3084906

$28.32

12

Spring, Valve

3084906

$28.32

13

Camshaft (Incl. 14-17) (Incl. 14-17)

3086212

$379.99

14

PIN, DOWEL

3086838

$7.14

15

LEVER, RELEASE

3085348

Unavailable

16

SPRING, RETURN

3085076

Unavailable

17

PIN, DOWEL

3084899

$7.14

18

SPROCKET 2

3084914

Unavailable

19

GUIDE, CHAIN

3084916

Unavailable

20

Bolt and Washer

3081657

$4.76

21

CHAIN, TIMING

3084915

$101.17

22

Bolt, Pivot Lever

3084924

Unavailable

23

LEVER

3084917

Unavailable

24

VALVE, INTAKE

3085349

$68.79

25

VALVE, EXHAUST

3085412

$93.08

26

Gasket, Tensioner

3084922

Unavailable

27

BOLT, FLANGE

3084874

Unavailable
