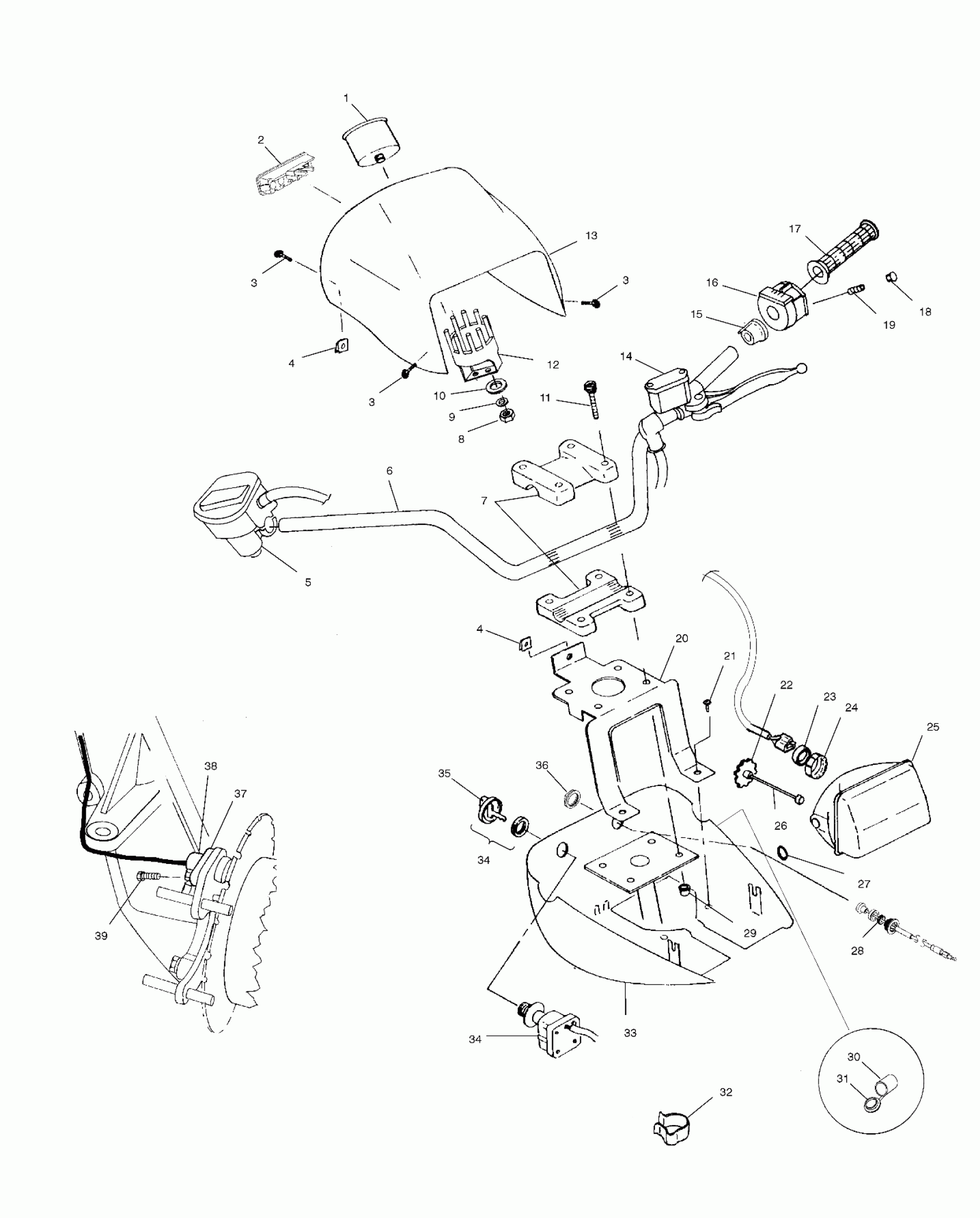

Polaris SPORTSMAN 400 - A02CH42AB HANDLEBAR AND HEADLIGHT POD - A02CH42AA (4968536853C01) Diagram

#

Description
Price

1

Speedometer

3280363

Unavailable

2

Panel, Indicator

4010459

Unavailable

2

Bulb

4010416

$9.59

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

CLIP, SCREW

7670127

$9.59

4

CLIP, SCREW

7670127

$9.59

5

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B10, Ref. 5) (See Controls - Throttle Asm./Cable Pg. B10, Ref. 5)

-------

Unavailable

6

Tube, Handlebar

5242987-067

$114.99

7

Kit, Handlebar Block (Incl. Blocks and 7,11,29) (Incl. Blocks and 7,11,29)

2200774

Unavailable

7

Block, Handlebar Retainer

5630616

Unavailable

8

Nut, Brass

7541933

$4.99

9

Washer, Lock

7555868

Unavailable

10

Washer, Flat

7558212

$1.49

11

SCREW

7515189

Unavailable

12

Clamp, Speedometer

3280291

Unavailable

13

Pod, Headlight, Upper (AC) (AC)

5433763-053

Unavailable

13

Pod, Headlight, Upper (AB) (AB)

5433763-136

Unavailable

13

Pod, Headlight, Upper (AA) (AA)

5433763-359

Unavailable

14

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B4 for details) (See Controls - Master Cylinder/Brake Line Pg. B4 for details)

-------

Unavailable

15

Spacer, Switch, LH

5433903

Unavailable

16

Switch, Handlebar

4010422

$123.54

17

Grip, Handlebar

5433834-070

$24.27

18

Plug

5432952

$5.59

19

SCREW, SET

7517625

$4.79

20

Bracket, Pod Mounting

5244969-067

$44.99

21

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

22

KNOB, ADJUSTING

4032079

$23.99

23

BOOT, HEADLIGHT

5411120

$27.99

24

Collar, Locking

4032077

$27.99

25

KIT-HARNESS,HEADLIGHT

2204143

$71.99

25

BULB-HEADLIGHT,50 WATT

4010253

$34.99

25

Asm. Headlamp

2410268

$109.27

26

Rod, Adjusting

4032078

Unavailable

27

O-RING

5410163

$1.60

28

Cable, Choke

7081008

$79.99

29

Nut, Nylok

7542122

$1.49

30

Receptacle, Pod Mount, 12V

4010283

Unavailable

31

Cap, Rubber

5411744

Unavailable

32

Clip, Cable Retaining

7080631

$6.29

33

Pod, Headlight, Lower

5433762-070

$114.99

34

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

34

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

34

Switch, Ignition (Incl. Key) (Incl. Key)

4010390

Unavailable

34

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

34

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

34

Switch, Ignition (Incl. Key) (Incl. Key)

4010390

Unavailable

35

KEY SWITCH KEY COVER

5433534

$12.35

36

Nut, Choke

7080922

$3.19

37

Sensor

4010298

$111.99

38

CAP

5132382

$23.99

39

Screw

7517658

$5.59
