Description

Price

-

Asm., Gearcase (Incl. 1-46 and all except Ref. 6 on Gearcase/Cases and Snorkel Pg. C12) (Incl. 1-46 and all except Ref. 6 on Gearcase/Cases and Snorkel Pg. C12)

1341360

Unavailable

1

Nut

3233055

Unavailable

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

Bellcrank, HLR

3233153

$27.99

3

Bellcrank, HLR

3233153

$27.99

4

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

4

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

5

Washer

3233040

$9.59

5

Washer

3233040

$9.59

6

O-Ring

3233548

$27.99

6

O-Ring

3233548

$27.99

7

Shaft, Shift

3233774

Unavailable

8

Fork, Shift, Low

3233775

Unavailable

9

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

10

Shaft, Input, 15T, HCR

3233571

Unavailable

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

12

WASHER, THRUST

3233176

$9.59

12

WASHER, THRUST

3233176

$9.59

13

Gear, 30T

3233744

Unavailable

14

Engagement Dog, High

3233743

Unavailable

15

Ring, Retaining

3233720

$9.59

15

Ring, Retaining

3233720

$9.59

15

Ring, Retaining

3233720

$9.59

16

Chain, Silent, 34P

3233036

Unavailable

17

Sprocket, 24T

3233719

$109.27

18

Shaft, Reverse, HCR

3233742

$174.60

19

Shaft, Shift

3233661

Unavailable

20

BEARING, NEEDLE

3233718

$35.99

20

BEARING, NEEDLE

3233718

$35.99

20

BEARING, NEEDLE

3233718

$35.99

21

Gear, 36T

3233745

Unavailable

22

Screw

3233747

Unavailable

22

Screw

3233747

Unavailable

23

Bracket, Interlock

3233309

$20.63

24

Spring, Interlock

3233189

Unavailable

25

Pin, Interlock

3233308

Unavailable

25

Pin, Interlock

3233308

Unavailable

26

Ring, Retaining

3233177

$6.39

26

Ring, Retaining

3233177

$6.39

27

Engagement Dog, Low

3233732

$169.98

28

Fork, Shift, H/R

3233664

Unavailable

29

Pinion, 16T, Spiral Bevel

3233365

Unavailable

30

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

31

RING, RETAINING

3233364

$6.39

32

Cover, Bearing, Center Drive

3233263

Unavailable

33

Washer

7552901

$1.49

34

Screw

3233262

$1.83

35

Gear, Output, 100T, HCR

3233360

Unavailable

36

Deflector, Oil

3233669

$7.94

37

Screw

3233282

Unavailable

38

Shaft, Center Drive

3233715

Unavailable

39

BEARING

3233020

$47.99

40

Chain, Silent

3233430

Unavailable

41

SPRING, TORSION

3233431

$23.99

42

PIN, DOWEL

3233432

$7.19

43

Chain Tensioner, Shoe

3233433

$27.99

44

Chain Tensioner, Cam

3233434

$12.79

45

Sprocket, 60T

3233670

Unavailable

46

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

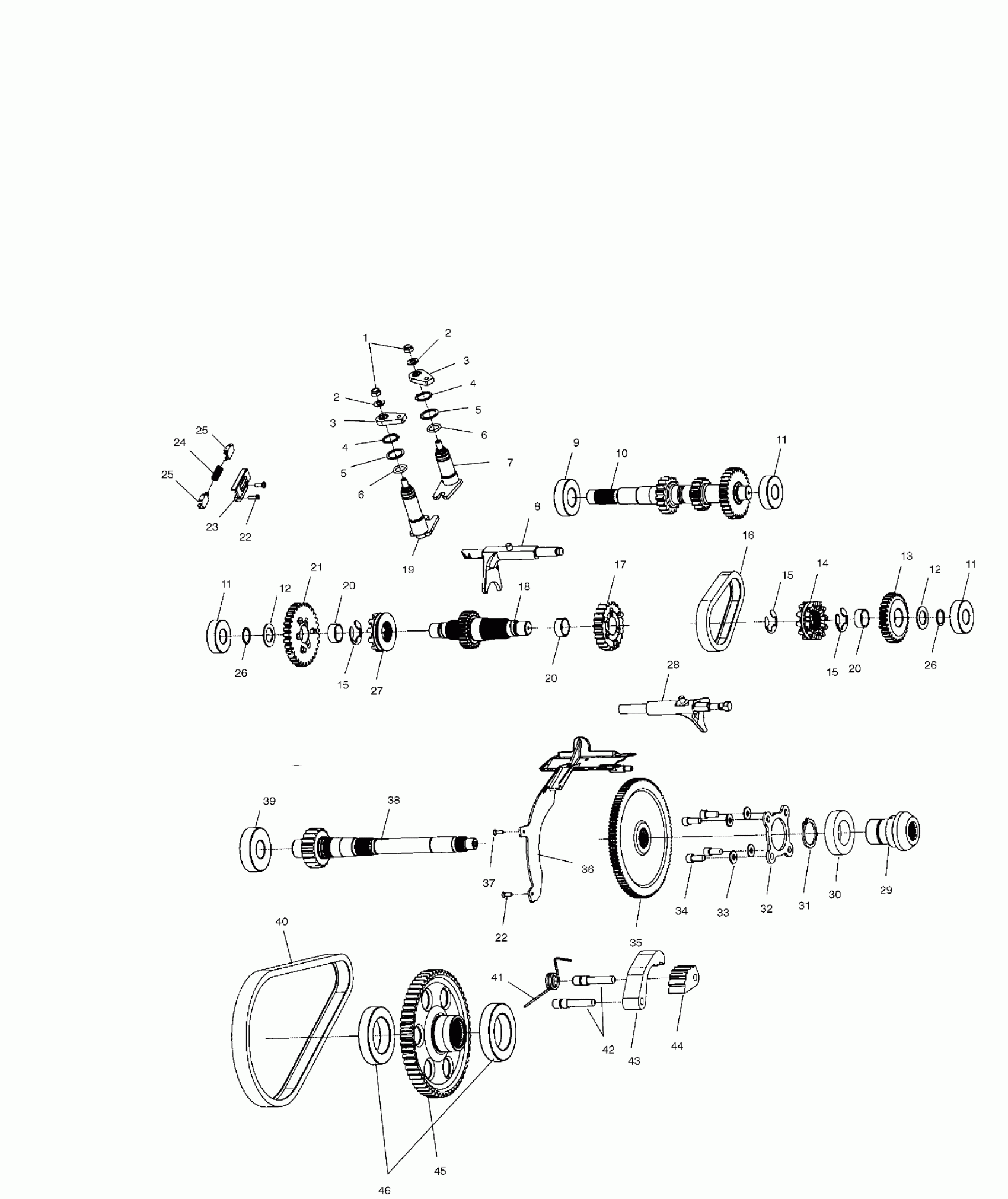

Polaris SPORTSMAN 400 - A02CH42AB GEARCASE (Internal Components) - A02CH42AA (4968536853C13) Diagram

Asm., Gearcase (Incl. 1-46 and all except Ref. 6 on Gearcase/Cases and Snorkel Pg. C12) (Incl. 1-46 and all except Ref. 6 on Gearcase/Cases and Snorkel Pg. C12)

Nut

Washer

Washer

Bellcrank, HLR

Bellcrank, HLR

RING,RETAINING BASIC,EXTERNAL 0.75

RING,RETAINING BASIC,EXTERNAL 0.75

Washer

Washer

O-Ring

O-Ring

Shaft, Shift

Fork, Shift, Low

BEARING, BALL, 6205 C3 25X52X15

Shaft, Input, 15T, HCR

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

WASHER, THRUST

WASHER, THRUST

Gear, 30T

Engagement Dog, High

Ring, Retaining

Ring, Retaining

Ring, Retaining

Chain, Silent, 34P

Sprocket, 24T

Shaft, Reverse, HCR

Shaft, Shift

BEARING, NEEDLE

BEARING, NEEDLE

BEARING, NEEDLE

Gear, 36T

Screw

Screw

Bracket, Interlock

Spring, Interlock

Pin, Interlock

Pin, Interlock

Ring, Retaining

Ring, Retaining

Engagement Dog, Low

Fork, Shift, H/R

Pinion, 16T, Spiral Bevel

BEARING-BALL 6007 C3 35 X 62 X 14

RING, RETAINING

Cover, Bearing, Center Drive

Washer

Screw

Gear, Output, 100T, HCR

Deflector, Oil

Screw

Shaft, Center Drive

BEARING

Chain, Silent

SPRING, TORSION

PIN, DOWEL

Chain Tensioner, Shoe

Chain Tensioner, Cam

Sprocket, 60T

BEARING-BALL 6010 C3 50 X 80 X 10
