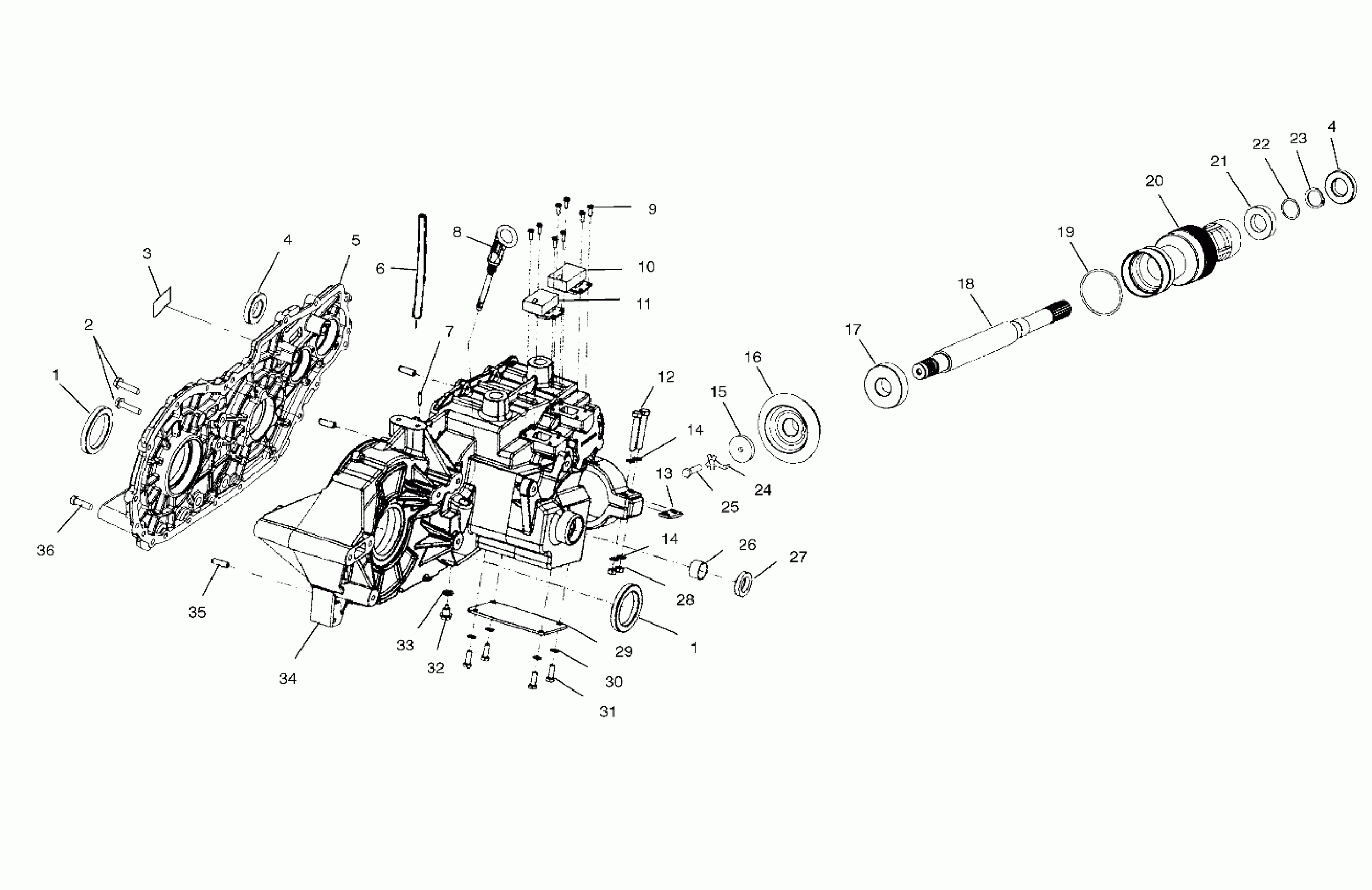

Polaris SPORTSMAN 400 - A02CH42AB GEARCASE (Cases and Snorkel) - A02CH42AA (4968536853C12) Diagram

#

Description
Price

-

Asm., Gearcase (See Gearcase/Internal Components Pg. C14) (See Gearcase/Internal Components Pg. C14)

-------

Unavailable

1

Seal

3233256

Unavailable

1

Seal

3233256

Unavailable

2

Screw

3233252

$5.27

3

Decal, Switch

3233636

Unavailable

4

Seal

3233248

$30.88

4

Seal

3233248

$30.88

5

Gearcase, LH

3233778

Unavailable

6

LINE, FUEL

8360009-600

Unavailable

7

Vent, Tube

3233037

Unavailable

8

Dipstick

3233475

Unavailable

9

Screw w/Washer

3233749

$5.59

10

Switch, 2 Position

3233617

Unavailable

11

Switch, 3 Position

3233635

Unavailable

12

Screw

3233442

$2.23

13

Spacer, Snorkel Clamp

3233779

$3.27

14

Washer (See Gearcase - Internal Components Pg. C14, Ref. 2) (See Gearcase - Internal Components Pg. C14, Ref. 2)

-------

Unavailable

14

Washer (See Gearcase - Internal Components Pg. C14, Ref. 2) (See Gearcase - Internal Components Pg. C14, Ref. 2)

-------

Unavailable

15

Washer

3233352

$1.83

16

Gear, 31T, Snorkel

3233476

Unavailable

17

Bearing, Ball (See Gearcase -Internal Components Pg. C14, Ref. 39) (See Gearcase -Internal Components Pg. C14, Ref. 39)

-------

Unavailable

18

Shaft, Drive, Snorkel

3233446

Unavailable

19

O-Ring

3233302

Unavailable

20

Tube, Snorkel

3233750

$189.59

21

Bearing, Ball

3233305

$31.99

22

Spacer (1.180x.995x.008) NOTE: Ref. 22 indicates choices, may also be used in combinations. (1.180x.995x.008) NOTE: Ref. 22 indicates choices, may also be used in combinations.

3233357

$21.99

22

Spacer (1.180x.995x.040) (1.180x.995x.040)

3233355

$2.63

22

Spacer (1.180x.995x.010) (1.180x.995x.010)

3233353

$2.55

22

Spacer (1.180x.995x.025) (1.180x.995x.025)

3233354

$2.55

22

Spacer (1.180x.995x.005) (1.180x.995x.005)

3233356

$2.62

23

RING, RETAINING

3233306

$4.79

24

Lock, Bolt

3233444

$2.39

25

Bolt

3233351

$1.99

26

Bushing

3233292

$31.99

27

Seal

3233293

Unavailable

28

Nut, FLEXLOC

3233291

$3.03

29

Stamping, Cover Plate

3233294

$11.59

30

Washer

3233295

$1.99

31

Screw

3233296

Unavailable

32

Plug, Flange

3233777

$34.99

33

Washer

3233254

$7.99

34

Gearcase, RH

3233776

$984.99

35

PIN, DOWEL

3233247

$7.19

36

Screw

3233026

$6.46
