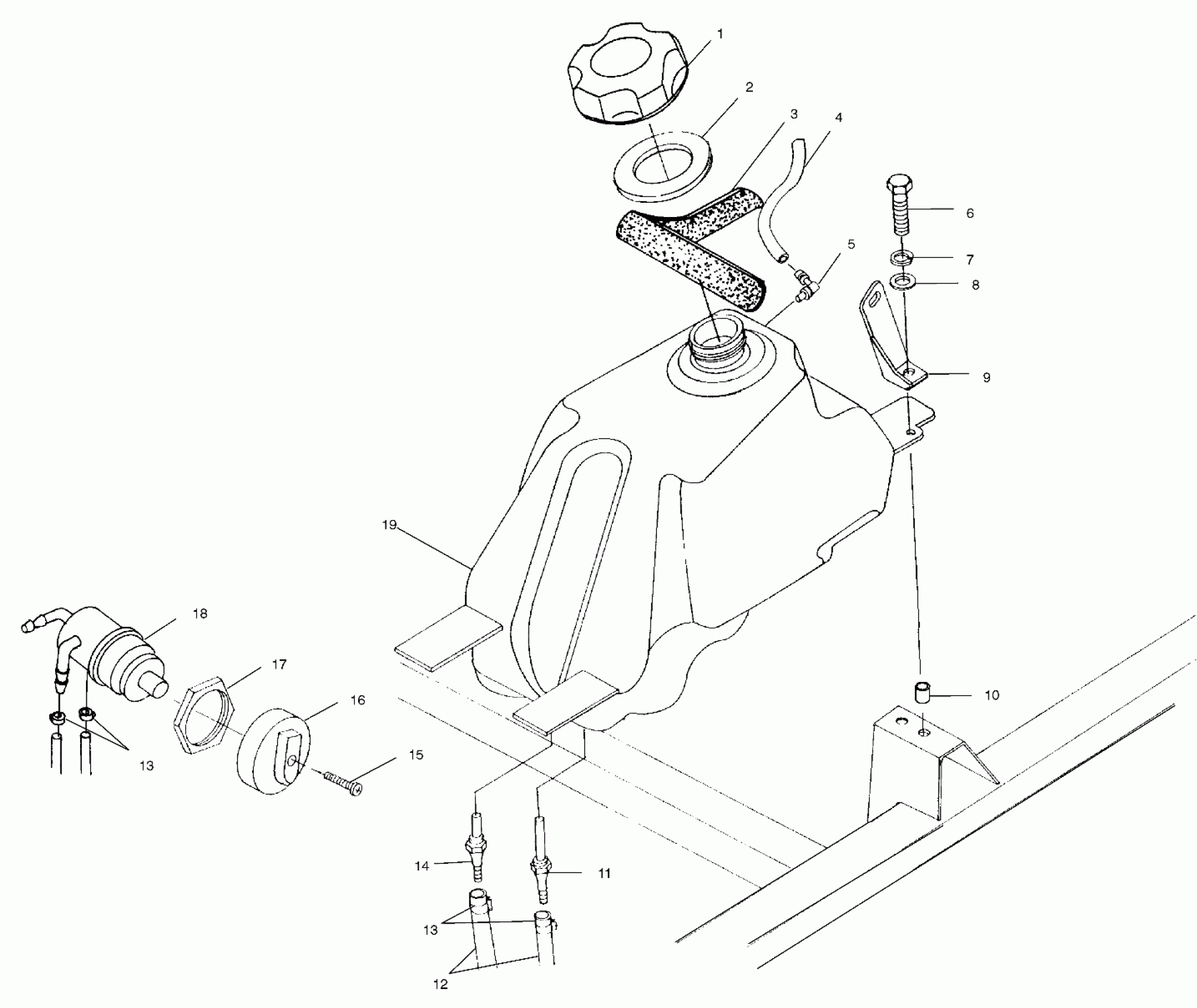

Polaris SPORTSMAN 400 - A02CH42AB FUEL TANK - A02CH42AA (4968536853A11) Diagram

#

Description
Price

1

Cap, Gas Tank (Incl. 2) (Incl. 2)

5433687

$20.22

2

Gasket, Fuel Cap

5812123

$5.65

3

Seal, Foam

5812210

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Vent, Tank

5431053

$24.27

6

Bolt

7512247

Unavailable

7

WASHER, SPRING LOCK

7552801

$1.59

8

Washer, Flat

7558301

$1.19

9

Bracket, Mounting, Rear, LH (If built after 7/23/01)

5246069-067

Unavailable

9

Bracket, Mounting, Rear, LH (If built before 7/23/01)

5222154-067

Unavailable

9

Bracket, Mounting, Rear, RH (If built before 7/23/01)

5222155-067

Unavailable

9

Bracket, Mounting, Rear, RH (If built after 7/23/01)

5246070-067

$49.99

10

Nutsert

7547069

$3.97

11

Fitting, Fuel Outlet, Main

7052150

$27.78

12

Line, Fuel

8450040-600

Unavailable

13

HOSE CLAMP, RED

7080003

$1.19

13

HOSE CLAMP, RED

7080003

$1.19

14

Fitting, Fuel Outlet, Reserve

7052149

$23.81

15

Screw

7517505

$1.59

16

Knob, Fuel Valve

5432559

$11.32

17

Nut, Fuel Valve

5432733

Unavailable

18

Valve, 3-Way

7052161

$44.51

19

Asm., Fuel Tank (Incl. 12,15) (Incl. 12,15)

2520144

Unavailable
