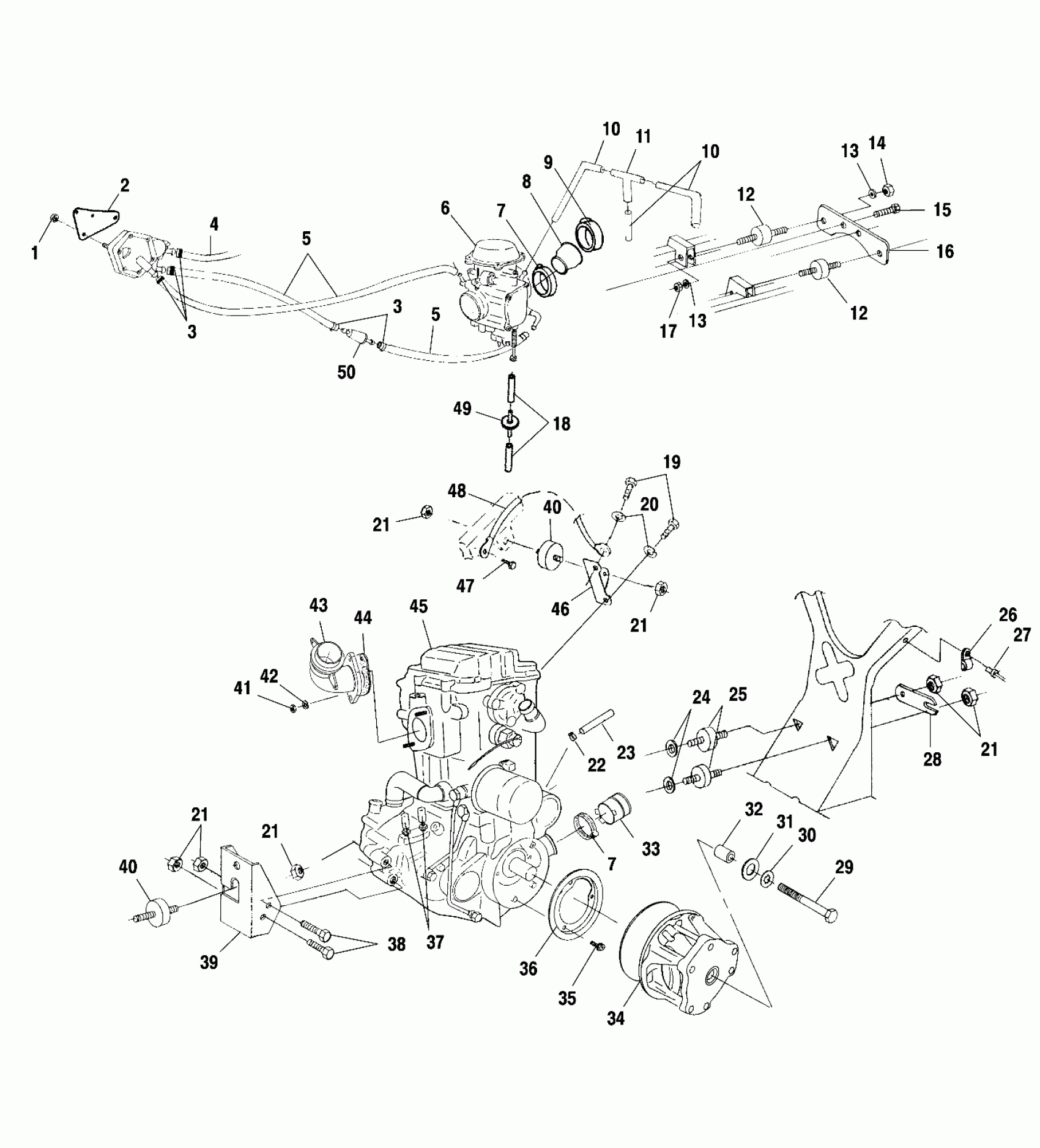

Polaris SPORTSMAN 400 - A02CH42AB ENGINE MOUNTING - A02CH42AA (4968536853A13) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

Strap, Fuel Pump

5243829

Unavailable

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

4

Hose, 1.75" Long

5811490

Unavailable

5

Line, Fuel

8450040-600

Unavailable

5

Line, Fuel

8450040-600

Unavailable

6

ASM., CARBURETOR (See Carburetor Pg. D8, Ref. 9)

-------

Unavailable

7

Clamp, Narrow Band

7080413

$3.19

7

Clamp, Narrow Band

7080413

$3.19

8

Boot, Carburetor

5410995

Unavailable

9

Clamp, Narrow Band

7080511

$4.79

10

Line, Fuel

8450003-1525

Unavailable

10

Line, Fuel

8450003-1525

Unavailable

11

FITTING, TEE

7052075

$9.59

12

Mount, Rubber

3110032

$7.99

12

Mount, Rubber

3110032

$7.99

13

Washer, Split Lock

7552605

$5.27

13

Washer, Split Lock

7552605

$5.27

14

NUT

7542105

$3.99

15

SCREW AND WASHER (See Carburetor Pg. D8, Ref. 8)

-------

Unavailable

16

Strap, Carburetor Mount

5211626-067

Unavailable

17

Nutsert

7547069

$3.99

18

LINE, FUEL

8360009-600

Unavailable

19

BOLT

7512315

$4.79

20

WASHER, SPRING LOCK

7552901

$1.49

21

NUT, FLANGE LOCK

7547108

$4.79

21

NUT, FLANGE LOCK

7547108

$4.79

21

NUT, FLANGE LOCK

7547108

$4.79

21

NUT, FLANGE LOCK

7547108

$4.79

21

NUT, FLANGE LOCK

7547108

$4.79

22

Clamp, Spring Hose

7080694

$6.53

23

HOSE, BREATHER (See Air Box Pg. A12, Ref. 17)

-------

Unavailable

24

Washer

7555815

$3.99

25

Mount, Rubber, Front

3110046

Unavailable

26

Clamp, Nylon

7080539

$4.79

27

Rivet

7621462

$1.49

28

Strap, Frame Support

5224658-067

Unavailable

29

BOLT

7512566

$30.79

30

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

31

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

32

BUSHING-.437 X.770 X.50

5430261

$7.19

33

Boot, Clutch Intake

5410421

$11.19

34

ASM., DRIVE CLUTCH, BRAKING (See Drive Clutch Pg. C3, Ref. 14)

-------

Unavailable

35

SCREW AND WASHER (See Crankcase Pg. D1, Ref. 6)

-------

Unavailable

36

BRACKET RETAINER, SEAL (See Clutch Cover Pg. C5, Ref. 21)

-------

Unavailable

37

CLAMP-HOSE,.875-SS

7080474

$8.40

38

SCREW

7515417

$4.79

39

Mount, Engine, Front

5241150

Unavailable

40

Mount, Rubber, Top

3110044

Unavailable

40

Mount, Rubber, Top

3110044

Unavailable

41

NUT (See Cylinder Pg. D2, Ref. 23)

-------

Unavailable

42

WASHER (See Cylinder Pg. D2, Ref. 22)

-------

Unavailable

43

Manifold, Black

1261043-029

Unavailable

44

GASKET, EXHAUST (See Cylinder Pg. D2, Ref. 34)

-------

Unavailable

45

Engine, Short Block (EH42PLE05) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required fo

3087023

Unavailable

46

Mount, Engine, Top

5241453

$7.99

47

SCREW

7512232

$1.49

48

Cable, Ground, Engine

4010132

Unavailable

49

Valve, Check Vent

7051011

Unavailable

50

FILTER

2530009

$5.65
