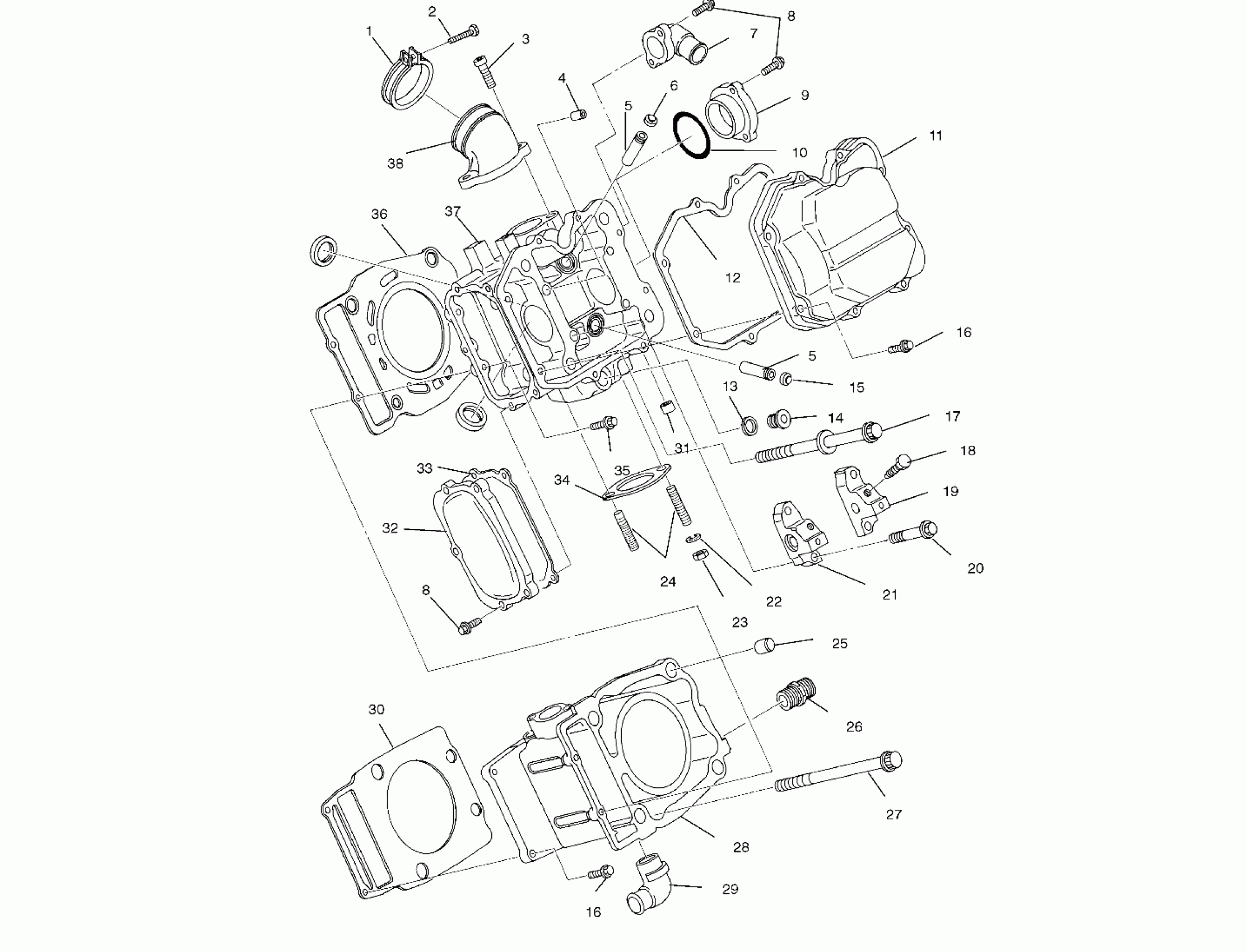

Polaris SPORTSMAN 400 - A02CH42AB CYLINDER - A02CH42AA (4968536853D02) Diagram

#

Description
Price

1

Asm., Band, Adapter (Incl. 2) (Incl. 2)

3083166

$19.84

2

SCREW

3081497

$2.39

3

BOLT, SOCKET HEAD

3081330

$3.99

4

Pin, Straight

3084857

Unavailable

5

GUIDE, VALVE

3084994

$39.99

5

GUIDE, VALVE

3084994

$39.99

6

Seal, Intake Valve

3084858

$13.59

7

Adapter, Water Out

3085072

Unavailable

8

BOLT, FLANGE

3084877

Unavailable

8

BOLT, FLANGE

3084877

Unavailable

9

ADAPTER, CAMSHAFT

3084866

Unavailable

10

O-RING

3084867

$23.99

11

COVER, ROCKER

3085073

$75.99

12

GASKET, ROCKER COVER

3085074

$31.99

13

GASKET

3084861

$4.79

14

PLUG

3084860

$7.19

15

SEAL, EXHAUST VALVE

3084859

$23.99

16

BOLT, FLANGE

3084874

Unavailable

16

BOLT, FLANGE

3084874

Unavailable

17

Bolt, Cylinder Head

3084875

Unavailable

18

BOLT, ROCKER SHAFT

3085854

Unavailable

19

SUPPORT, VALVE ROCKER SHAFT

3084864

Unavailable

20

BOLT

3084876

$4.79

21

SUPPORT, VALVE ROCKER SHAFT

3084863

$91.99

22

Washer, Lock

3080530

$3.19

23

Nut

3080285

Unavailable

24

Stud

3085326

Unavailable

25

Pin, Straight

3084838

Unavailable

26

Union, Oil Pump

3084849

Unavailable

27

BOLT, FLANGE

3084873

Unavailable

28

Cylinder (Incl. 29,31) (Incl. 29,31)

3087062

Unavailable

29

Pipe 2, Elbow

3084130

Unavailable

30

Gasket, Cylinder

3085370

$38.60

31

PLUG, BLIND

3084862

Unavailable

32

Cover, Camshaft

3084868

Unavailable

33

Gasket, Cover Cam

3086200

Unavailable

34

Gasket, Exhaust

3085075

$39.99

35

Bolt, Flange

3084215

Unavailable

36

GASKET, HEAD

3085337

$55.99

37

Cylinder Head (Incl. 4-6,13-15,24,31) (Incl. 4-6,13-15,24,31)

3085527

$712.79

38

ADAPTER

3084879

Unavailable
