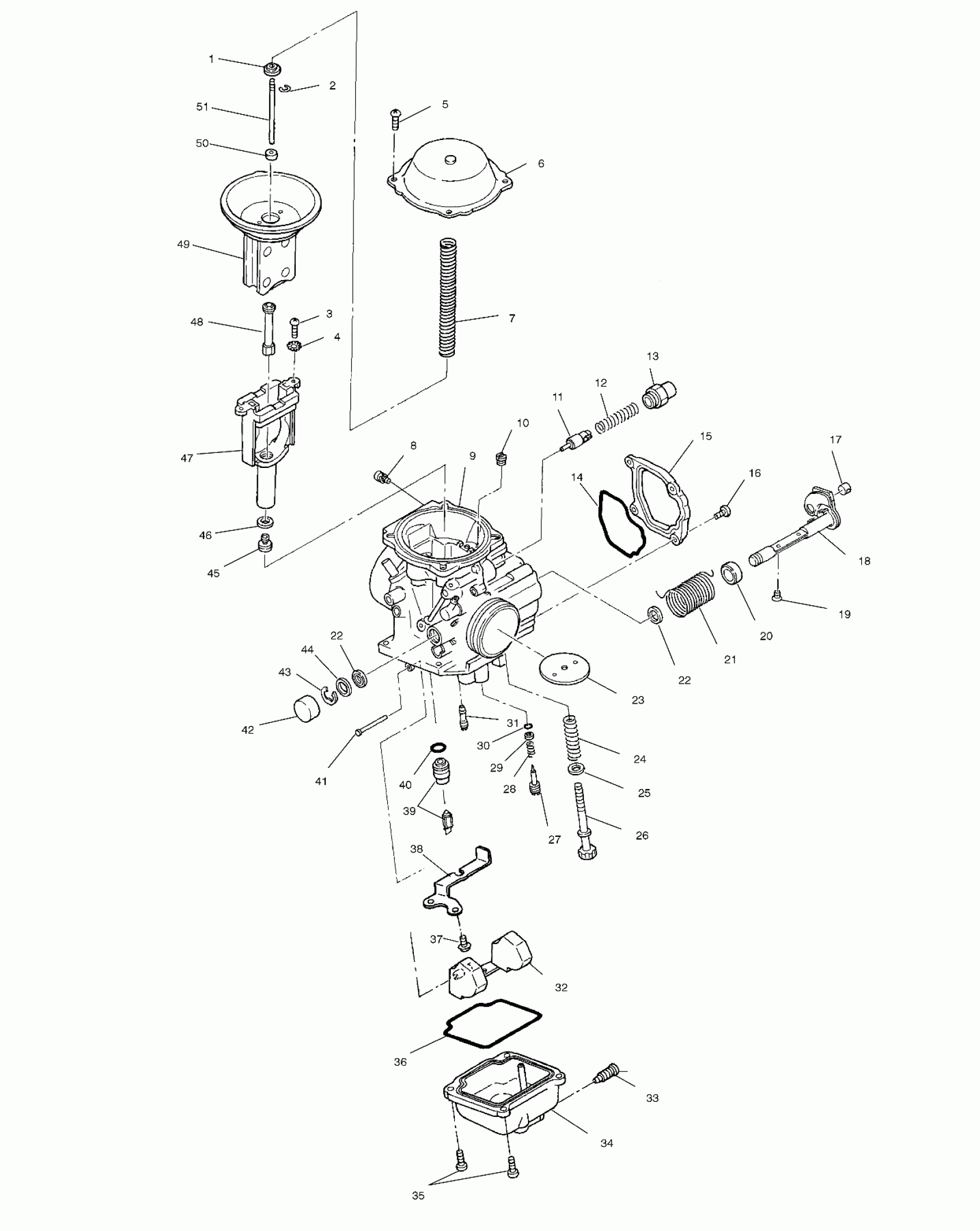

Polaris SPORTSMAN 400 - A02CH42AB CARBURETOR - A02CH42AA (4968536853D07) Diagram

#

Description
Price

1

RING

3130507

$5.65

2

E-RING

3130508

$6.46

3

SCREW

3130541

$11.11

4

WASHER, SPRING

3130540

$4.76

5

SCREW-MIKUNI C2=0408

3130592

$1.59

6

Cover

3130503

$68.79

7

SPRING

3130505

$28.32

8

Screw and Washer

3084205

$3.97

9

Asm., Carburetor (Incl. 1-13,18-51) (Incl. 1-13,18-51)

3131310

Unavailable

10

Air Jet (#160) (#160)

3130625

$14.56

11

Plunger

3130593

$40.46

12

SPRING

3130538

$5.65

13

Guide Holder

3130199

$28.32

14

O-Ring

3130512

Unavailable

15

COVER

3130511

$54.99

16

SCREW

3130535

$7.14

17

Cable Guide

3130543

$32.37

18

Throttle Shaft

3130513

$79.37

19

SCREW

3130501

$3.97

20

Ring

3130514

$7.27

21

SPRING

3130589

$28.32

22

SEAL

3130515

$12.13

22

SEAL

3130515

$12.13

23

Throttle Valve (100) (100)

3130502

$62.92

24

Spring

3130544

$10.51

25

Ring

3130545

$12.13

26

Screw, Adjust

3130546

$13.75

27

Adjuster

3130524

$23.81

28

Spring

3130525

$5.65

29

Washer

3130523

$2.38

30

O-Ring

3130522

$5.65

31

Jet, Pilot (#40) (#40)

3130624

$28.32

32

Float

3130529

$99.74

33

SCREW

3130521

$10.32

34

Float Body

3130590

$119.98

35

SCREW

3130520

$1.59

36

O-RING

3130532

$32.37

37

SCREW

3130591

$3.97

38

PLATE

3130594

$32.37

39

Valve, Needle (1.5) (1.5)

3131360

$61.74

40

O-RING

3130533

$5.65

41

PIN, FLOAT

3130361

$9.70

42

CAP

3130519

$10.51

43

E-RING

3130518

$1.60

44

PACKING

----

Unavailable

45

Main Jet (#167.5) (#167.5)

3131144

$8.89

46

WASHER

3130014

$1.59

47

Jet Block

3130504

$64.75

48

Jet, Needle (Q-0) (Q-0)

3131311

Unavailable

49

Diaphragm

3130732

$156.74

50

RING

3130752

$5.65

51

Jet Needle (5F14) (5F14)

3131312

Unavailable
